Allied Telesis AT-9724TS User Manual
Page 159

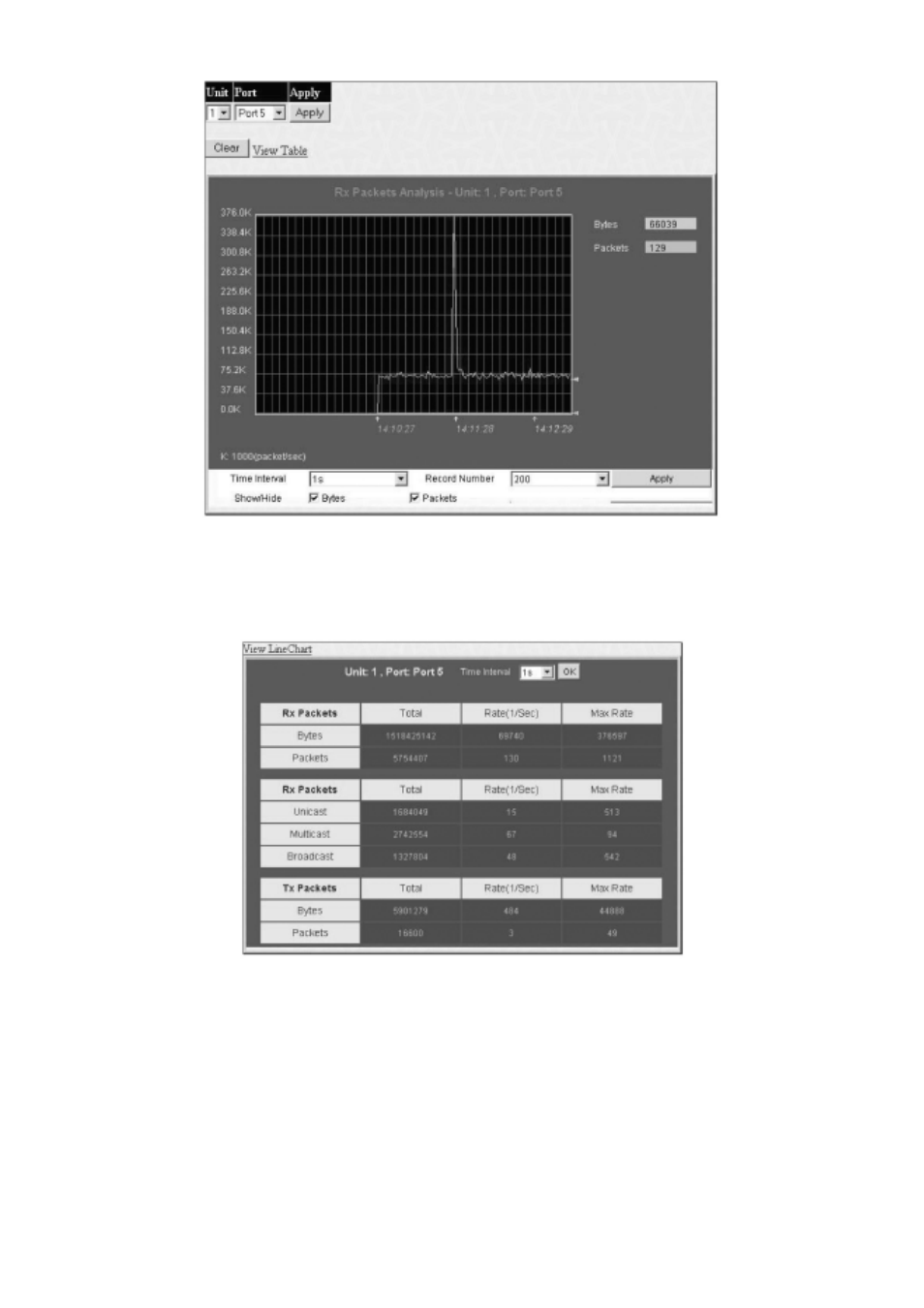

Figure 9- 3. Rx Packets Analysis window (line graph for Bytes and Packets)
To view the Received Packets Table, click the link View Table, which will show the following table:
Figure 9- 4. Rx Packets Analysis window (table for Bytes and Packets)
The following fields may be set or viewed:
158
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch
