Parameter Description
Current Box ID The current Box ID of the Master switch in the stack.
New Box ID The new box ID of the Master switch in the stack.
Box Type The user may choose the model name of the Master switch in a stack to be the main configuring switch of that
stack.
Priority Displays the priority ID of the Switch.The lower the number, the higher the priority.The box (switch) with the
lowest priority number in the stack is the Master switch.
Information configured in this screen may be found in the Monitoring folder under Stack Information.
6-4 Port Configuration
This section contains information for configuring various attributes and properties for individual physical ports, including port speed and address learning. Clicking
on Port Configurations in the Configuration menu will display the following window for the user:

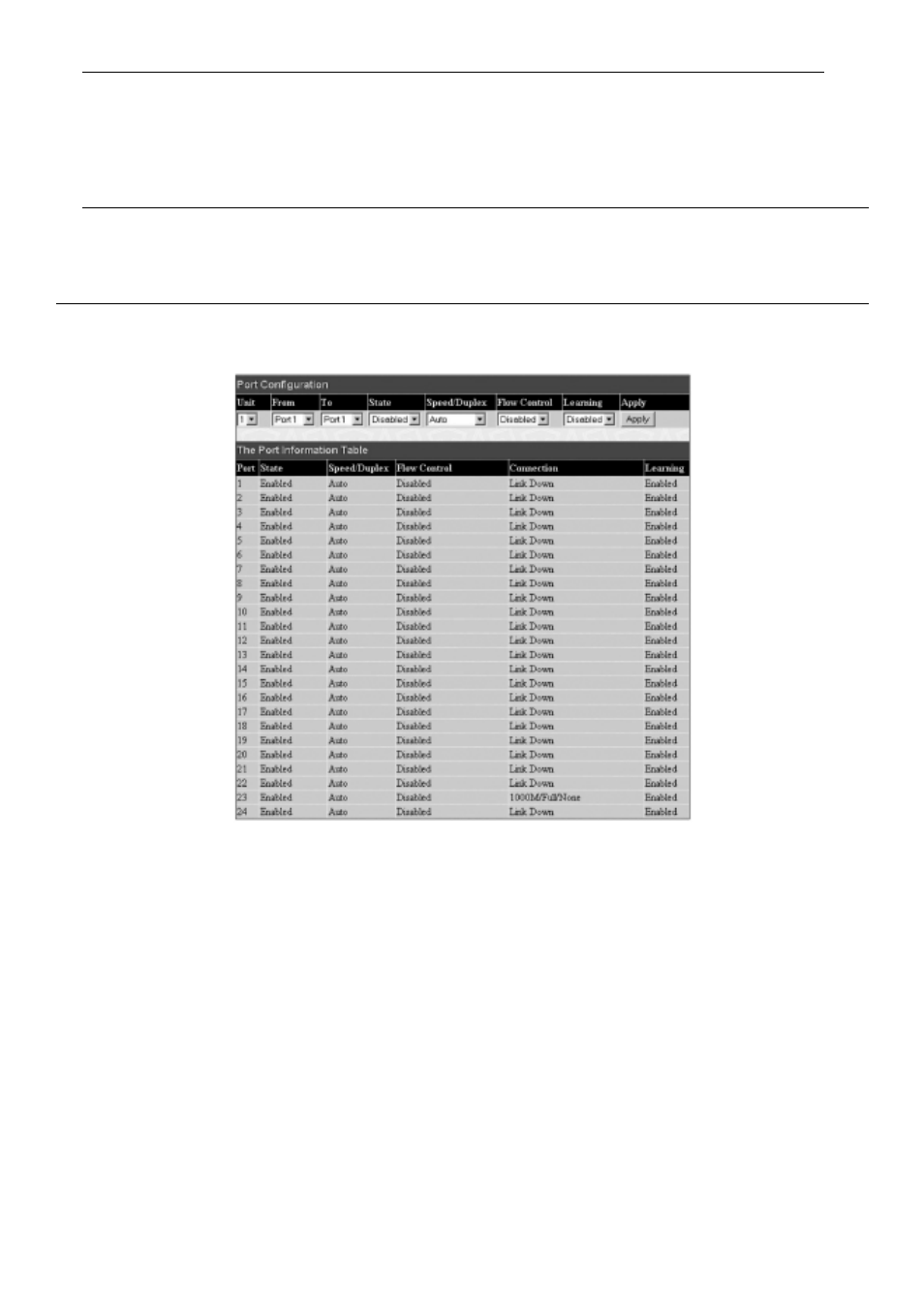

Figure 6- 5. Port Configuration and The Port Information Table window
To configure switch ports:
1. Choose the port or sequential range of ports using the From…To… port pull-down menus, and the Unit ID of the Switch to be configured.
2. Use the remaining pull-down menus to configure the parameters described below:
32 Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch
