Browse Routing Table
The Browse Routing Table window may be found in the Monitoring menu in the Layer 3 Feature folder.This screen shows the current IP routing
table of the Switch.To find a specific IP route, enter an IP address into the Destination Address field along with a proper subnet mask into the Mask field
and click Find.

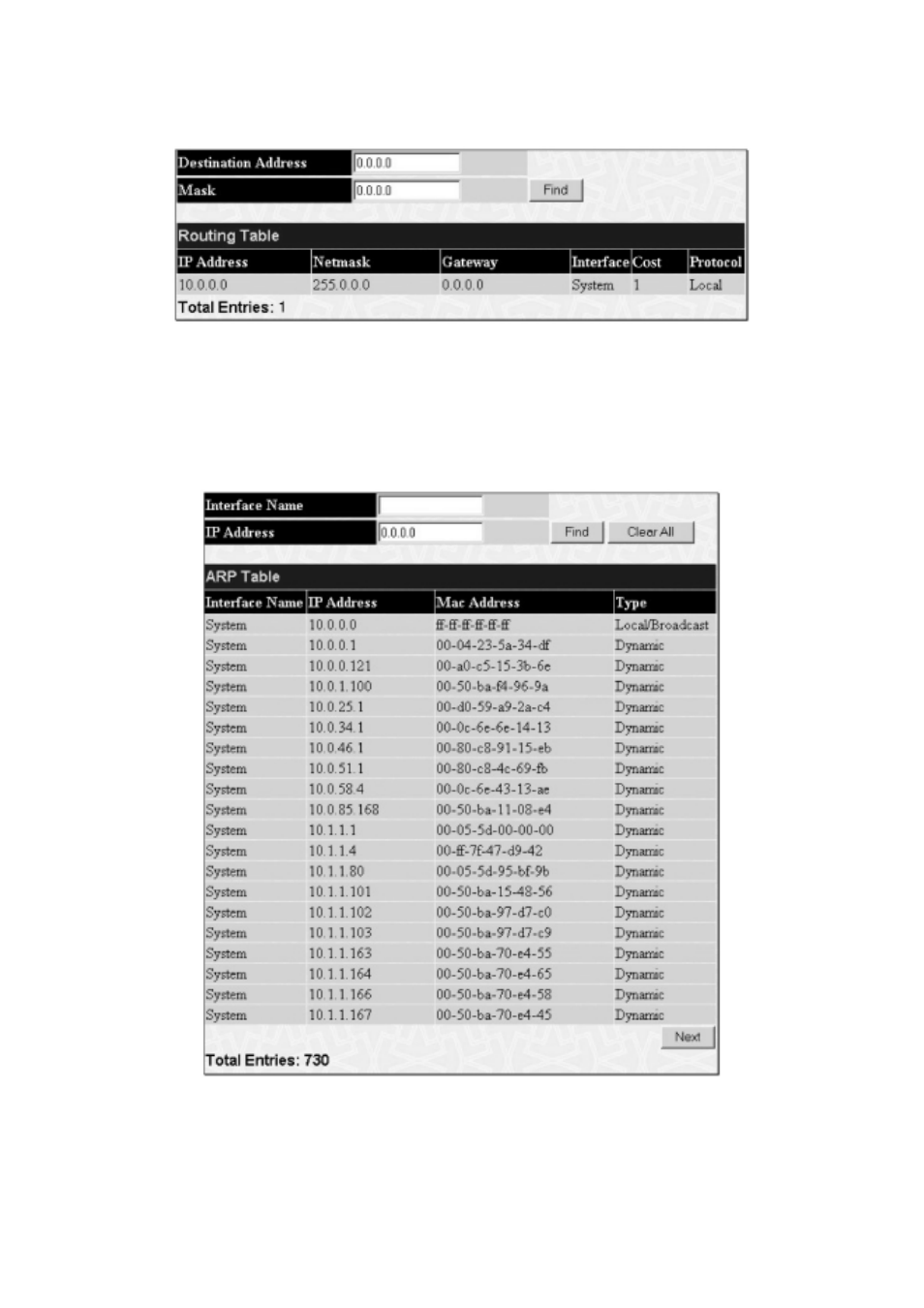

Figure 9- 30. Browse Routing Table window
Browse ARP Table
The Browse ARP Table window may be found in the Monitoring menu in the Layer 3 Feature folder.This window will show current ARP entries on
the Switch.To search a specific ARP entry, enter an interface name into the Interface Name or an IP address and click Find.To clear the ARP Table, click
Clear All.
Figure 9- 31. Browse ARP Table window
Browse IP Multicast Forwarding Table
The Browse IP Multicast Forwarding Table window may be found in the Monitoring menu in the Layer 3 Feature folder.This window will show
current IP multicasting information on the Switch.To search a specific entry, enter an multicast group IP address into the Multicast Group field or a Source
IP address and click Find.
179 Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch
