Protocol Type Header in Hexadecimal Form
IP over Ethernet 0x0800
IPX 802.3 0xFFFF
IPX 802.2 0xE0E0
IPX SNAP 0x8137
IPX over Ethernet2 0x8137
DecLAT 0x6000
DecOther 0x6009
SNA 802.2 0x0404
NetBios 0xF0F0
XNS 0x0600
VINES 0x0BAD
IPv6 0x86DD
AppleTalk 0x809B
RARP 0x8035
Table 6- 4. Protocol VLAN and the corresponding type header
In configuring the user-defined protocol, the administrator must make sure that the pre-defined user type header does not match any other type header.A match
may cause discrepancies within the local network and failure to define the VLAN to forward packets to.
Static VLAN Entry
In the Configuration folder, open the VLAN folder and click the Static VLAN Entry link to open the following window:

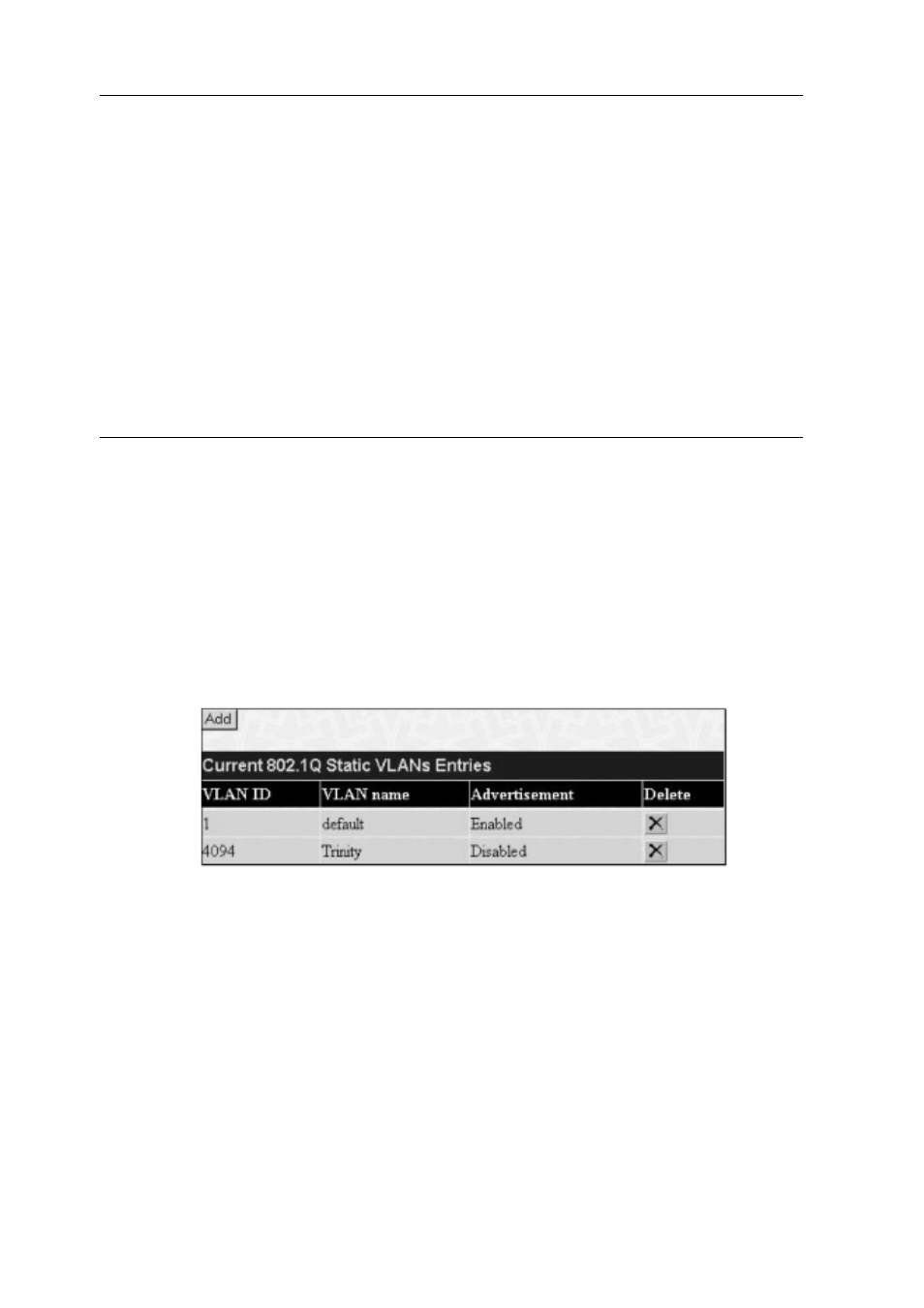

Figure 6- 40. Current 802.1Q Static VLANs Entries window
