Parameter Description
Sequence A counter incremented whenever an entry to the Switch's history log is made.The table displays the last entry
(highest sequence number) first.
Time Displays the time in days, hours, and minutes since the Switch was last restarted.
Log Text Displays text describing the event that triggered the history log entry.
9-8 IGMP Snooping Group
This window allows the Switch’s IGMP Snooping Table to be viewed. IGMP Snooping allows the Switch to read the Multicast Group IP address and the
corresponding MAC address from IGMP packets that pass through the Switch.The number of IGMP reports that were snooped is displayed in the Reports
field.
To view the IGMP Snooping table, click IGMP Snooping Group on the Monitoring menu:

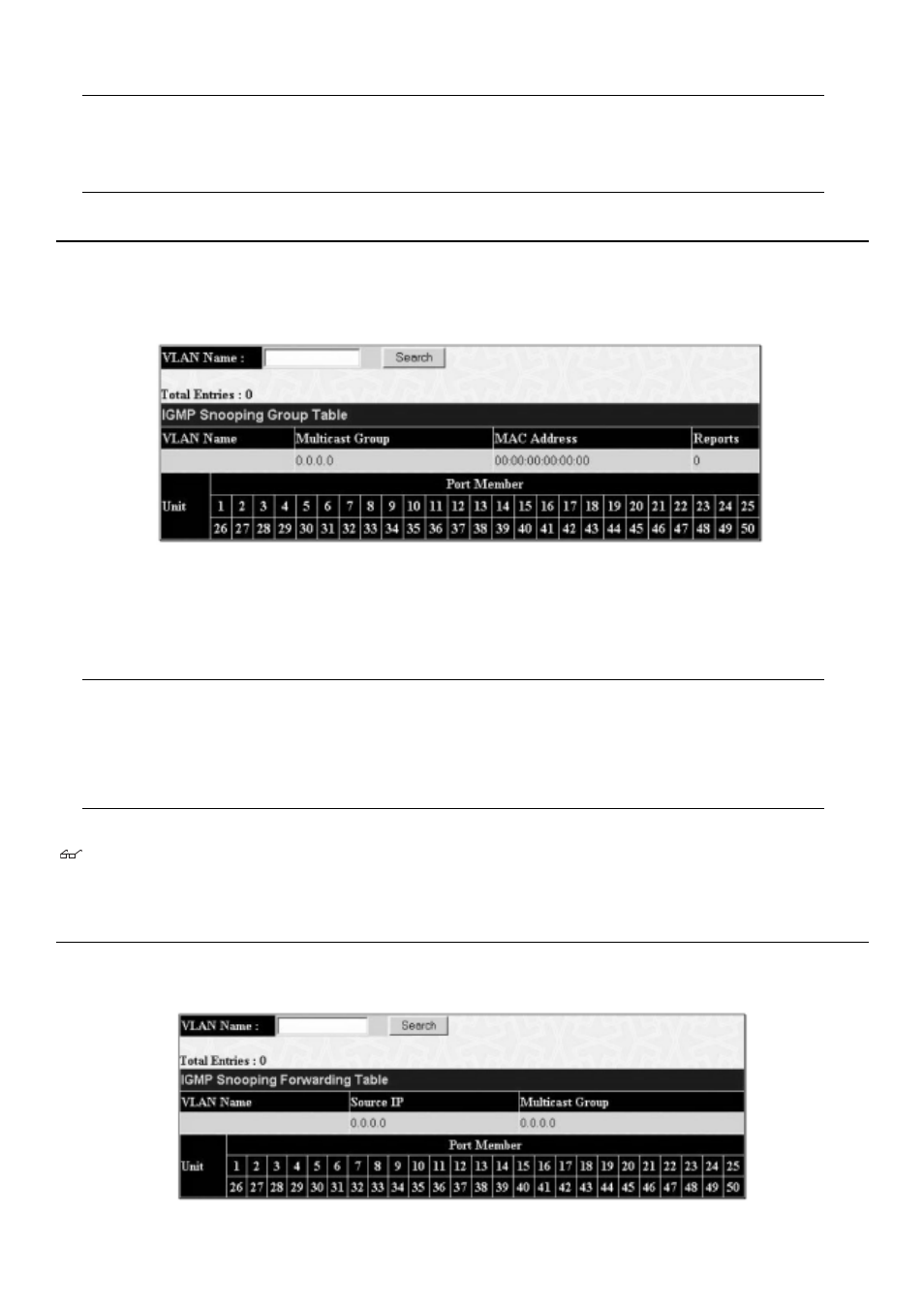

Figure 9- 19. IGMP Snooping Group Table
The user may search the IGMP Snooping Table by VLAN Name by entering it in the top left hand corner and clicking Search.
The following field can be viewed:
Parameter Description
VLAN Name The VLAN Name of the multicast group.
Multicast Group The IP address of the multicast group.
MAC Address The MAC address of the multicast group.
Reports The total number of reports received for this group.
Port Member These are the ports where the IGMP packets were snooped are displayed.
Note: To configure IGMP snooping for the AT-9724TS, go to the Configuration folder and select IGMP Snooping. Configuration and other
information concerning IGMP snooping may be found in Section 6 of this manual under IGMP.
9-9 IGMP Snooping Forwarding
This window will display the current IGMP snooping forwarding table entries currently configured on the Switch.To view the following screen, open the
Monitoring folder and click the IGMP Snooping Forwarding link.
Figure 9- 20. IGMP Snooping Forwarding Table
