OSPF Virtual Interface Settings

Click the OSPF Virtual Interface Settings link to view the current OSPF Virtual Interface Settings.There are not virtual interface settings

configured by default, so the first time this table is viewed there will be not interfaces listed.To add a new OSPF virtual interface configuration set to the table,

click the Add button.A new menu appears (see below).To change an existing configuration, click on the hyperlinked Transit Area ID for the set you want to
change.The menu to modify an existing set is the same as the menu used to add a new one.To eliminate an existing configuration, click the

in the Delete

column.

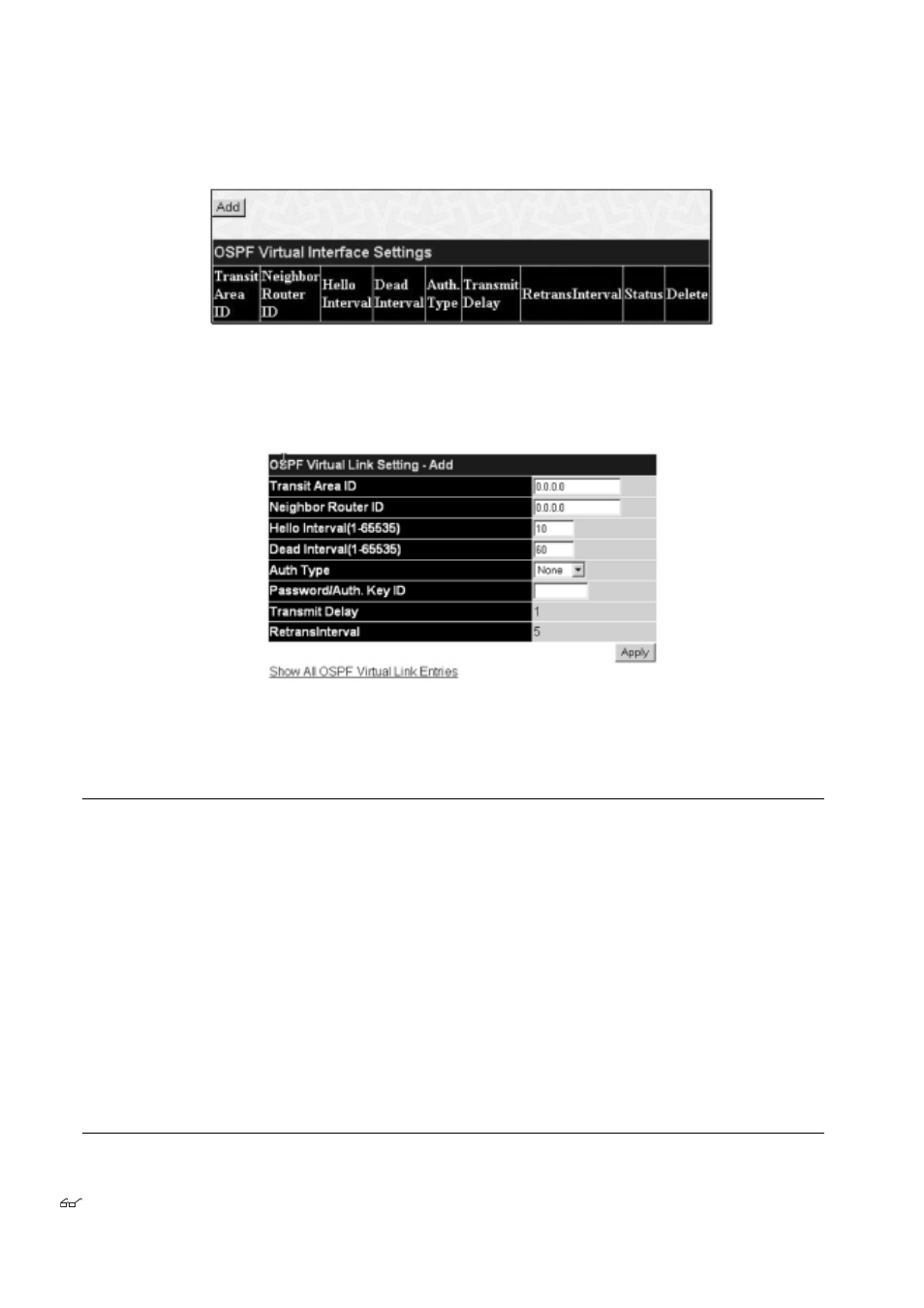

Figure 6- 116. OSPF Virtual Interface Settings window

The status of the virtual interface appears (Up or Down) in the Status column.

Figure 6- 117. OSPF Virtual Link Setting – Add

Configure the following parameters if you are adding or changing an OSPF Virtual Interface:

Parameter

Description

Transit Area ID

Allows the entry of an OSPF Area ID – previously defined on the Switch – that allows a remote area to

communicate with the backbone (area 0).A Transit Area cannot be a Stub Area or a Backbone Area.

Neighbor Router

The OSPF router ID for the remote router.This is a 32-bit number in the form of an IP address

(xxx.xxx.xxx.xxx) that uniquely identifies the remote area’s Area Border Router.

Hello Interval (1-65535)

Specify the interval between the transmission of OSPF Hello packets, in seconds. Enter a value between 1 and

65535 seconds.The Hello Interval, Dead Interval,Authorization Type, and Authorization Key should have

identical settings for all routers on the same network.

Dead Interval (1-65535)

Specify the length of time between (receiving) Hello packets from a neighbor router before the selected area

declares that router down.Again, all routers on the network should use the same setting.

Auth Type

If using authorization for OSPF routers, select the type being used. MD5 key authorization must be set up in

the MD5 Key Settings menu.

Password/Auth. Key ID

Enter a case-sensitive password for simple authorization or enter the MD5 key you set in the MD5 Key settings

menu.

Transmit Delay

The number of seconds required to transmit a link state update over this virtual link.Transit delay takes into

account transmission and propagation delays.This field is fixed at 1 second.

RetransInterval

The number of seconds between link state advertisement retransmissions for adjacencies belonging to this

virtual link.This field is fixed at 5 seconds.

Click Apply to implement changes made.

Note:

For OSPF to function properly some settings should be identical on all participating OSPF devices.These settings include the Hello Interval

and Dead Interval. For networks using authorization for OSPF devices, the Authorization Type and Password or Key used must likewise be identical.

120

Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch
