VRRP Interface Settings
The following window will allow the user to view the parameters for the VRRP function on the Switch.To view this window, click Configuration > Layer 3
IP Networking > VRRP > VRRP Configuration:

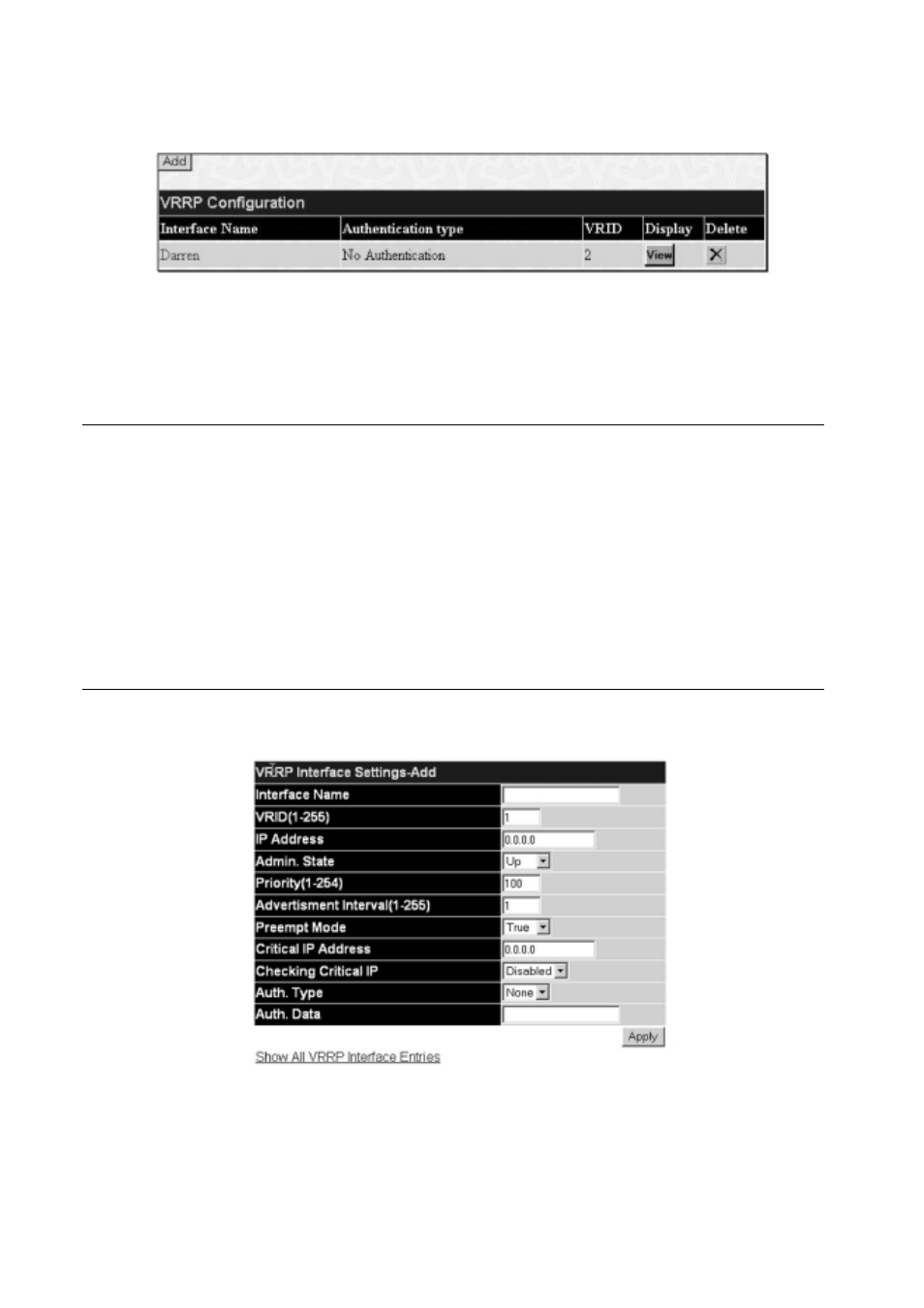

Figure 6- 127.VRRP Configuration window
The following fields are displayed in the window above:
Parameter Description
Interface Name An IP interface name that has been enabled for VRRP.This entry must have been previously set in the IP
Interfaces table.
Authentication type Displays the type of authentication used to compare VRRP packets received by a virtual router. Possible
authentication types include
No authentication – No authentication has been selected to compare VRRP packets received by a virtual router.
Simple Text Password – A Simple password has been selected to compare VRRP packets received by a virtual
router, for authentication.
IP Authentication Header – An MD5 message digest algorithm has been selected to compare VRRP packets
received by a virtual router, for authentication.
VRID Displays the virtual router ID set by the user.This will uniquely identify the VRRP Interface on the network.
Display Click the View button to display the settings for this particular VRRP entry.
Delete Click the to delete this VRRP entry.
Click the Add button to display the following window to configure a VRRP interface.
Figure 6- 128.VRRP Interface Settings – Add window
Or, the user may click the hyperlinked Interface Name to view the same window:
The following parameters may be set to configure an existing or new VRRP interface.
126 Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch
