Appendix A: Technical Specifications
70
RS-232 Terminal Port Pinouts

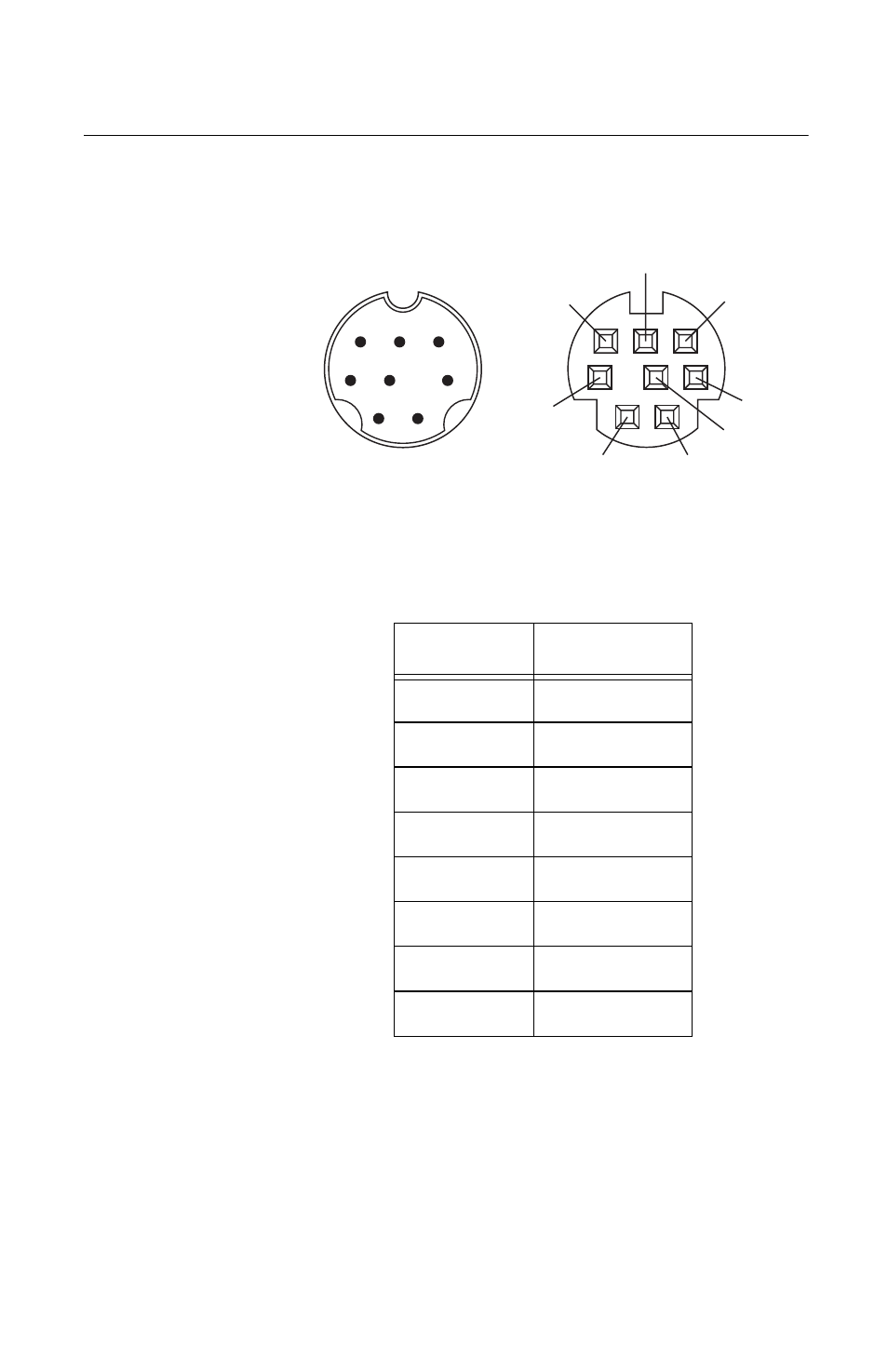

Figure 23 illustrates the pin layouts for the DIN-8 connector
and port of the RS-232 Terminal port.
Figure 23. RS-232 Terminal Port Pinouts
Table 12 lists the pin signals for the RS-232 Terminal port.
Table 12. RS-232 Terminal Port
Pin Signal
1 NC
2 DTR
3 TX
4 RX
5 DSR
6 GND
7 RTS
8 CTS
1 2
3 4 5
6 7 8
2 1
3
4
5
6
7
8
