Chapter 1: Overview
18
Features
The AT-MCF2000M unit is a management module for the
media converter modules and chassis in the AT-MCF2000
Media Converter Series. With its preinstalled AT-S97
Management Software, this management device provides
complete control over the operating parameters of the ports
and channels on the AT-MCF2000 Media Converter Series.
Management is supported both locally (out-of band) through
the RS-232 Terminal port on the module and remotely over
a network (in-band) through the 10/100/1000Base-T
Ethernet port. Also featured is a stacking port for managing
multiple media converter devices as a single unit.
Note
The AT-MCF2000M Management Module is optional
equipment for the AT-MCF2000 Media Converter
Series. The AT-MCF2000 media converter modules
can operate as unmanaged devices.

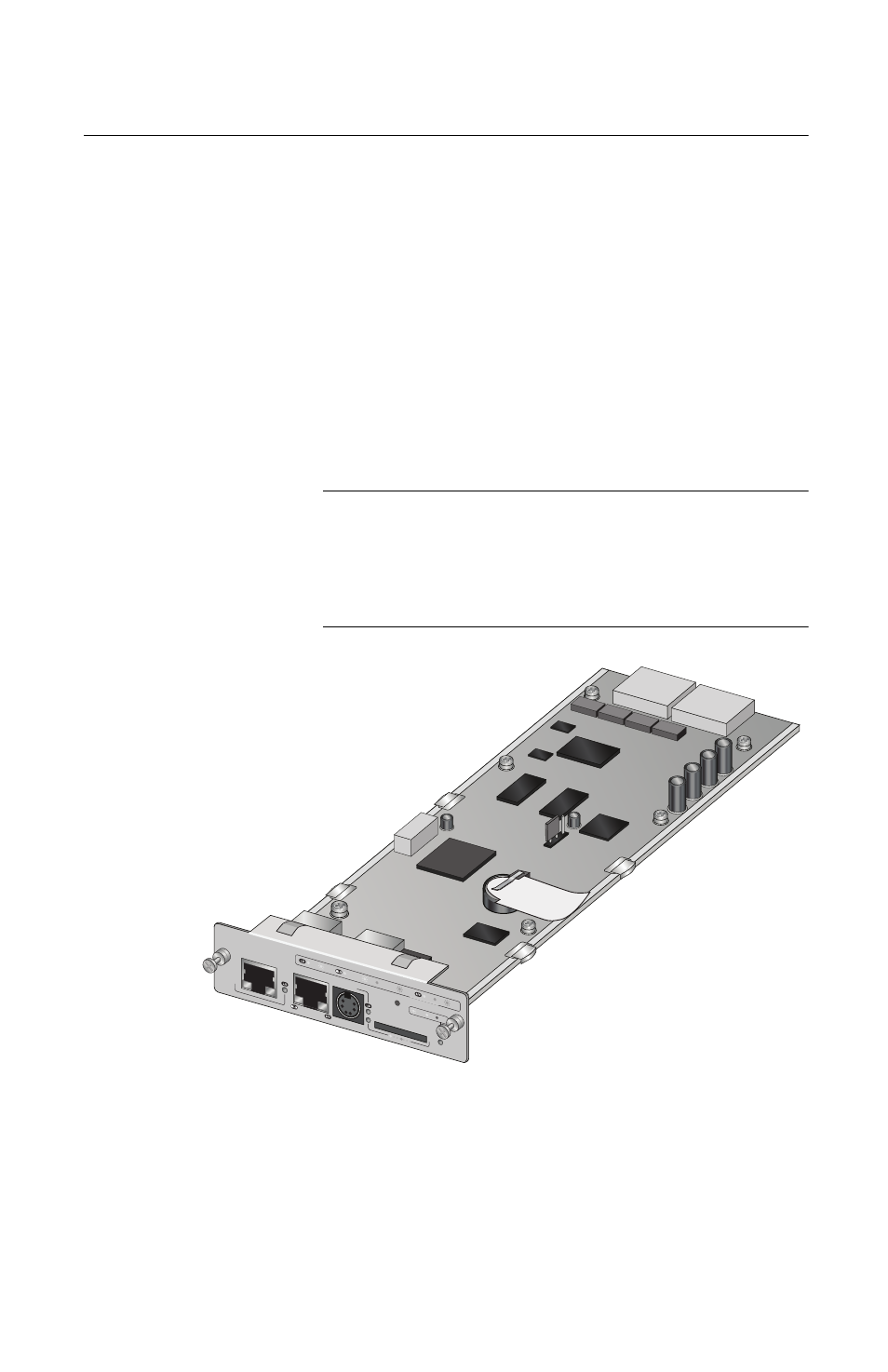

Figure 1. AT-MCF2000M Management Module
AT-MCF2
000M
STACK
MANAG
EMENT
TERMIN
AL
10/100/1 000BAS E-T
RS-232
RESET
SD
RDY
BUSY
MASTE R
POWER
BOOT
RDY FAULT
1000 L INK
ACT 10/1 00 LIN K ACT
FDX HDX
COL
LINK
ACT
PORT A
CTIVIT Y
1198a
