AT-MCF2000M Management Module Installation Guide
35
10/100/
1000Base-T
Management
Port LEDs
The 10/100/1000Base-T Management port has a L/A (Link/
Activity) LED and a D/C (Duplex-mode/Collisions) LED.

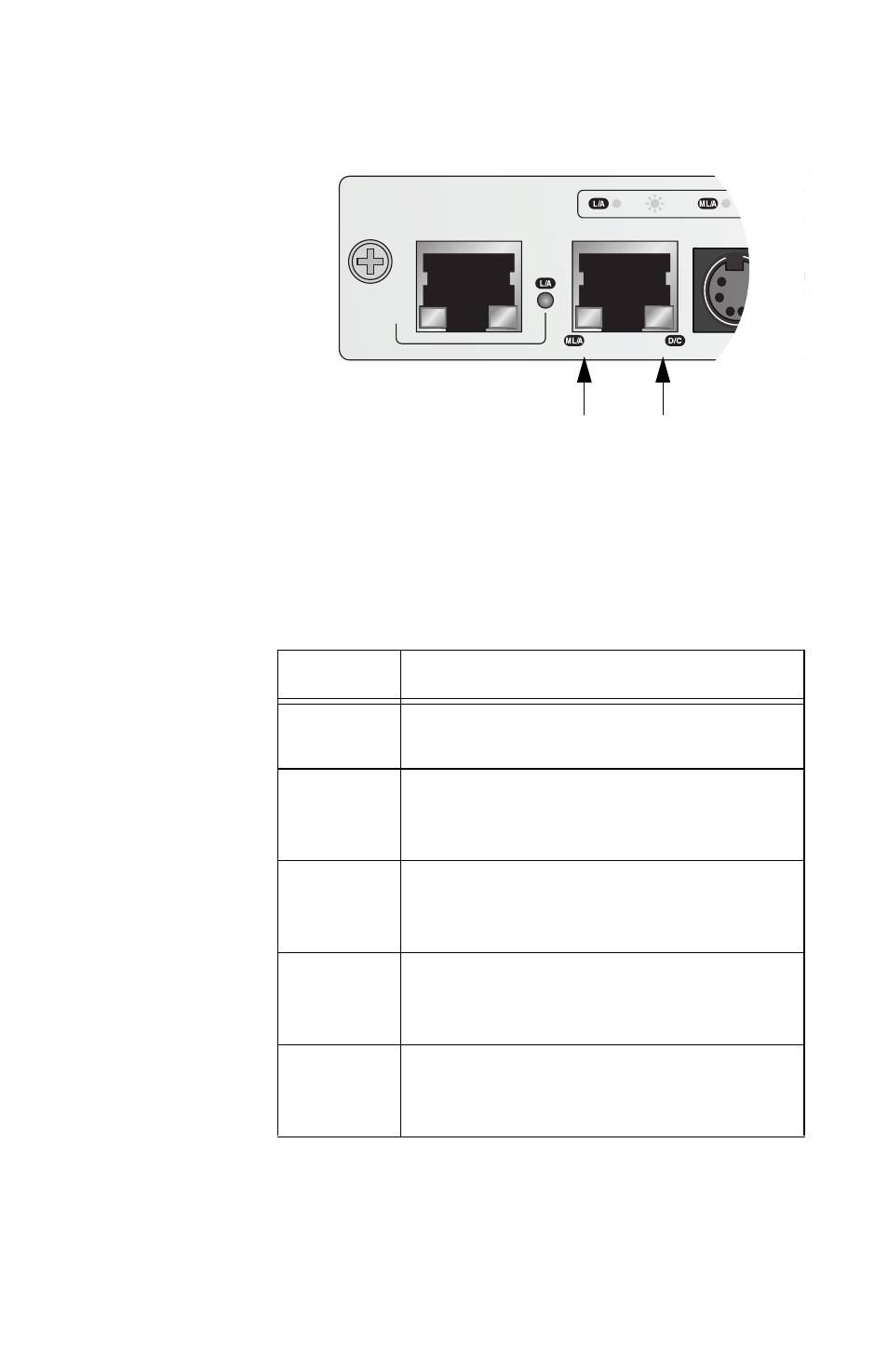

Figure 9. Link/Activity and Duplex-mode LEDs on the
Management Port
The states of the Link/Activity LED are defined in Table 4.
Table 4. Link/Activity LED on the Management Port
State Description
Off The port has not established a link with a
network device.
Steady
Green The port has established an 1000 Mbps
link with a network device, but is not
forwarding or receiving network packets.
Flashing
Green The port has established an 1000 Mbps
link with a network device and is
forwarding or receiving network packets.
Steady
Amber The port has established a 10 or 100 Mbps
link with a network device, but is not
forwarding or receiving network packets.
Flashing
Amber The port has established a 10 or 100 Mbps
link with a network device and is
forwarding or receiving network packets.
AT-MCF2000M
STACK MANAGEMENT
TERMINAL
10/100/1000BASE-T RS-232
1000 LINK AC LINK ACT
1199b
Link/Activity
LED
Duplex-mode/
Collisions LED
