Chapter 1: Overview
32
Chassis ID Jumper
The module has a jumper on the circuit board for setting the
ID number of the module’s chassis. Refer to Figure 6. The
chassis ID number for the AT-MCF2000M Management
Module can be 0 or 31. The default setting is 0. For
background information, refer to “Chassis ID Numbers” on
page 26.
For instructions on setting the jumper, refer to “Setting the
Chassis ID Jumper” on page 45.

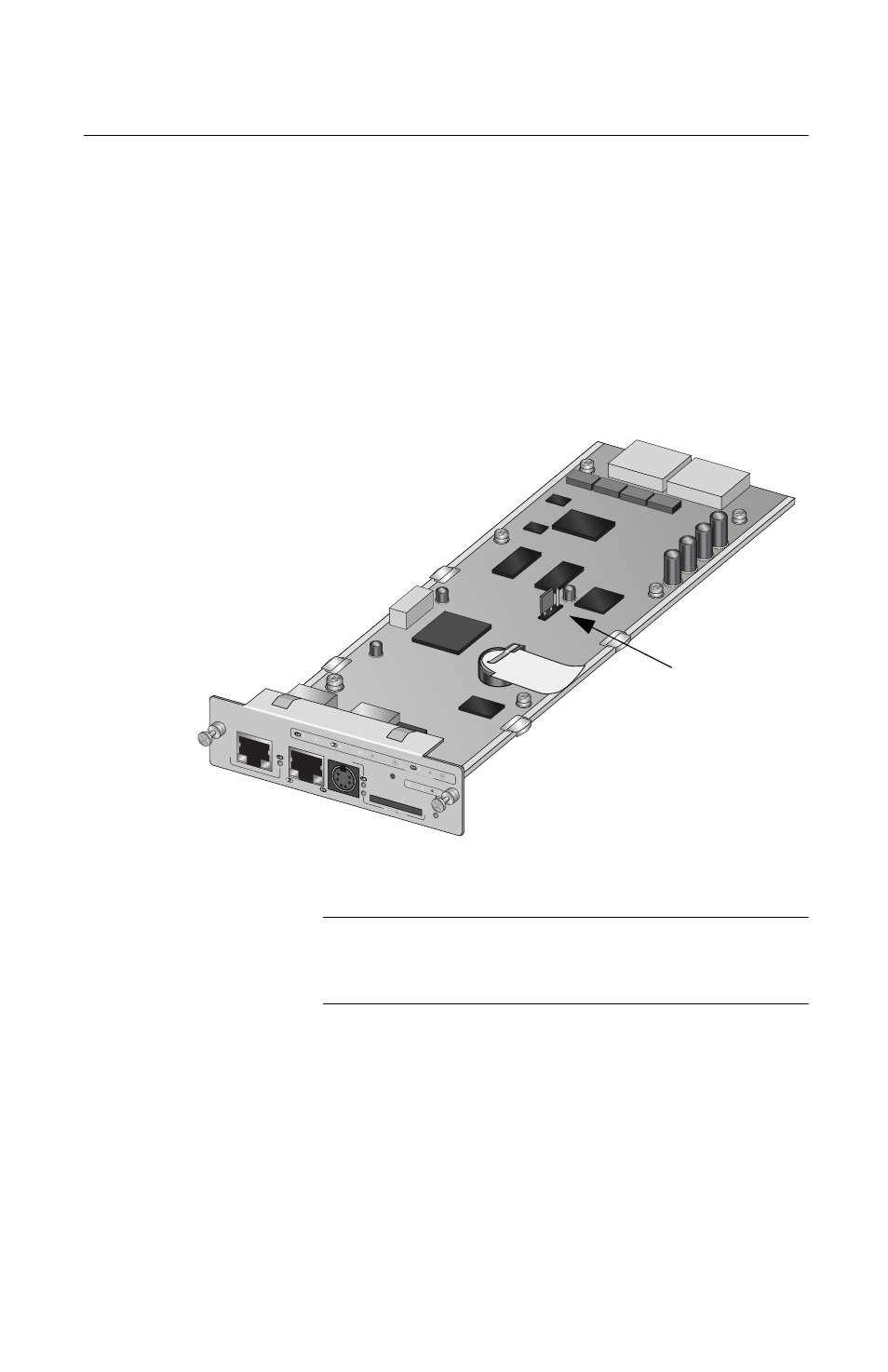

Figure 6. Chassis ID Jumper
Note
You cannot change the chassis ID number with the
AT-S97 Management Software.
