AT-MCF2000M Management Module Installation Guide
45
Setting the Chassis ID Jumper
The management module has a jumper on the circuit board
for setting the chassis ID. The AT-MCF2000M Management
Module can have a chassis ID value of 0, the default
setting, or 31.
You can leave the jumper in the default setting if the media
converter chassis will not be part of a stack or for a stack
that has just one management module.
For a stack with two AT-MCF2000M Management Modules,
you must change the chassis ID of one management
module to 31 because two management modules in the
same stack must have different chassis ID numbers.
Refer to Figure 12 or the legend printed next to the jumper
for the supported settings.

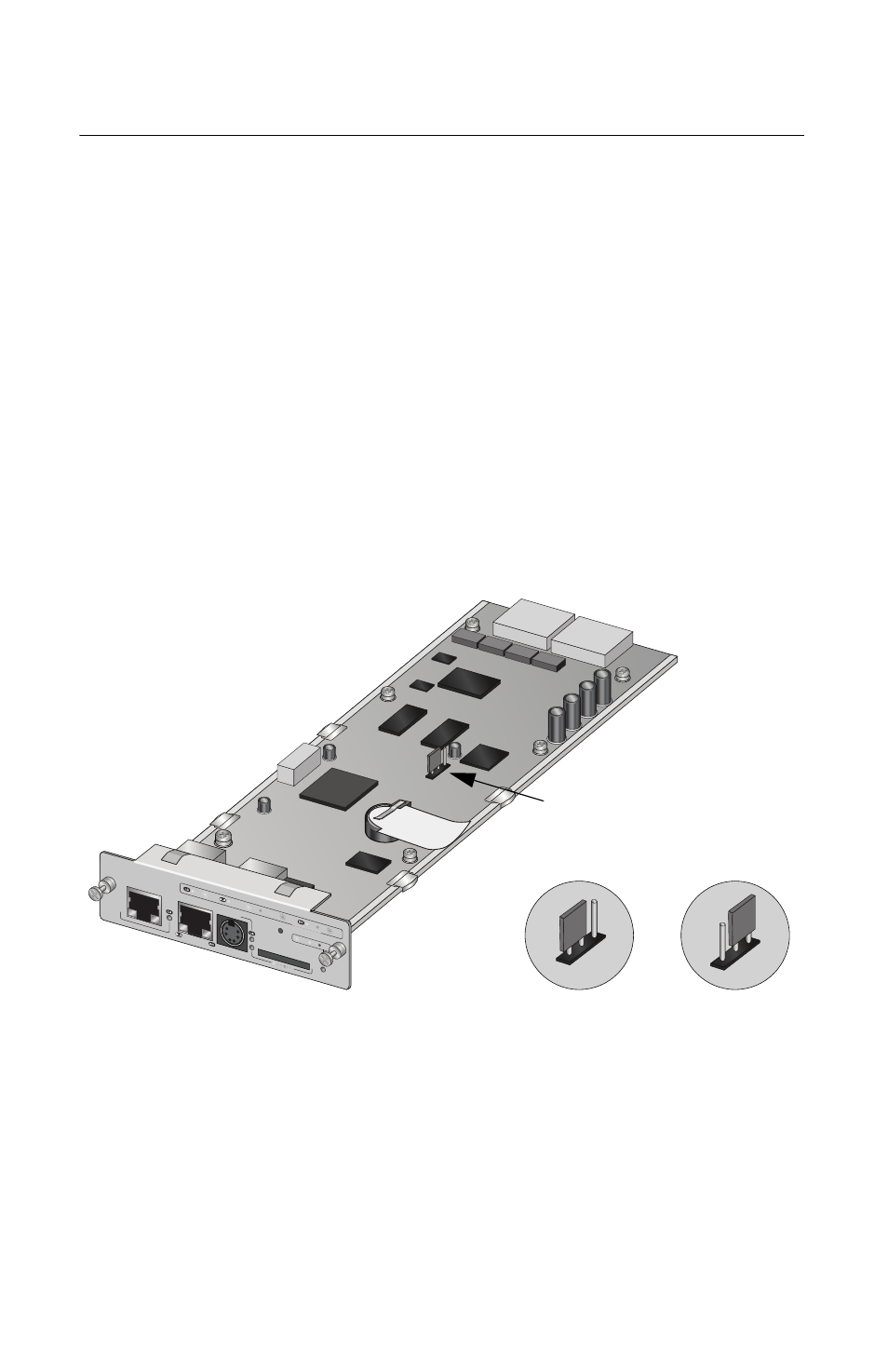

Figure 12. Setting the Chassis ID Jumper
For further information on chassis ID numbers, refer to
“Chassis ID Numbers” on page 26 or the AT-S85 and
AT-S97 Management Software Command Line Interface
User’s Guide.
