AT-MCF2000M Management Module Installation Guide
33
Module LEDs
The section describes the LEDs on the management
module.
General
Status LEDs
The three LEDs on the left side of the panel provide general
information on the status of the management module. One
LED is unlabeled. The other LEDs are Master and Power.

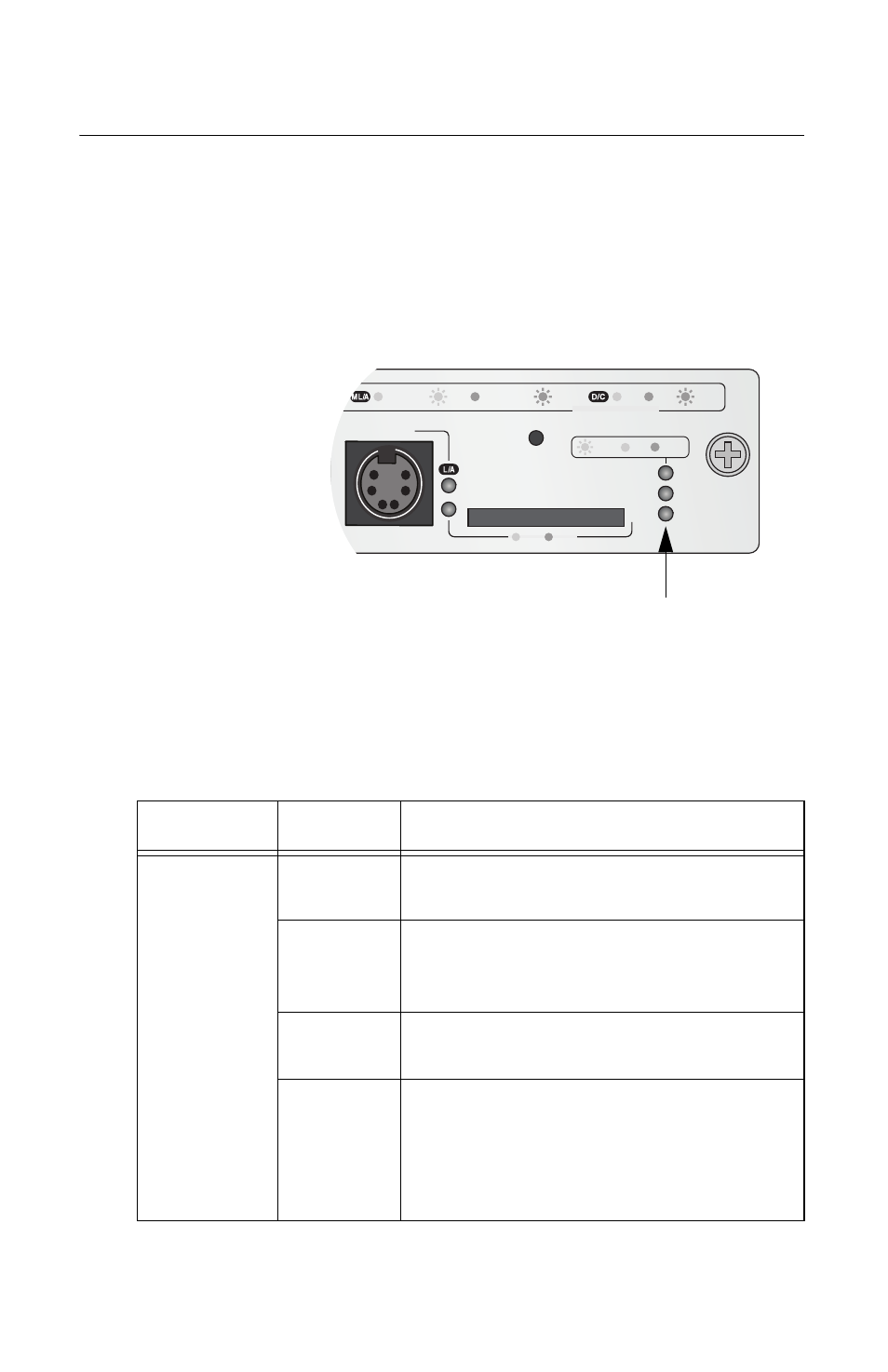

Figure 7. General Status LEDs
Table 2 defines the states of the general status LEDs.
EMENT
TERMINAL
0BASE-T RS-232
RESET
SD
RDY BUSY
MASTER
POWER
BOOT RDY FAULT
1000 LINK ACT 10/100 LINK ACT FDX HDX COL INK ACT
PORT ACTIVITY
1199a
General Status
LEDs
Table 2. General Status LEDs
LED State Description
(unlabeled) Steady
green The management module is operating
normally.
Flashing
Green The management module is initializing the
AT-S97 Management Software and
loading its active master configuration file.
Red The management module has experienced
a fault condition.
Flashing
Red The management module is receiving a
new version of the AT-S85 or AT-S97
Management Software. The destination of
the download can be the management
module or a media converter module.
