AT-MCF2000M Management Module Installation Guide
37
Secure Digital
Memory
Card Slot
LED
The secure digital memory card slot has one LED.

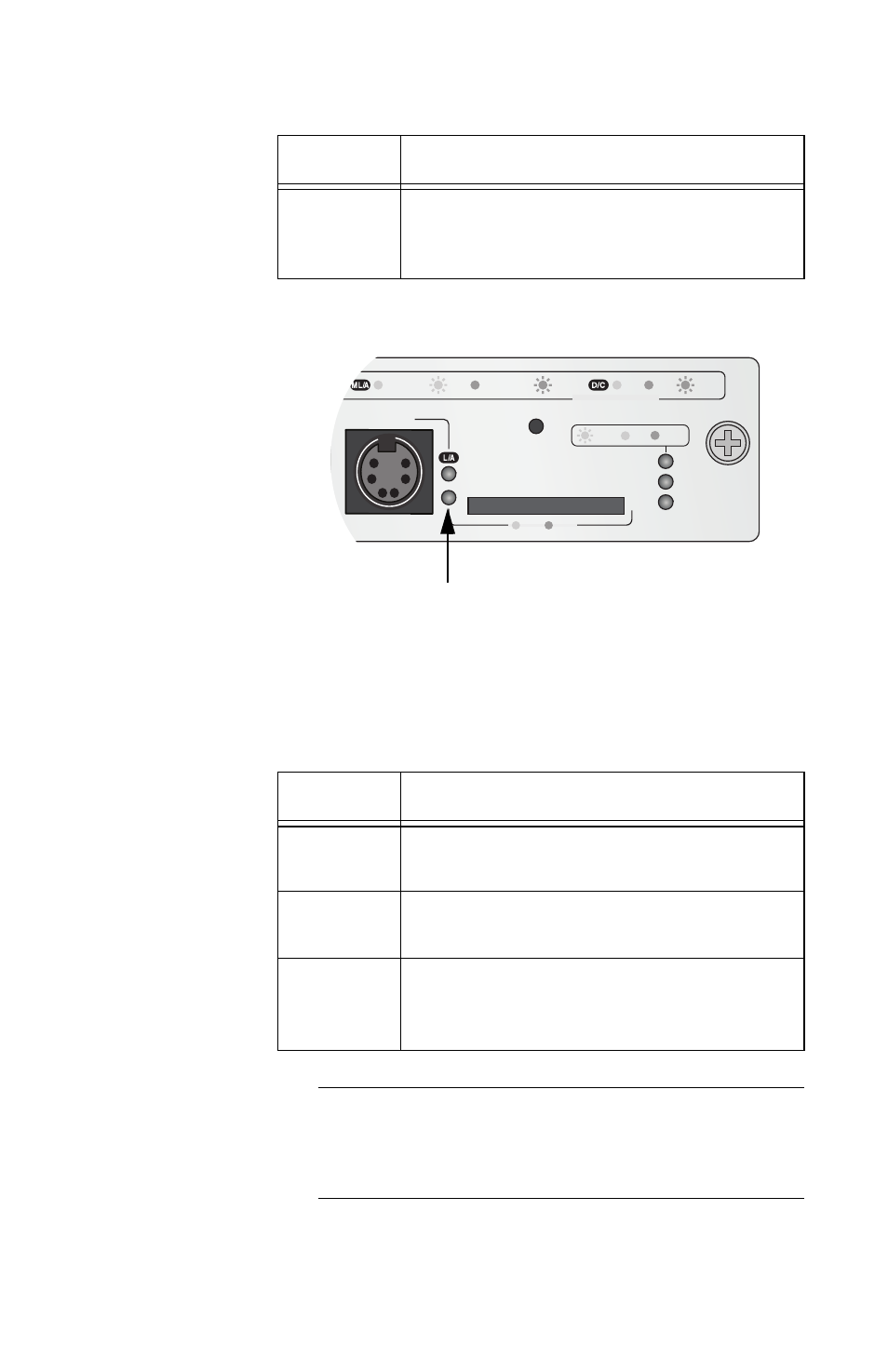

Figure 11. SD Slot LED
The states of the LED are defined in Table 7.
Note
Do not remove a secure digital memory card from the
SD slot when the LED is amber. Wait for the LED to
change to green before removing the card.
Flashing
Green The port is forwarding or receiving
management packets from the next
chassis in the stack.
Table 6. Link/Activity LED on the Management Port
State Description
Table 7. SD Slot LED
State Description
Off The SD slot is empty or a card is installed
improperly.
Green A secure digital memory card is present in
the slot.
Amber The management module is retrieving or
storing data on a secure digital memory
card.
