2. To connect two AT-MCF2000S Stacking Modules,
connect either the Stack 1 or Stack 2 port on the
stacking module to either the Stack 1 or Stack 2 port on
the stacking module in the next chassis of the stack. All
port combinations are supported, as illustrated in
Figure 19.
Repeat this step to connect the remaining
AT-MCF2000 media converter modules to the stack.

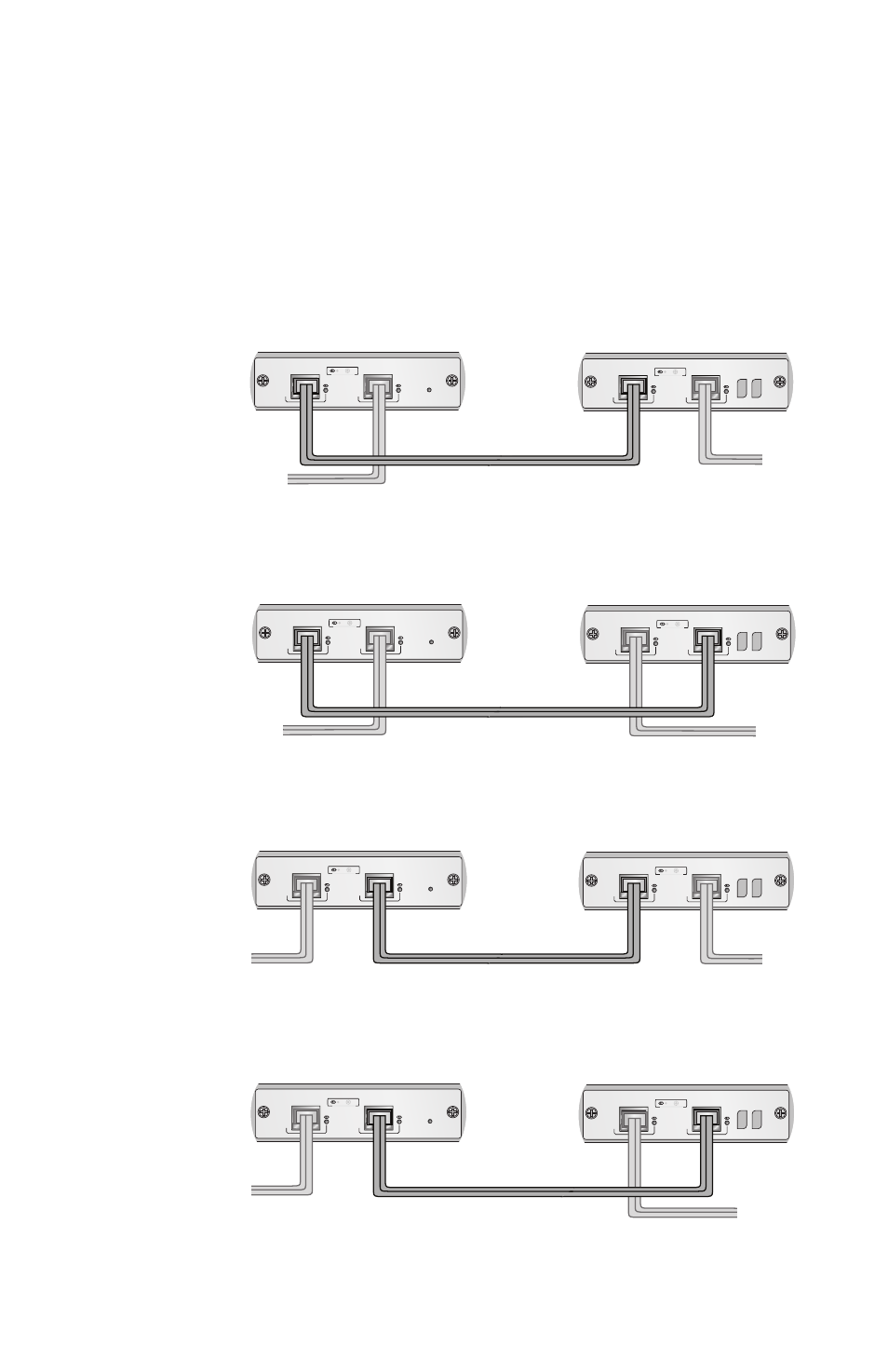

Figure 19. Cabling Two AT-MCF2000S Stacking Modules
