CHAPTER 3:
Using Multiple Displays
Connecting Your Monitors
Your Radeon® X1600 Series graphics card provides hardware support for
two DVI-I monitors a DVI-I monitor and a VGA monitor using the
supplied DVI-I-to-VGA adapter. It also provides TV output via an S-Video
Out connector.

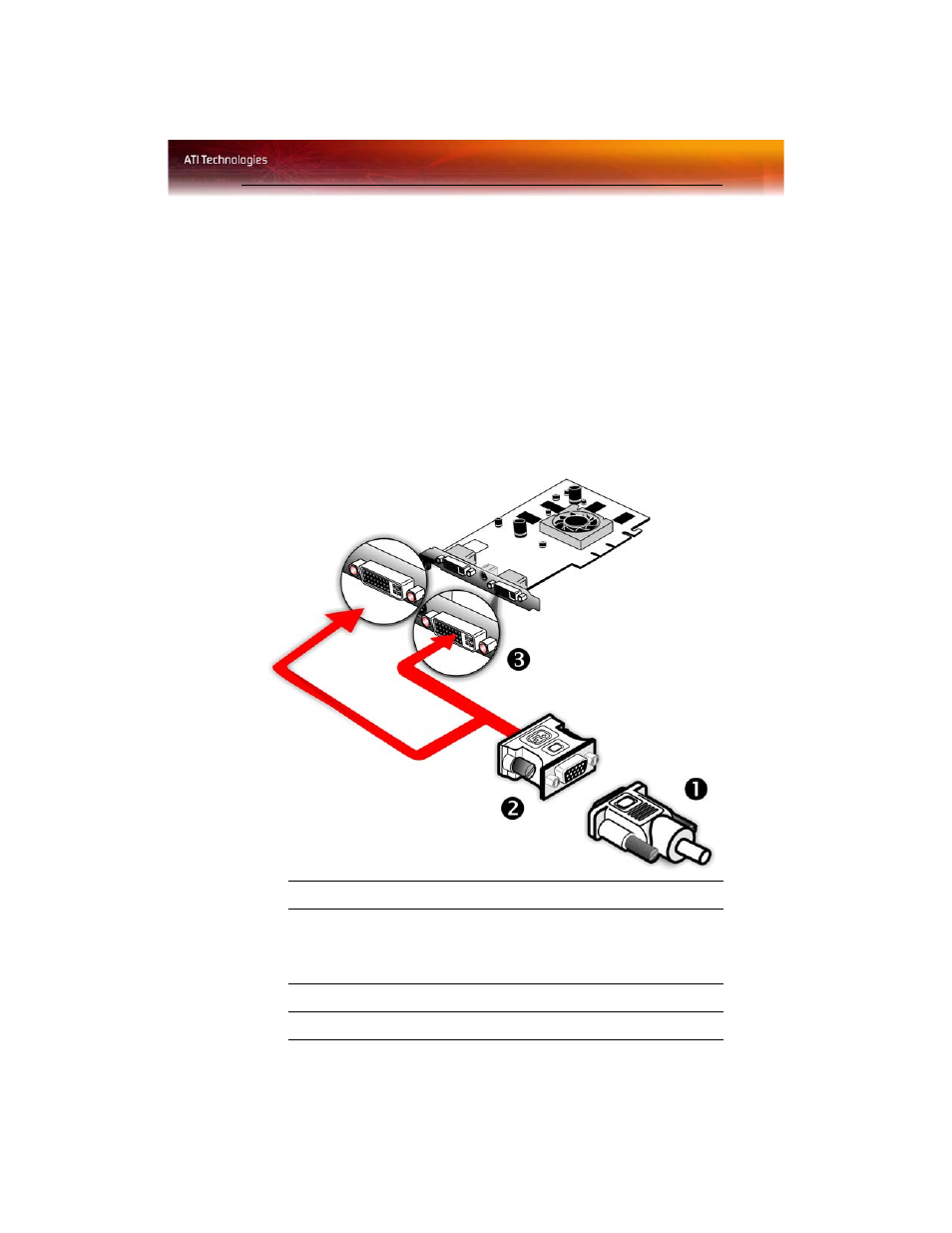

Connections and Adapters for the Radeon® X1600 Series Card
1
Standard VGA Monitor Connector. To connect a VGA monitor
to the DVI-I connector, plug the supplied DVI-I-to-VGA adapter
into the DVI-I connector, then plug your monitor cable into the
adapter.
2
DVI-I-to-VGA Adapter.
3
DVI-I Connection. To connect a digital display.
