Horner APG QX651 OCS - Manual (Page 82)

CH. 14 MAN0798-04-EN
August 20, 2009 Page 82 of 95 ECN # 979
3. Make/Create Clone option enables user to duplicate / Clone application file, all unit settings and all
register values from Battery Backed RAM.
Selecting Make Clone brings up the screen below for the user:

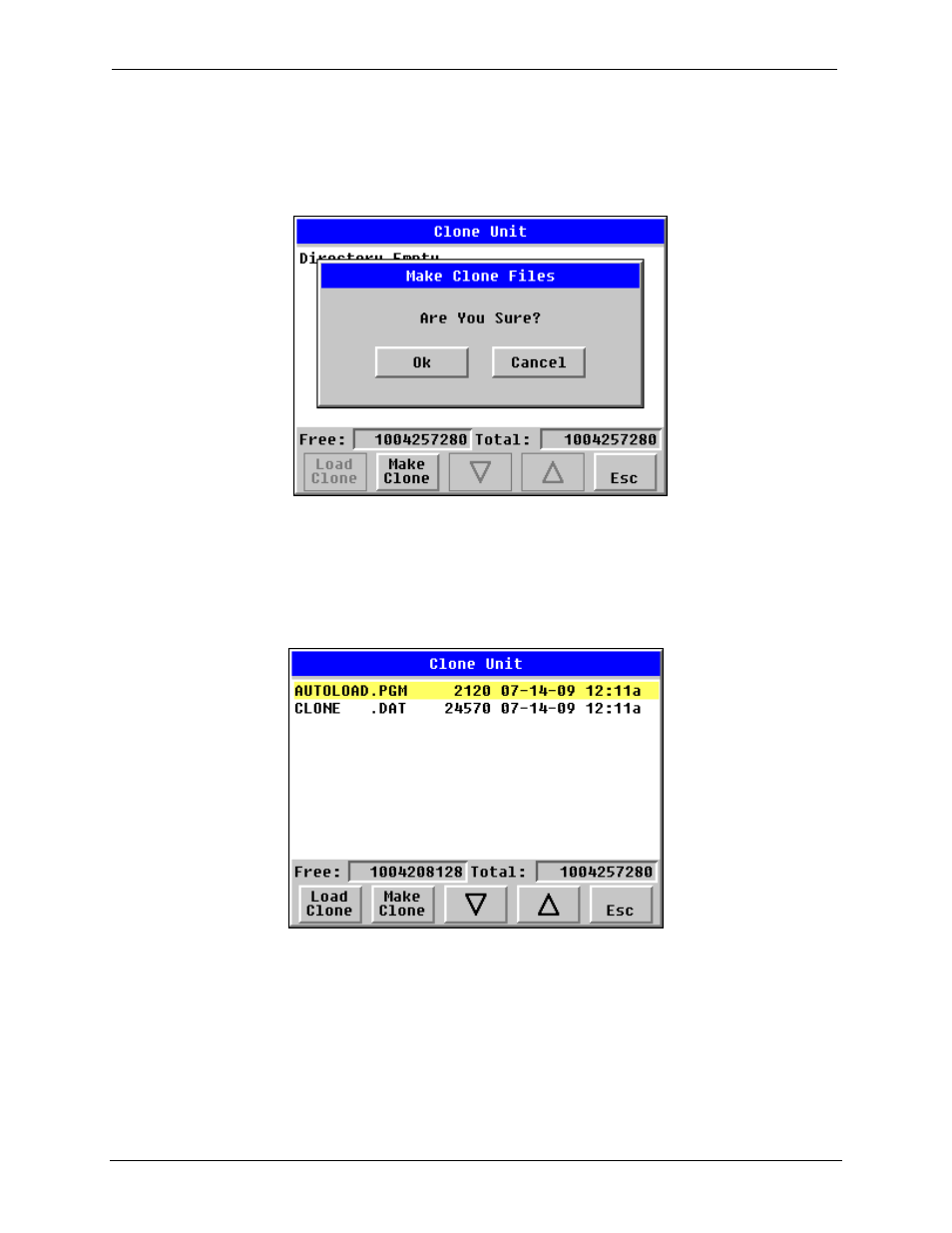

Figure 14-3 – Clone Unit Confirm Screen
After confirmation, the OCS will create two new files in the root directory of the Removable Media Drive
as shown below:
AUTOLOAD.PGM Application
file
CLONE.DAT File having all unit settings and register values from Battery Backed RAM
Figure 14-4 – Clone Unit Files
NOTE: Make/Create clone operation automatically includes the security in \AUTOLOAD.PGM file for
security enabled files.
