MAN0798-04-EN CH. 7
August 20, 2009 Page 31 of 95 ECN # 979
3.
The following screen appears. In this configuration example, I/O modules are going to be
selected and configured for Base 2.

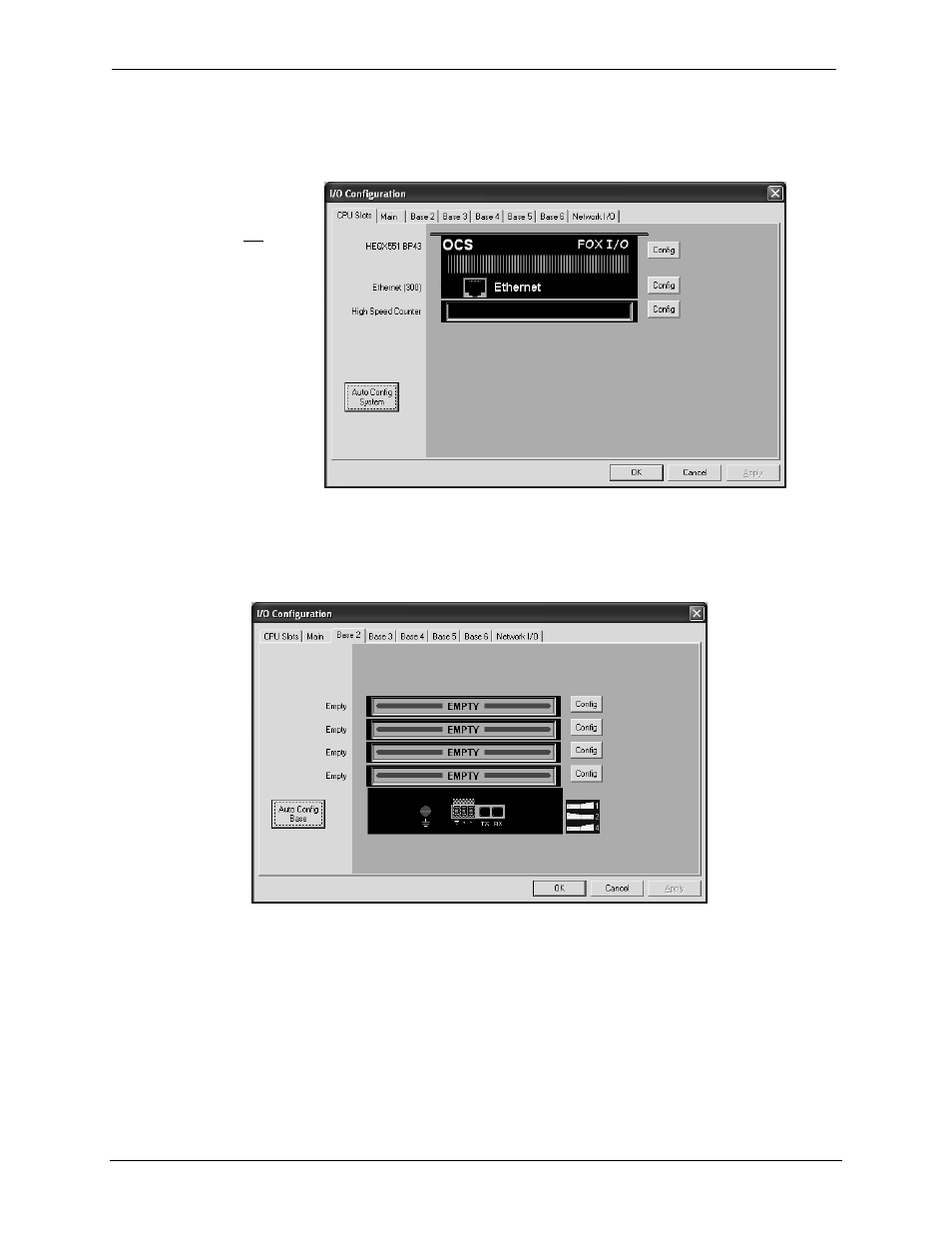

Figure 7-3 – Main Base Screen appears with QX and BP43
Upon pressing the Base 2 tab, the following screen appears.
Figure 7-4 – Base 2 Selected
Any Base can be
selected. It is not
necessary to select
bases in a specific
order.
The Main base
contains the slots
directly located on the
back of the NX.
