MAN0798-04-EN CH.3
August 20, 2009 Page 17 of 95 ECN # 979
CHAPTER 3: MECHANICAL INSTALLATION
3.1
Initial Mechanical Installation
Note: Prior to mounting, observe requirements for the panel layout design and adequate clearances on
page 18.
Initially, it is important to refer to the data sheet sent with the product in the box.
The datasheet covers model-specific information related to QX and Back Pack models such as:
a. Panel
cut-outs
b. Dimensions
c. Installation
Procedures
Visit our website (see page 92) to obtain updates to datasheets and user documentation.
The mechanical installation greatly affects the operation, safety and appearance of the system.
Information is provided to mechanically install the unit such as mounting procedures and other
recommendations for the proper mechanical installation of the unit.

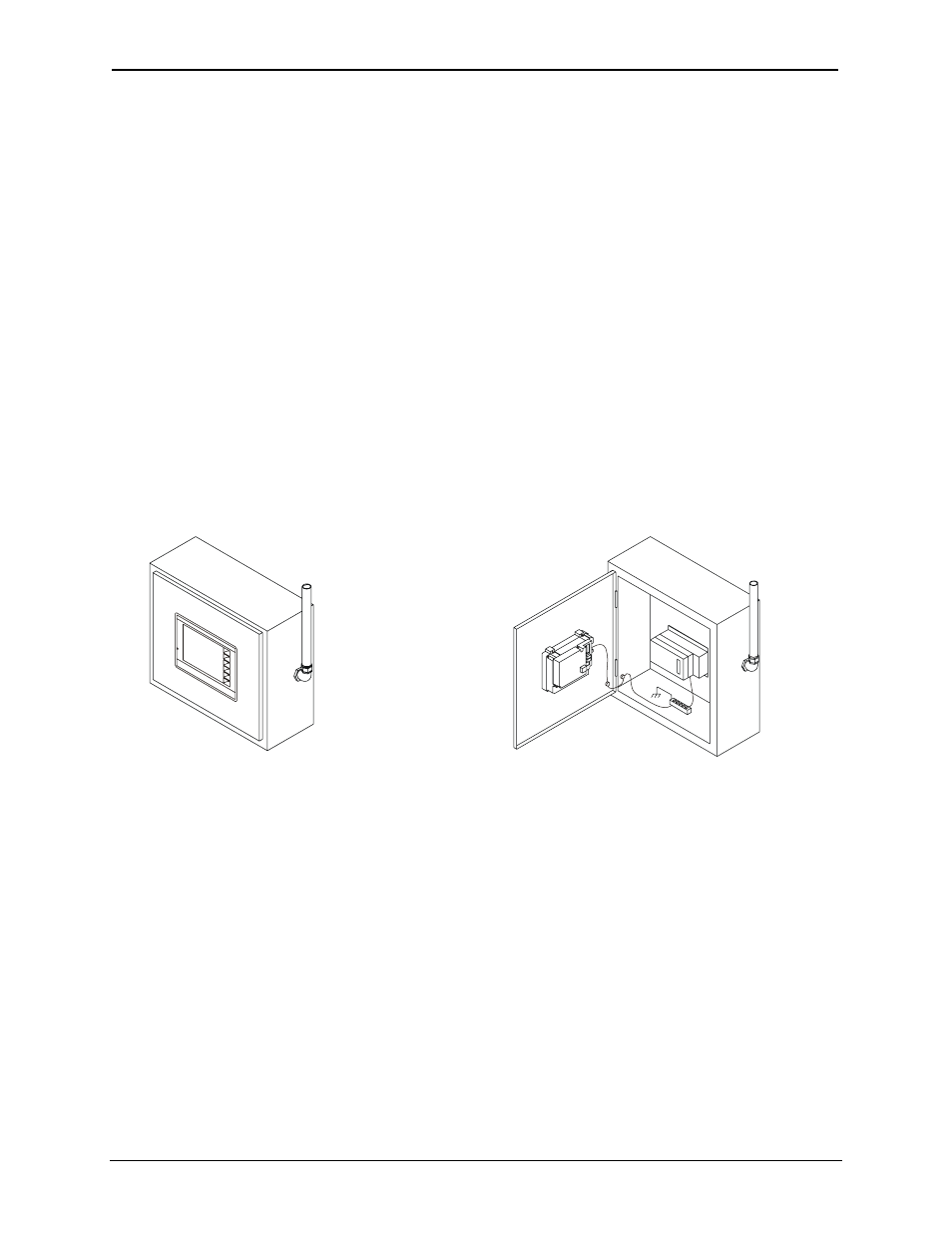

Figure 3-1 – QX Front and Back Views
001OCS001 001OCS002
Back View of QX
(QX Base Shown in Panel Box Door and FOX
Shown in Panel Box – No Back Pack Attached)
Front View of QX in Panel Door
