Double-click on a slot or press the Config button located next to the slot. The following screen
appears. Select a tab at the top of the screen, and then select an I/O module. (For this example,
the DIQ612 is going to be selected.) Press OK.

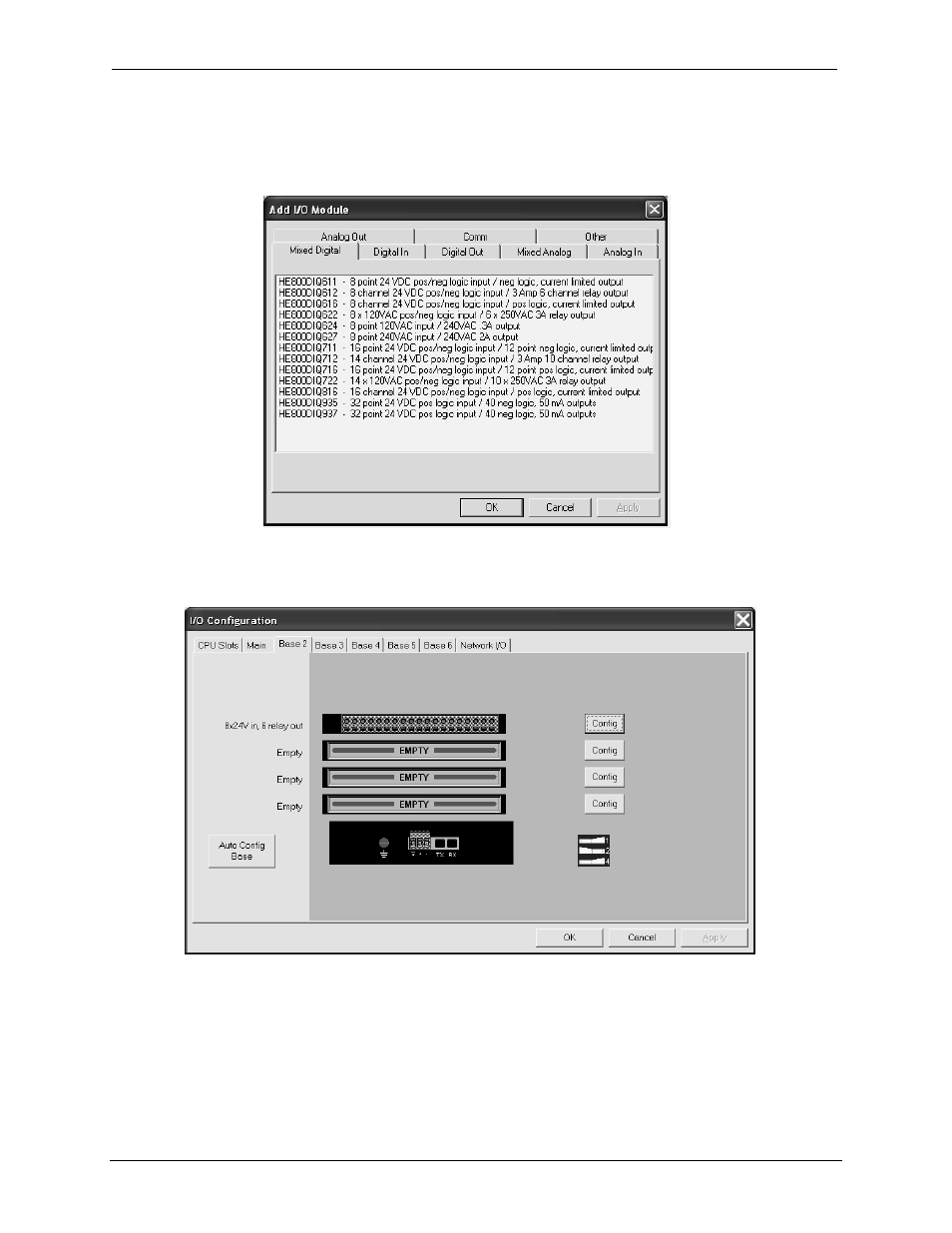

Figure 7-5 – Selecting an I/O Module
4.
The following screen appears.
Figure 7-6 – Base 2 with an I/O Module Selected
The description and properties of the I/O module are provided. If satisfied with the selections,
press OK.
Note: If a module already occupies a slot and a different module is desired, right-click on the
slot and press Replace. To leave a slot empty, right-click on the slot and press Delete. By
right-clicking on a slot, its configuration can be copied into another slot on the same base (or
a different base) and pasted into a new slot.
