CHAPTER 2: INTRODUCTION
2.1 Visual
Overview
The QX OCS provides flexible options allowing you to choose the functionality you need. A QX Base can
be used alone or it can be used with a Back Pack I/O Interface (BP) and/or a Video Capture Option board
Note: After September 2006, the QXxxx base models are loaded with Back Pack capable firmware. For
QX models without preloaded Back Pack firmware, use QXxxx-16 models. See Table 2.1.

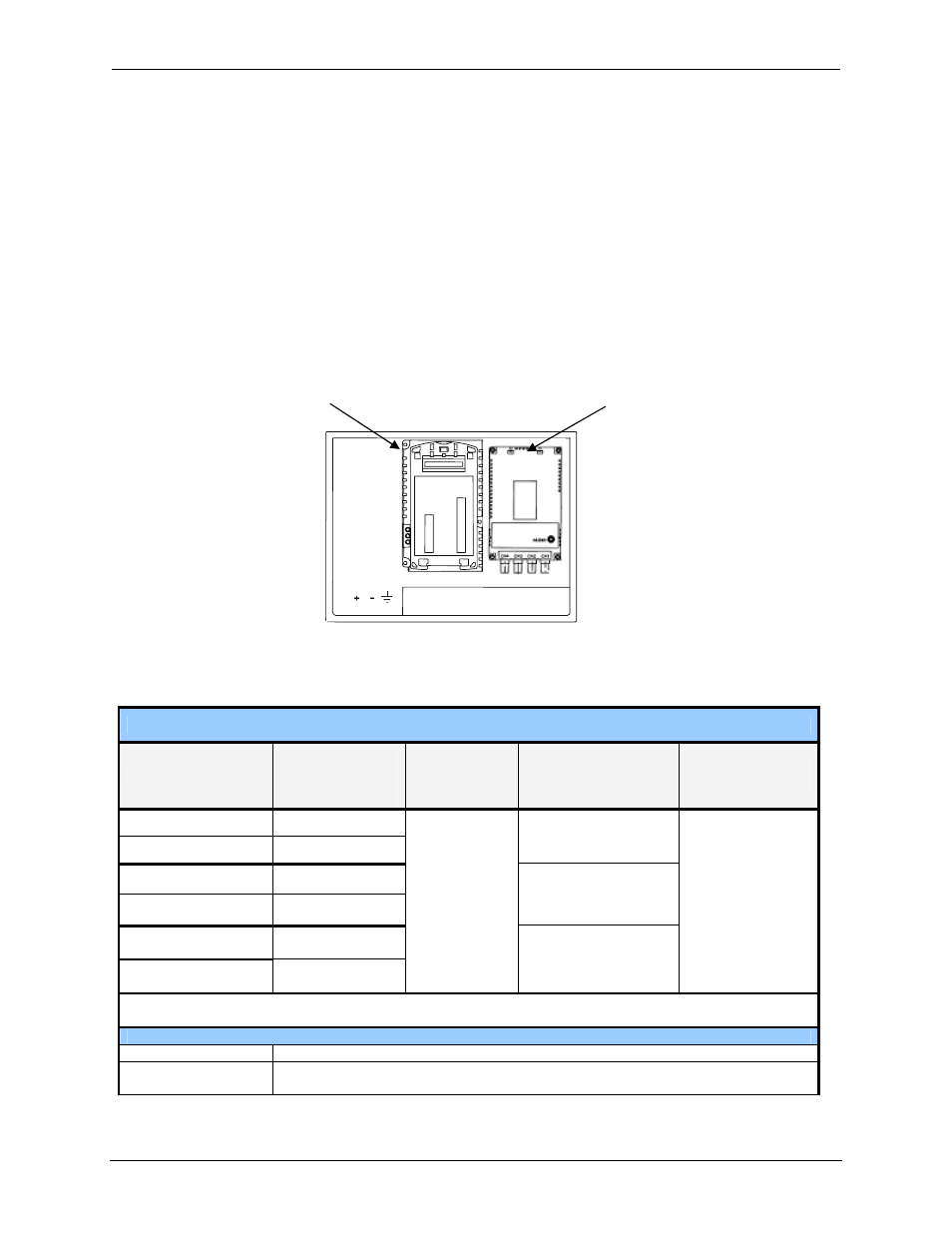

Figure 2-1 – Visual Overview of QX, Back Pack, and VIM400
Table 2.1 – QX / BP Product Features
QX Base Model
Loaded with
Back Pack
Capable
Firmware
Network Screen Type
Standard QX
Features
HE-QX451* Yes
HE-QX451-16 No
8.4” TFT SVGA
with 32,768 colors
HE-QX551* Yes
HE-QX551-16 No
10.4” TFT SVGA
with 32,768 colors
HE-QX651* Yes
HE-QX651-16 No
On-Board
Ethernet
100BaseT
12.1” TFT SVGA
with 32,768 colors
CompactFlash
3 Serial Ports
Ethernet
*Note: After September 2006, the QXxxx base models are loaded with Back Pack capable firmware.
For QX models without preloaded Back Pack firmware, use QXxxx-16 models.
Optional Back Pack (BP) Features
HE-BP41 FOX, CsCAN, Up to 2 Plastic SmartStack Modules (for additional I/O)
HE-BP43
FOX, CsCAN, Up to 4 Plastic SmartStack Modules (for additional I/O), High Speed
I/O (HSC / PWM)
Back Pack Options (BP)
Optional interface that adds comprehensive
I/O functionality to the QX.
QX Base
Unit
Video Capture Option (HE500VIM400)
The VIM400 provides capabilities such as integrating security,
viewing machinery in remote locations, and incorporating a
machine vision monitor within the control system.
