Selecting a Different Controller
To select a different controller, ensure that the CPU Slots tab is pressed. Then, click on the slot
or the Config button. The Configure Controller screen appears.

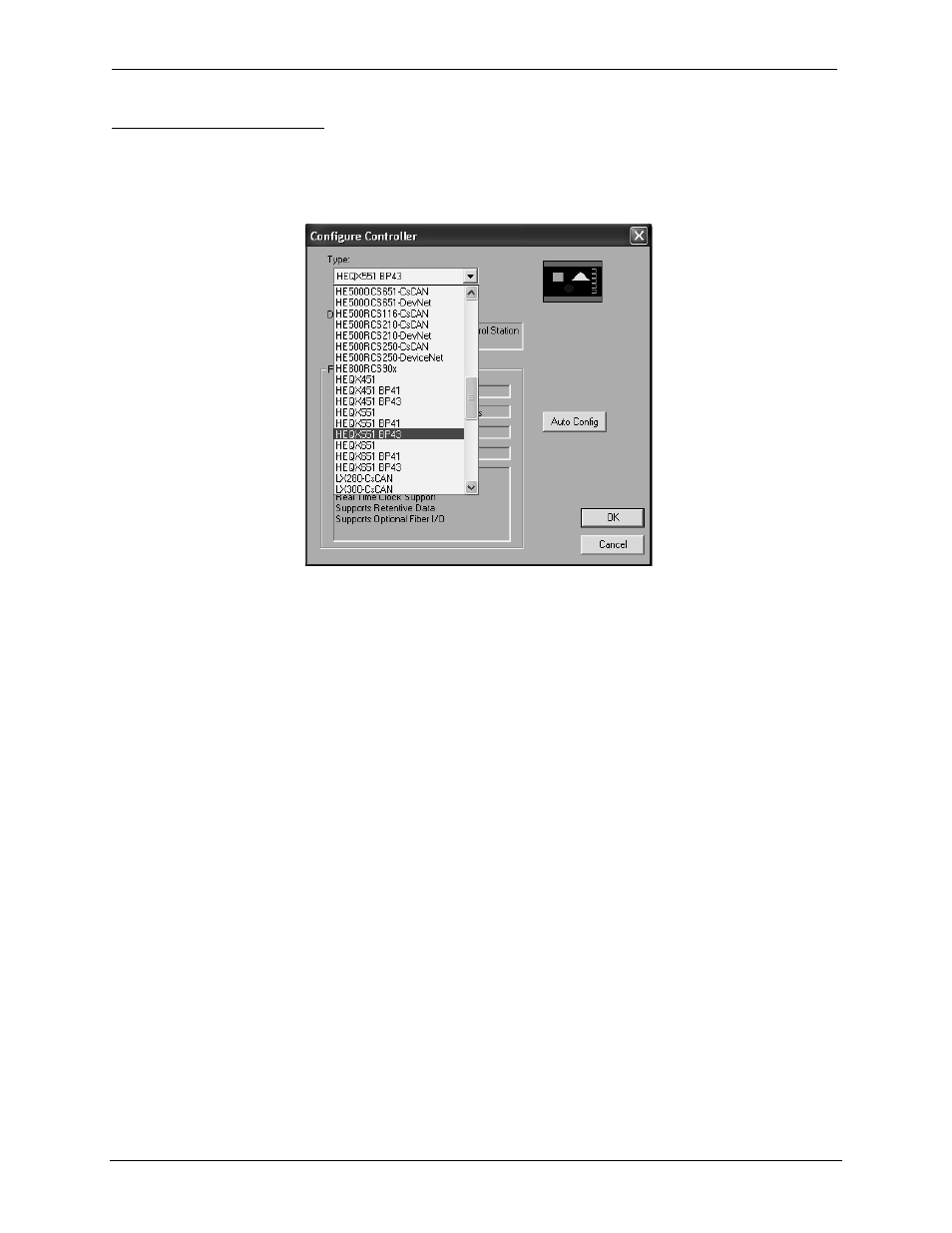

Figure 7-2 – Selecting a Controller
To select a different controller, click on the Type list box and scroll down to select the desired
controller. Then press OK. If satisfied with the controller now selected, press Base # tab at the
top of the screen. Then, go to Step 3.
Note: The Auto Config button can be pressed prior to selecting the desired controller. By
pressing the button, the settings are deleted from any controller that is physically connected to
the PC.
