APPEnDIX D

RTD PROBE CONNECTOR

SWITCHCRAFT TINI QG (TA4F)

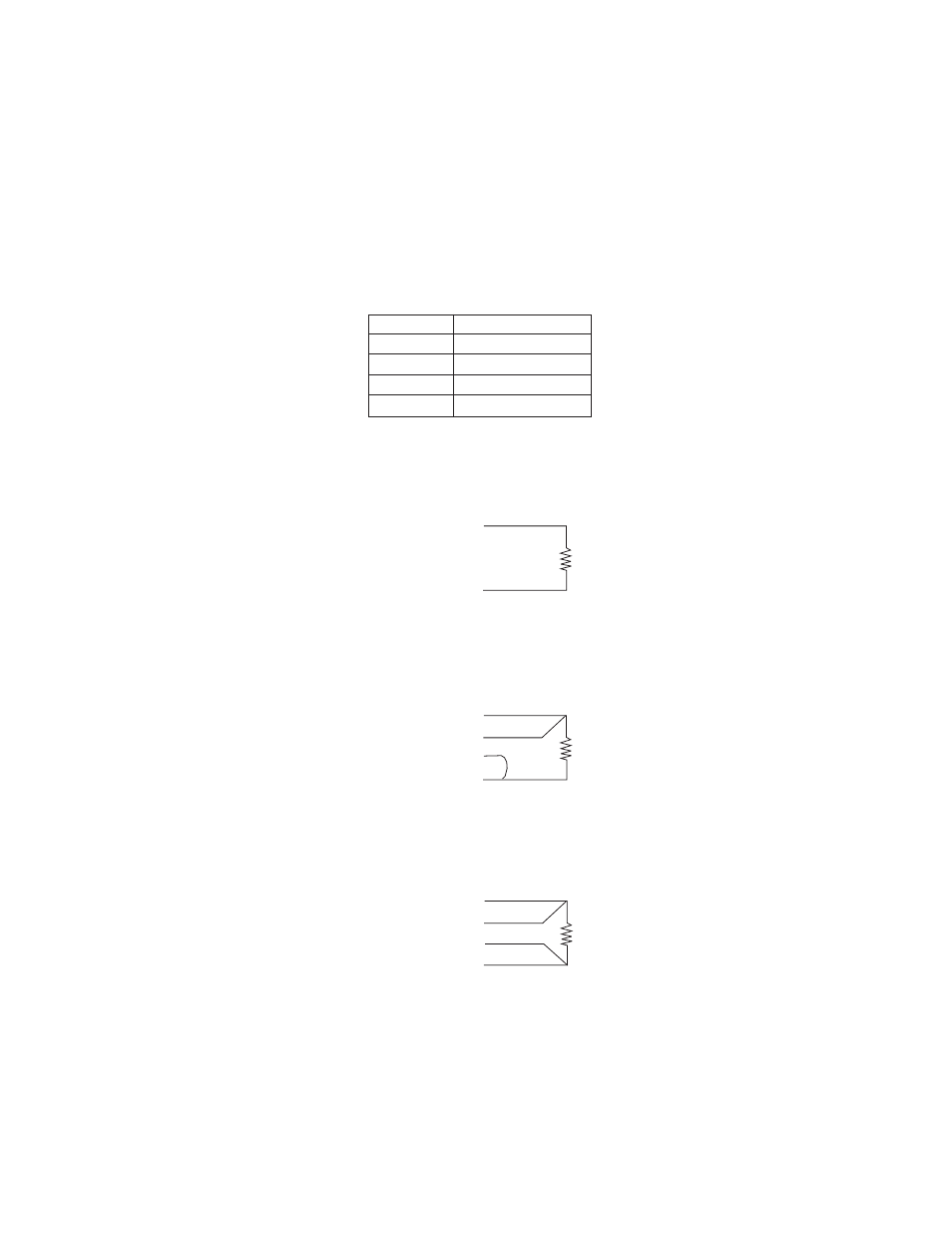

2 WIRE RTD

TA4F

1
2
3
4

3 WIRE RTD

TA4F

1
2
3
4

4 WIRE RTD

TA4F

1
2
3
4

PIN

FUNCTION

1

2W+

2

4W+

3

4W–

4

2W–
