44
9.7 IP Board Configuration
9.7.1 Minimum system requirements
(version with IP Board only)
Choose one of the following configurations,
according to the number of channels to be controlled
CHANNELS CPU MEM HDD
16 Intel Core 2
Duo 2.4 GHz 1GB 250GB
32 Intel Core
2 Duo 2.66
GHz 2GB 250GB
49 Intel Core 2
Quad 2.66
GHz 4GB 250GB
64 Intel Core 2
Quad 2.66
GHz 4GB 250GB
Tab. 13
9.7.2 Configuration procedure
Once the pan & tilt has been preset and configured
("7.2.5 Connecting the Ethernet cable (for IP board
version only)", page 20) start configuring the IP
parameters of the pan & tilt.
The IP address of the various units should be
configured using a PC with a Microsoft Windows Xp®
service pack 2 or Microsoft Windows Vista® (Business
Edition or Enterprise Edition) OS and Microsoft
Internet Explorer® software.
Set the IP address of the PC as 192.168.0.1 (or
192.168.0.2 etc.).
To configure the unit, connect it physically to the
LAN, power it and run the browser Microsoft Internet
Explorer® version 6.0 or above.
j To set the IP address of the various units,
power them, taking care to connect them
one at a time to the LAN (switch/hub).
Configure the unit and insert the settings
for at least the IP address and host name.
When the unit has all the desired settings,
connect the ethernet cable and go on to
configure the next unit.

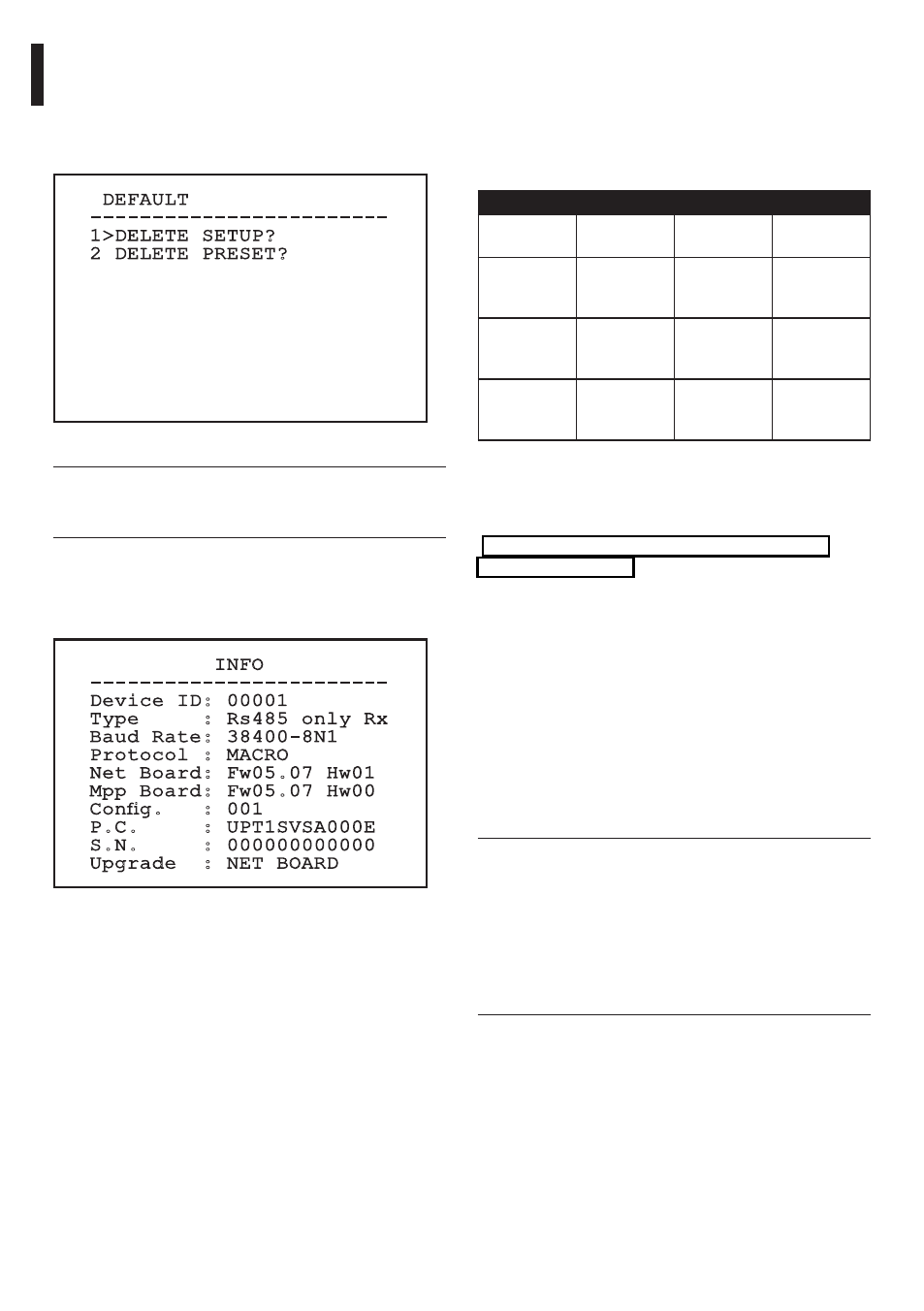

9.6.10 Default menu
01. Delete Setup: Resets all the parameters except
the Presets.
02. Delete Preset: Deletes all previously stored
presets.
DEFAULT
------------------------
1>DELETE SETUP?
2 DELETE PRESET?
Fig. 100
h The above mentioned operations cause the
loss of all previously stored data (i.g. Preset,
Patrol, Autopan, Home…).
9.6.11 Info Menu
The menu is used to check the configuration of the
device and the installed firmware version.
INFO
------------------------
Device ID: 00001
Type : Rs485 only Rx
Baud Rate: 38400-8N1
Protocol : MACRO
Net Board: Fw05.07 Hw01
Mpp Board: Fw05.07 Hw00
Config. : 001
P.C. : UPT1SVSA000E
S.N. : 000000000000
Upgrade : NET BOARD
Fig. 101
