9.6.7.5 Preset Menu (Preset Utilities)
Once inside the Utilities Configuration menu it is
possible to set the following parameters:
01. Scan Speed: This is the reference speed used
when a preset position is recalled by the Scan
function.
02. Default Speed: Changes the default speed
of the Presets. This value is used based on the
function Set Speed? to assign the same speed
to all Presets .
03. Default Dwell time: Changes the default pause
of the Presets. This value is used based on the
function Set Dwell Time? to assign all Presets
the same pause time.
04. Ramp Value: The Ramp parameter is used
to change start and stop times. The higher
the number, the greater the acceleration/
deceleration during starting/stopping.
05. Set Speed?: To assign all Presets the same
default speed.
06. Set Dwell Time?: To assign all Presets the same
default dwell time.
PRESET UTILITIES
------------------------
1>SCAN SPEED : 20.00
2 DEFAULT SPEED : 10.00
3 DEFAULT DWELL : 3
4 RAMP VALUE : 12
5 SET SPEED?
6 SET DWELL TIME?

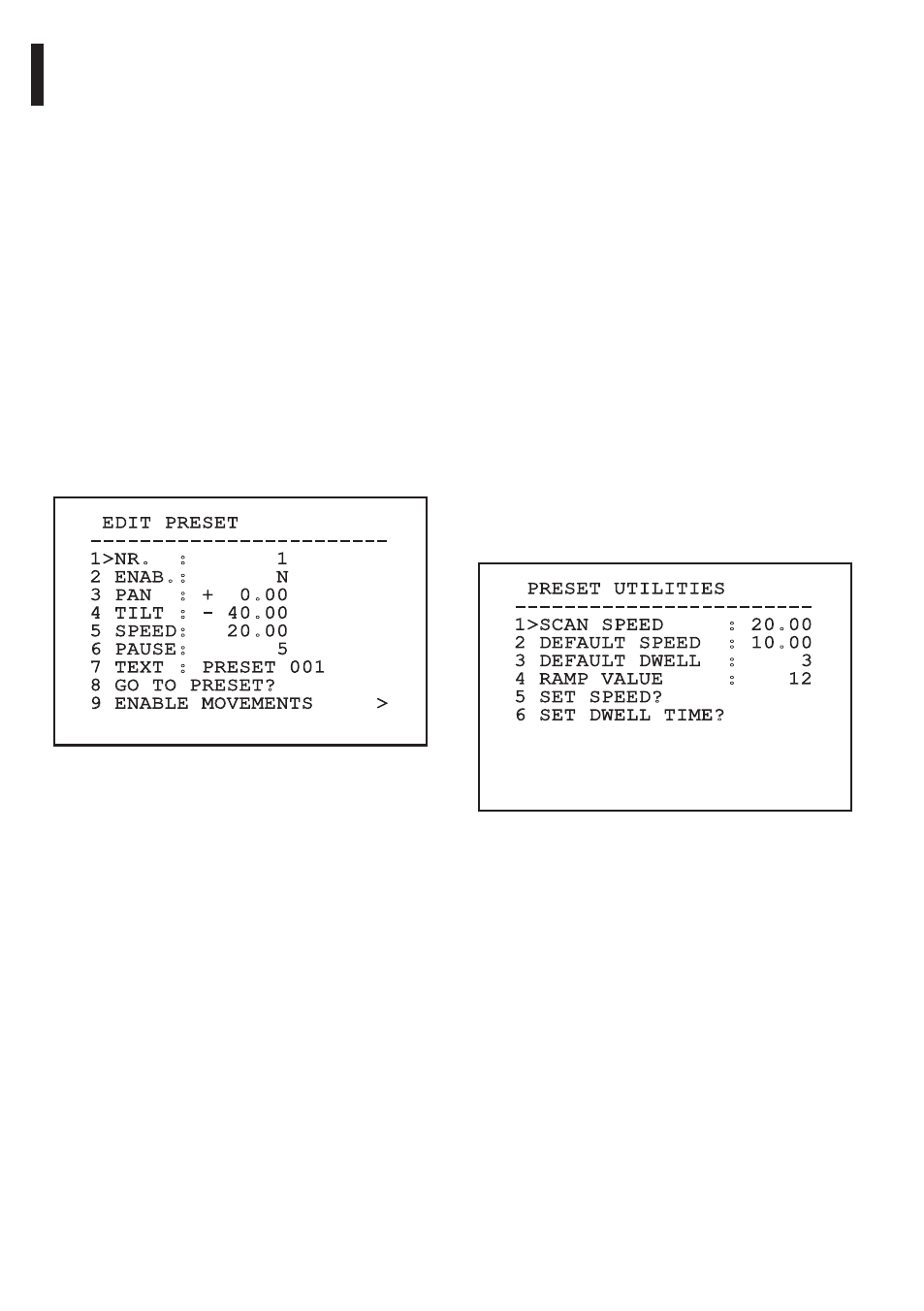

Fig. 90
9.6.7.4 Preset Menu (Edit Preset)
Once inside the Edit Preset menu it is possible to set
the following parameters:
01. Number: The Preset number to be edited.
02. Enabling: Enabling preset.
03. Pan: Pan position in degrees.
04. Tilt: Tilt position in degrees.
05. Speed: The speed at which the position is
reached when preset is recalled from the Patrol
and Scan function.
06. Pause: Sets the dwell time in seconds before
starting the next movement in Patrol.
07. Text: The text that is displayed when the preset
position is reached.
08. Go To Preset: Obliges the Pan & Tilt to move to
the selected Preset position.
09. Enable Movements: Allows the Pan & Tilt to
shoot new Preset positions.
EDIT PRESET
------------------------
1>NR. : 1
2 ENAB.: N
3 PAN : + 0.00
4 TILT : - 40.00
5 SPEED: 20.00
6 PAUSE: 5
7 TEXT : PRESET 001
8 GO TO PRESET?
9 ENABLE MOVEMENTS >
Fig. 89
From the menu it is possible to directly store the
preset by sending the Iris Close command that
enables the pan & tilt movements.
