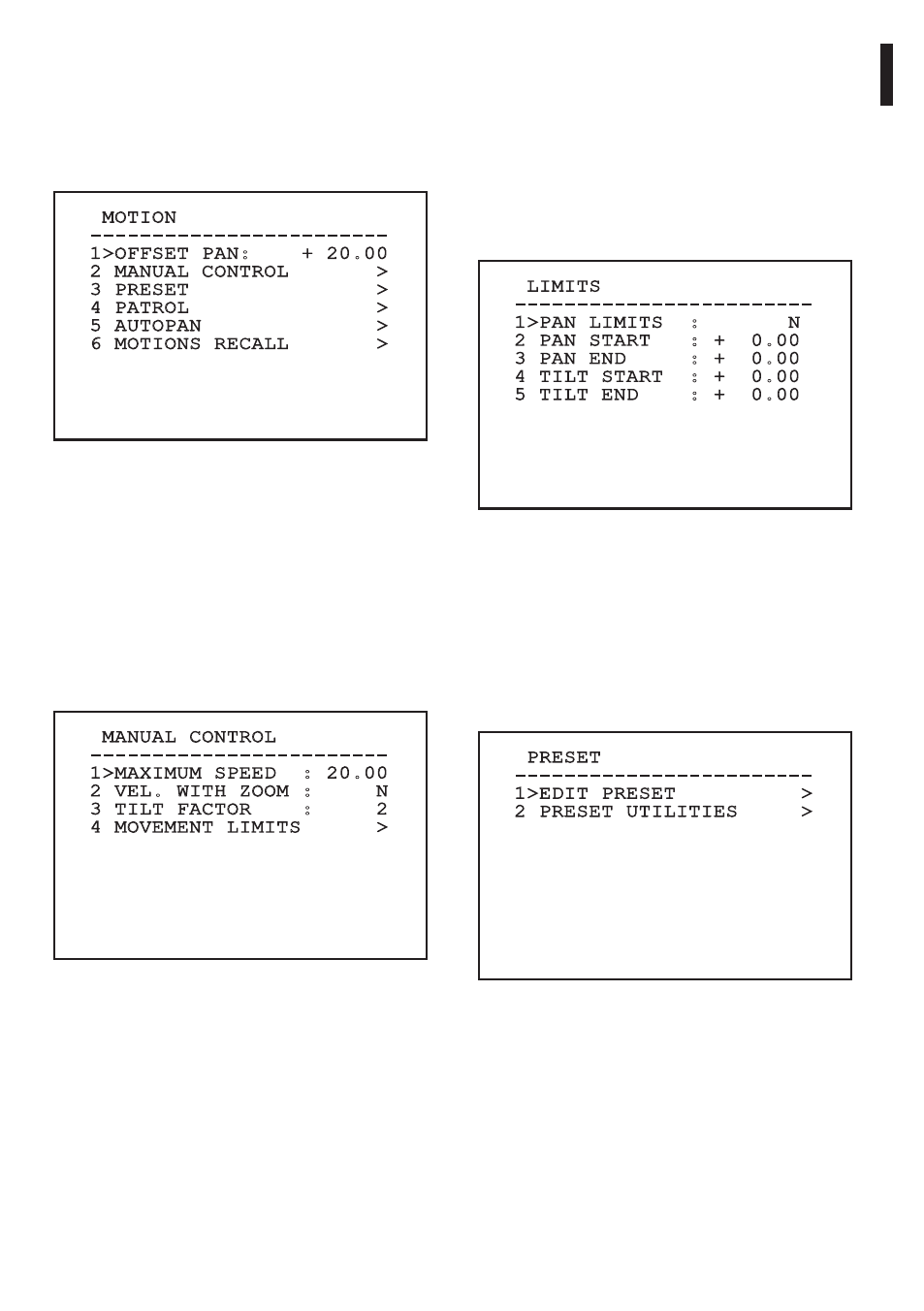

9.6.7.2 Manual Control Menu (Limits)

Once inside the Limits menu it is possible to set the
following parameters:
01. Pan Limits: Enables the limits of Pan.
02. Pan Start: Sets the start limit of Pan.
03. Pan End: Sets the end limit of Pan.
04. Tilt Start: Sets the start limit of Tilt.
05. Tilt End: Sets the end limit of Tilt.

LIMITS

------------------------

1>PAN LIMITS : N

2 PAN START : + 0.00

3 PAN END : + 0.00

4 TILT START : + 0.00

5 TILT END : + 0.00

Fig. 87

This is a dynamic self-configuration menu based on
che choice made and displays the parameters on
which it is possibile to operate.

9.6.7.3 Preset Menu

01. Edit Preset: Allows access to Edit Preset menu.
02. Utilities Configuration: Allows access to

Utilities Configuration menu

PRESET

------------------------

1>EDIT PRESET >

2 PRESET UTILITIES >

Fig. 88

04. Patrol: To access the submenus used to edit

Patrol values.

05. Autopan: To access the submenus used to edit

Autopan values.

06. Motions Recall: To access the submenu which

manages automatic load of the movements.

MOTION

------------------------

1>OFFSET PAN: + 20.00

2 MANUAL CONTROL >

3 PRESET >

4 PATROL >

5 AUTOPAN >

6 MOTIONS RECALL >

Fig. 85

9.6.7.1 Manual Control Menu

01. Maximum Speed: Sets the maximum manual

speed.

02. Speed With Zoom: When enabled, this

parameter automatically slows down the PAN &
TILT speed, based on the ZOOM factor.

03. Tilt factor: Sets the reduction factor of the tilt

axis manual speed.

04. Movement Limits: To access the Limits menu

MANUAL CONTROL

------------------------

1>MAXIMUM SPEED : 20.00

2 VEL. WITH ZOOM : N

3 TILT FACTOR : 2

4 MOVEMENT LIMITS >

Fig. 86
