9.6.6.12 Advanced setting menu (Other)

01. Sharpness: Sets the sharpness value of the

image.

02. High Resolution: Enables the High Resolution

function. The output video signal has a higher
resolution.

03. Wide Dynamic: Enables the Wide Dynamic

function. It improves vision when some zones
within the frame are much brighter than others.

04. Stabilizer: Enables the electronic image

stabilization function. Recommended for
installations subject to vibrations.

05. Progressive Scan: Enables the Progressive

Scan function. Gives a more stable image when
the Pan & Tilt is connected to a video server.

06. Noise Reduction: Sets the noise reduction

level. Vary the parameter according to the
environmental conditions to obtain a higher
contrast image.

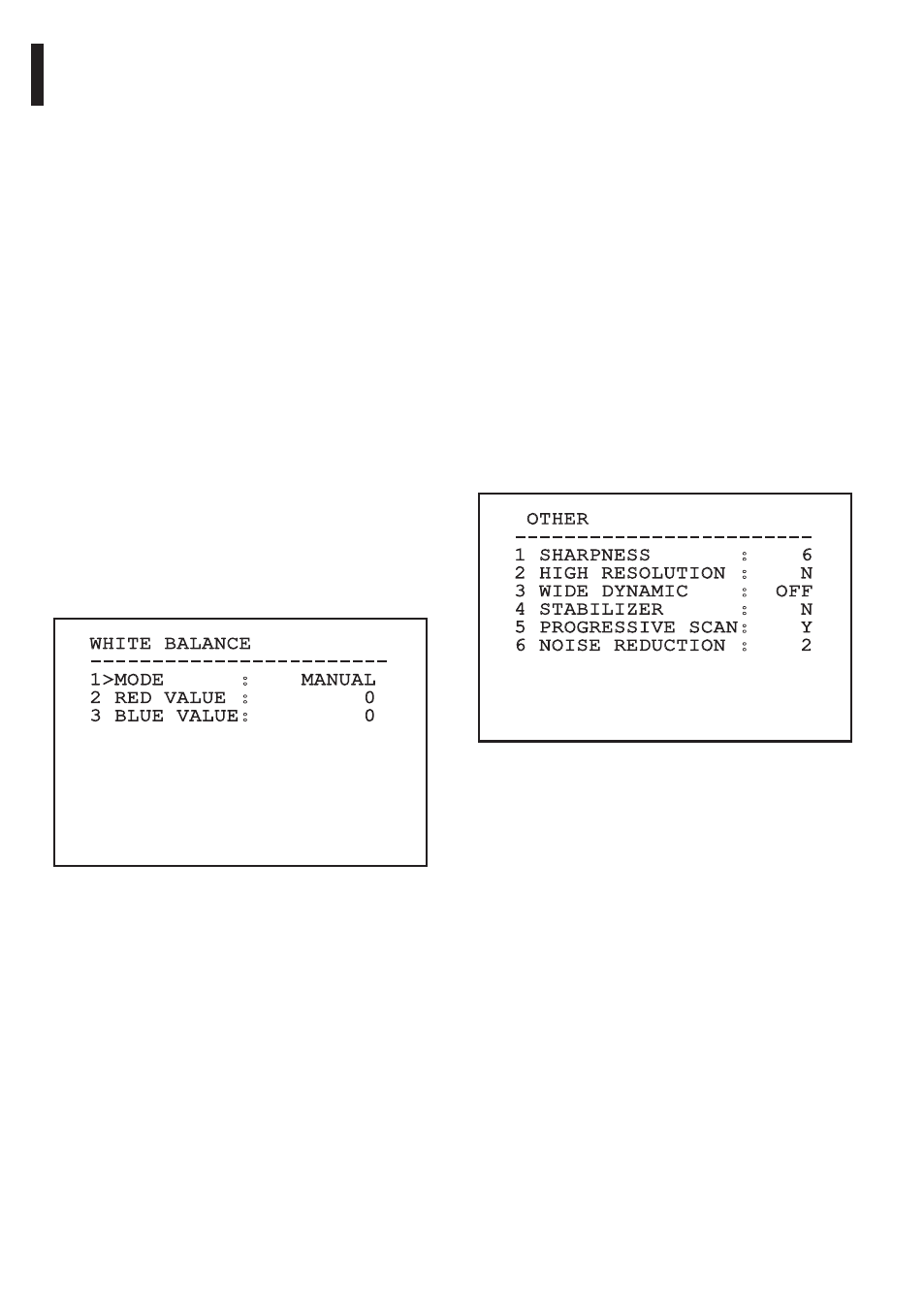

OTHER

------------------------

1 SHARPNESS : 6

2 HIGH RESOLUTION : N

3 WIDE DYNAMIC : OFF

4 STABILIZER : N

5 PROGRESSIVE SCAN: Y

6 NOISE REDUCTION : 2

Fig. 84

This is a dynamic self-configuration menu based on
the Pan & Tilt model.

9.6.7 Movement menu

01. Offset Pan: The pan & tilt has a mechanically

defined 0° position. The Offset Pan function
allows the definition of a different 0° position
using software.

02. Manual Control: To access the submenus

operating the parameters associated with the
manual movements of the device.

03. Preset: To access the submenus used to to edit

Preset values.

9.6.6.11 Advanced setting menu (White
Balance)

Once inside the White Balance menu it is possible to
set the following parameters:
01. Mode: Sets the type of control on White Balance.

The possible values are:
Auto: Sets automatic white balance. This is

the recommended setting;

ATW: Enables Auto Tracing White Balance;
Indoor: Sets fixed red and blue gains for

indoor applications;

Outdoor: Sets fixed red and blue gains for

outdoor applications;

Manual: Enables manual setting of red and

blue gains;

Out Auto: Sets the red and blue gain values

for outdoors;

Lamp Auto: Sets the red and blue gain values

for sodium vapour lamps;

Lamp Fixed: Sets the red and blue fixed gain

values for sodium vapour lamps.

02. Red Value: Sets the value of the red gain
03. Blue Value: Sets the value of the blue gain.

WHITE BALANCE

------------------------

1>MODE : MANUAL

2 RED VALUE : 0

3 BLUE VALUE: 0

Fig. 83

This is a dynamic self-configuration menu based on
che choice made and displays the parameters on
which it is possibile to operate.
