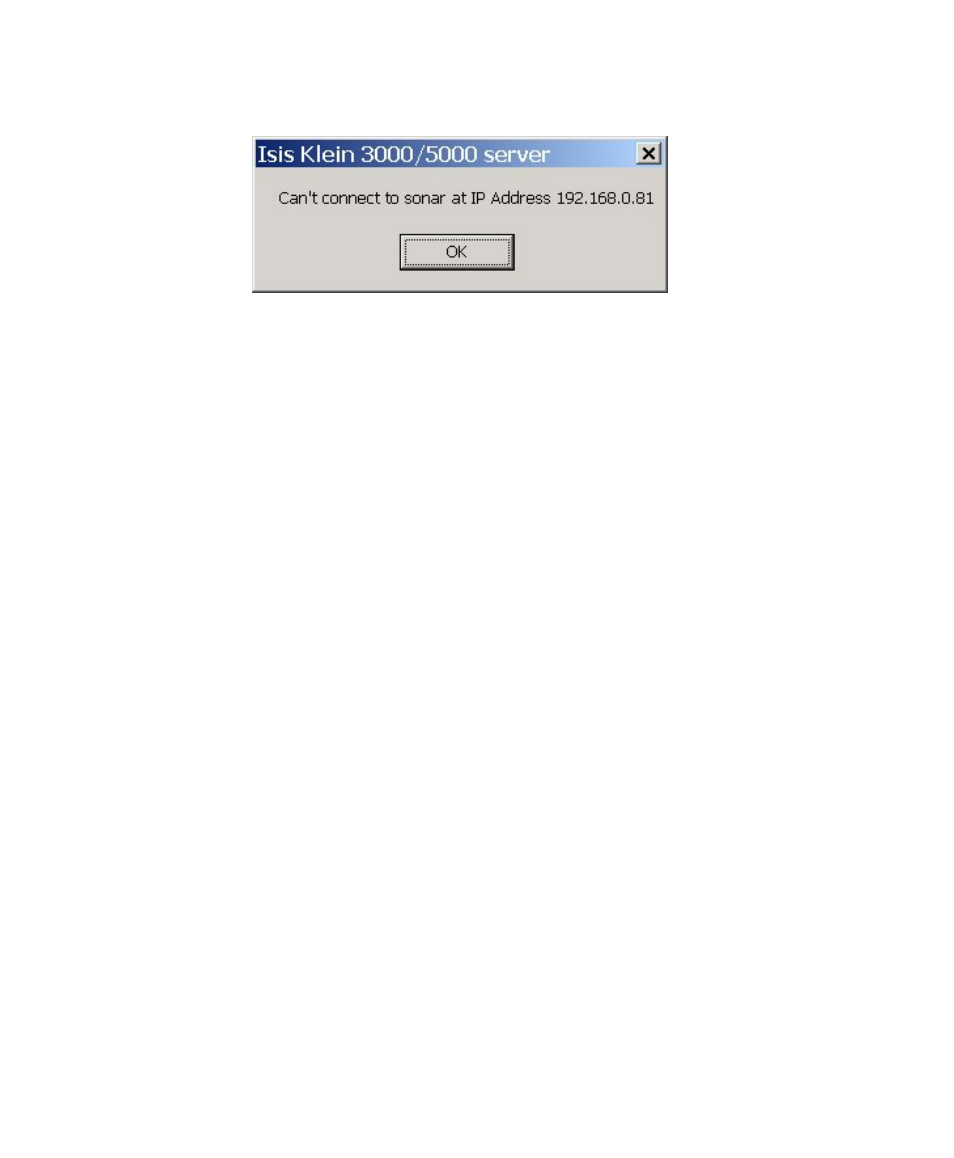

Figure I-7. Typical message if Isis Klein 3000/5000 can’t connect
Note: Assuming that the sonar is attached and running, the network connection
and Isis computer IP address can be assumed to be good; otherwise, the sonar would
have been unable to download the file
Vxworks described previously, and would have
failed to boot. The most likely cause is an incorrect server IP address. Check the label
attached to the Klein TPU and make sure that the IP address set in the server (Sonar IP
address) is correct.
6. Uncheck the Standby checkbox.
The Isis waterfall should start scrolling, showing the Isis ping number and towfish
telemetry data being updated during the scroll.
Checking the box
Enable MASTER sonar control enables control of the sonar so
that the sonar range, pulse length, resolution and despeckle filter can be adjusted. In
normal operation, the speed should come from the sonar; however, the speed can
also be adjusted manually by checking the appropriate box.
Note: More than one Isis system can be connected to the sonar via an Ethernet
connection, but only one system can control the sonar. Other systems are slaves and
should NOT have
Enable MASTER sonar control checked. For details about how
these settings can affect the sonar data, see your Klein 5000 manual.
I.5.2.1 ‘More Options’ in Isis Server for Klein 5000 dialog box
Clicking
More Options in the Isis Server for Klein 5000 dialog box expands the dialog
box as shown in Figure I-8.
