June 2004 Isis® Sonar User's Manual, Volume 2

129

4. After you click

OK to acknowledge the message (you can also put a check mark

in the

Don’t show me this warning again box before you click OK), Isis

displays the Sidescan Sonar Information dialog box (Figure 4-3 in the Isis User’s
Manual, Volume 1).

5. From the available fields in this dialog box, choose channels, frequencies, beam

angles, beam width, etc., as you would for any other sonar; then click

OK.

Note: If you chose the DCI version of DF-1000 (from the Select Sonar dialog box),
the

Automatically start Control Program box is already checked for you in the

Sonar Information dialog box. This is the only way this sonar can operate with Isis.
Isis then displays the EdgeTech DF-1000 DCI Control dialog box (Figure I-2) after
you click

OK in the Sidescan Sonar Information dialog box.

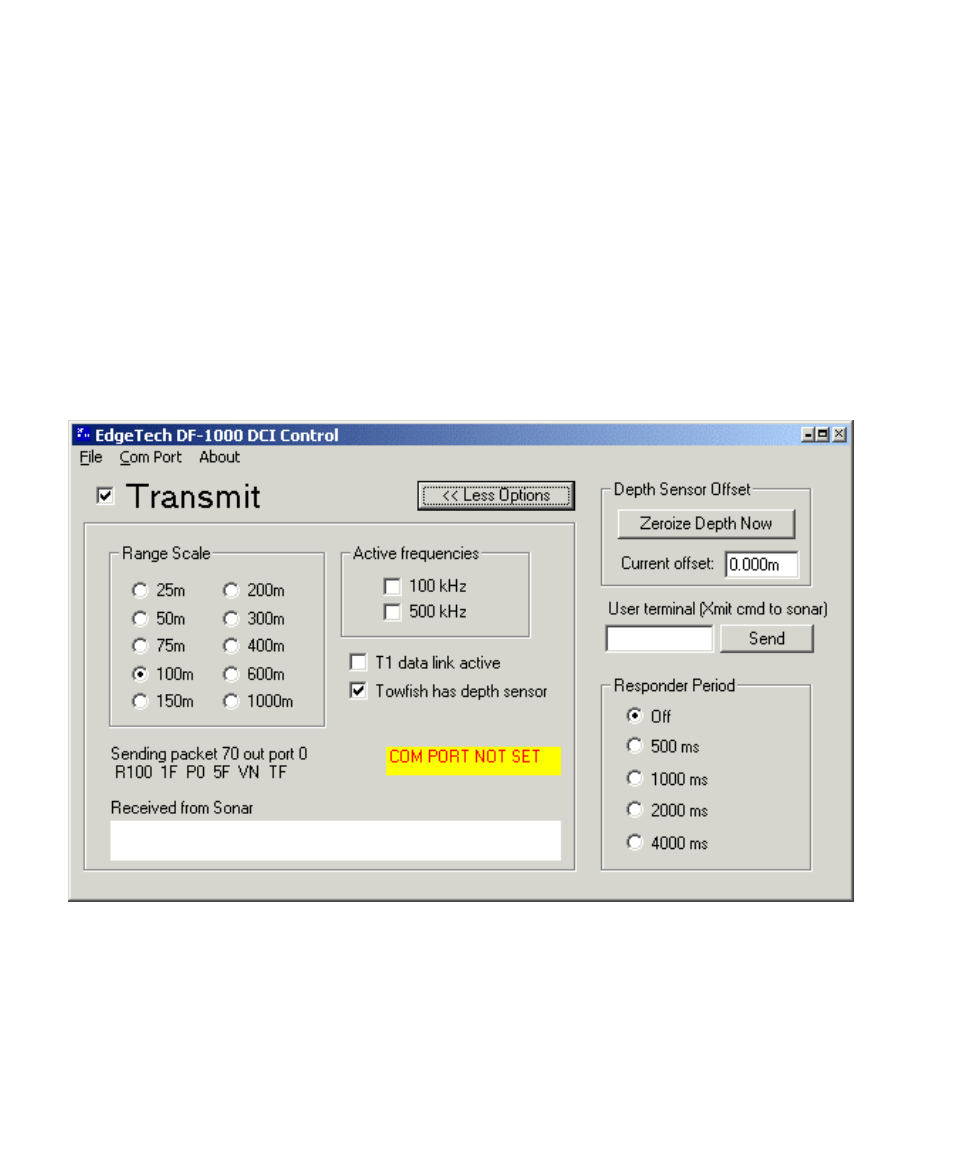

Figure I-2. EdgeTech DF-1000 DCI Control dialog box

Appendix I: Working with Specific Sonars
