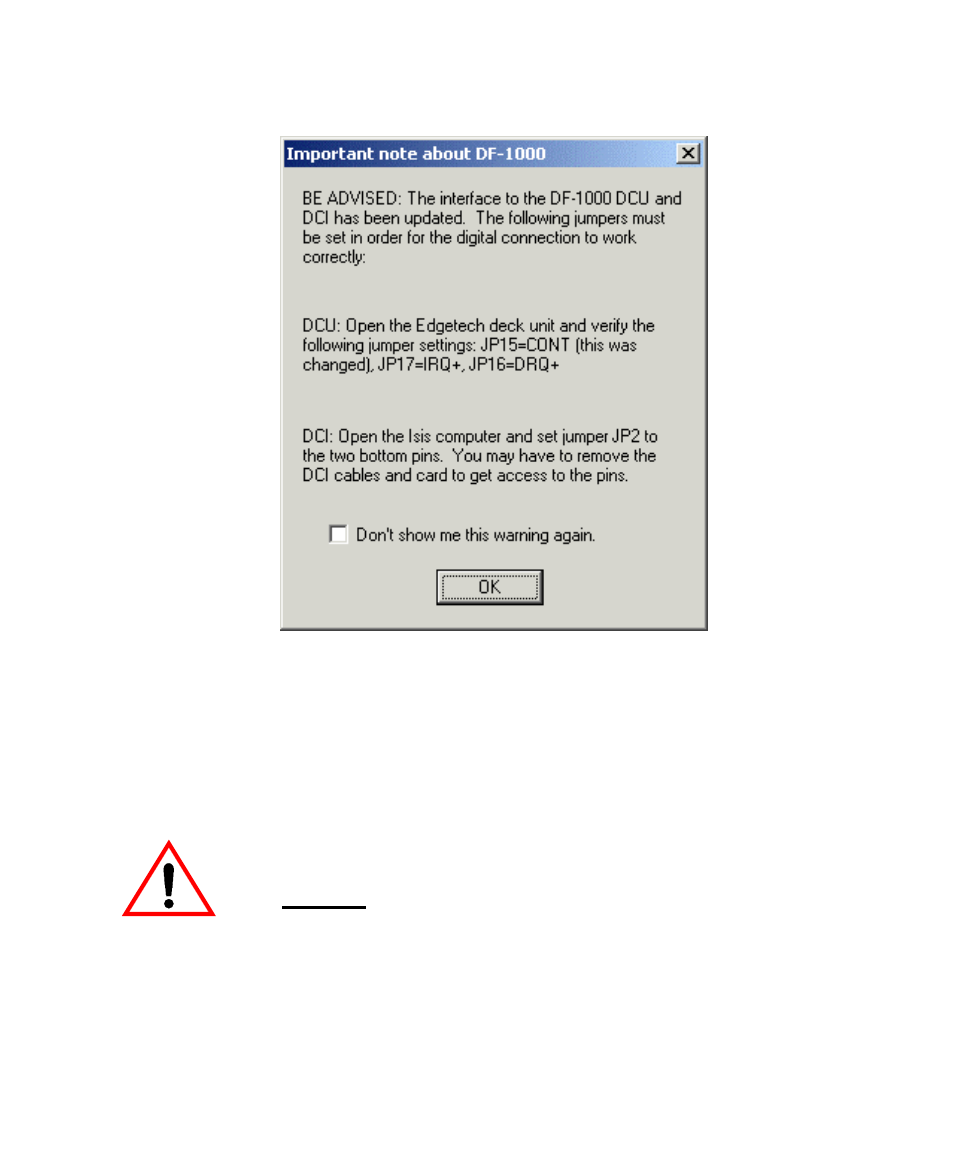

Figure I-1. Opening advisory screen about EdgeTech DF-1000 sonars
3. Observe the jumper settings that must be established for Isis to work correctly
with these sonars.
Notice to Isis users with DF1000 DCU digital interface:
Starting with Isis version 4.14 the method of interfacing to this sonar changed.
Version 4.14 requires some different links to be made in the EdgeTech DF1000
DCU deck unit. The message that appears in Isis versions 4.14 through 4.31
gives
incorrect
information on the details of these changes. The correct
information is:
“Open the Edgetech deck unit and verify the following jumper
settings: JP15=CONT, JP17=IRQ+, JP16=DRQ+.”
