Bushing

for 7...10 mm diameter cable
(8 x 0.5 mm

shielded cable)

Sensor protection

Stainless steel filter
(part no. HM46999)

Housing dimensions

145 x 120 x 65 mm

Sensor head dimensions (see Figure)

length 170 mm, Ø 13.5 mm:

Cable diameter

5.5 mm

Weight (without display cover and power supply module):

With 2 m cable

1300 g

With 5 m cable

1600 g

With 10 m cable

2100 g

Weight of display cover

420 g

Weight of power supply module

240 g

180 / 400

216

/ 435

Ш13.5

Ш12

Tapered thread

Parallel thread

Probe pushed down

Probe up

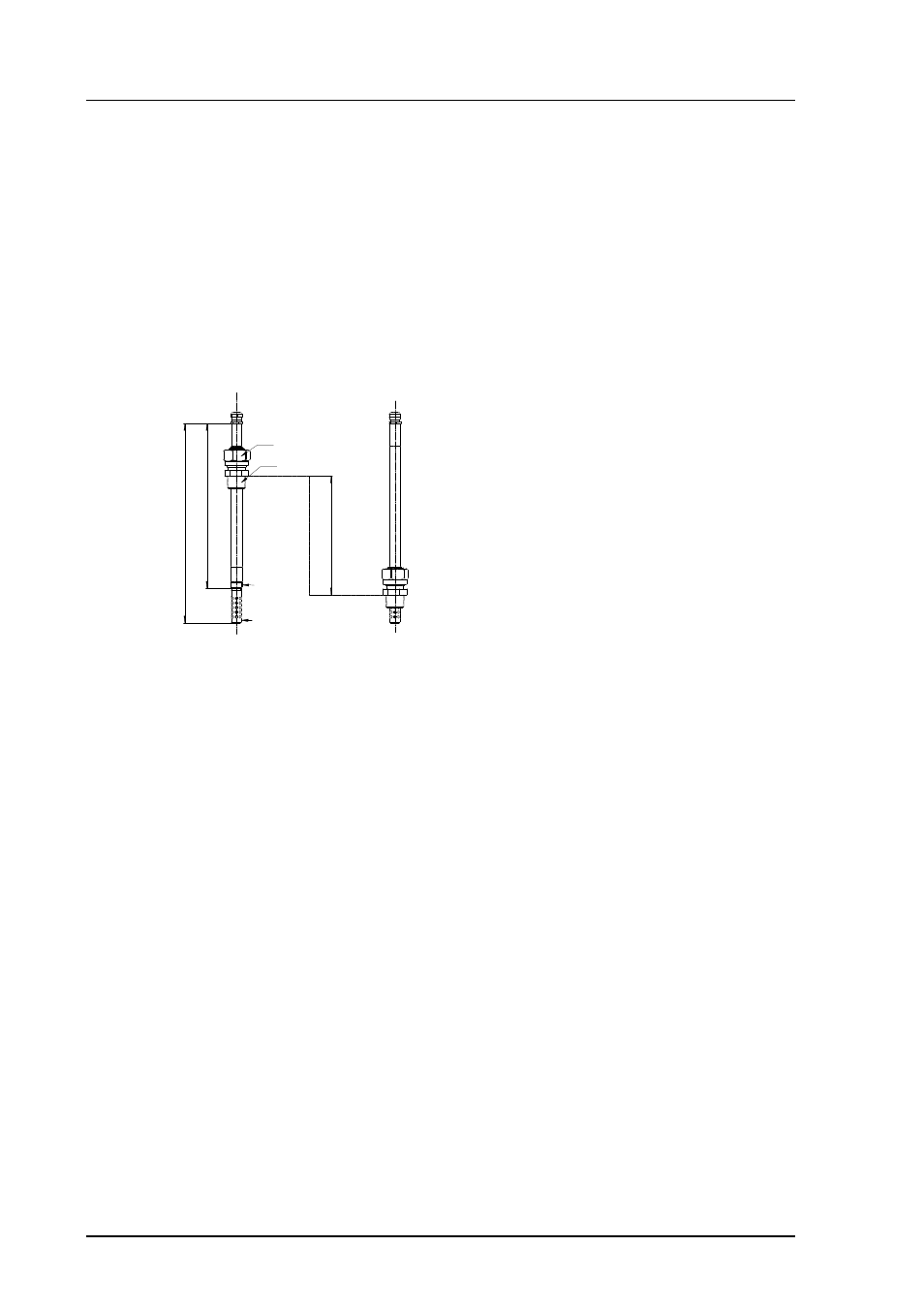

A:Probe 180mm adjustment
range 120mm

Probe 400mm adjustment
range 340mm
