HMP228
Operating Manual
M210282en-A
4
2.2 Mounting

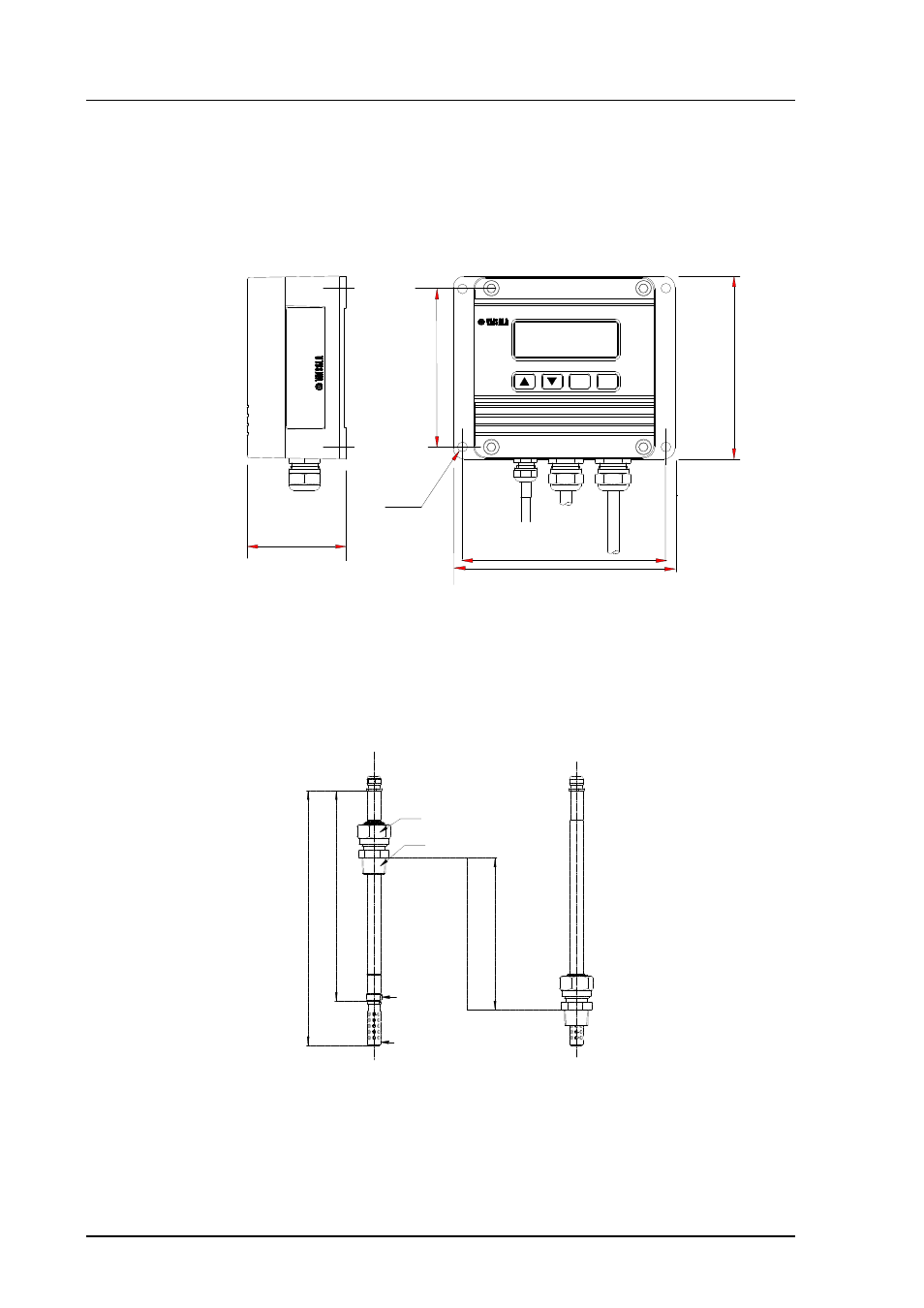

In Figures 2.2.1 and 2.2.2 you can see the dimensions of the HMP228
transmitter and probe:
ø6.5
CL ENT
133
145
104
120
65
Figure 2.2.1 Dimensions of the HMP228 electronics housing (in mm)
Figure 2.2.2 Probe dimensions (in mm).
A
180 / 400
216
/ 435
Ш13.5
Ш12
Tapered thread
Parallel thread
Probe pushed down Probe up
A:Probe 180mm adjustment
range 120mm
Probe 400mm adjustment
range 340mm
