Chapter 7 _____________________________________________________________ Technical Data
VAISALA ________________________________________________________________________ 67
1210-006

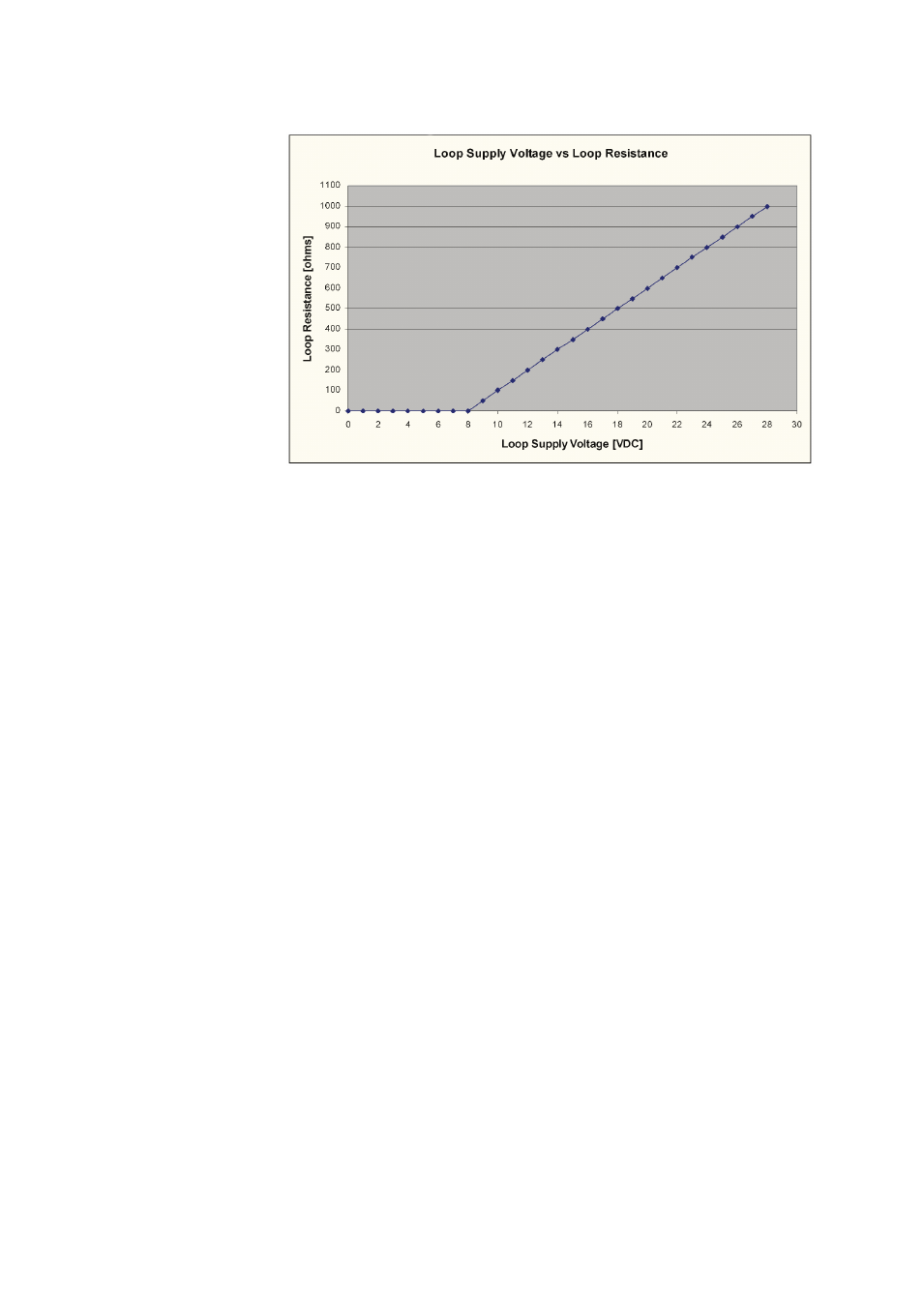

Figure 18
Loop Supply Voltage Versus Loop Resistance
Mechanics
Service cable connector
M8 series 4-pin (male)
Wire size for screw terminals
0.5 ... 1.5 mm
2
Probe cable lengths
Plastic probe
0.65 m, 1.55 m, 2.9 m
Stainless steel probe
1.55 m, 2.9 m
Materials
Plastic probe
PPS
Stainless steel probe
AlSI316/PPS
Probe mounting clamp
AISI316
Probe mounting flange
Silicone/ AISI316
Mounting bracket bottom plate
Al
Mounting bracket lid
ABS/PC
Module housing
ABS/PC
