Installation Accessories
For order codes of the installation accessories, see section Options and
Accessories on page 68.
Probe Mounting Flange
The probe mounting flange is used to seal the cable pass-through in the
chamber wall. The flange can also be used to hold the probe itself, in
case the probe cannot be mouted on the chamber wall otherwise. This
mounting is not ideal since leaving the probe cable completely outside
the measurement environment may cause heat conduction that affects the
measurement.
0911-109

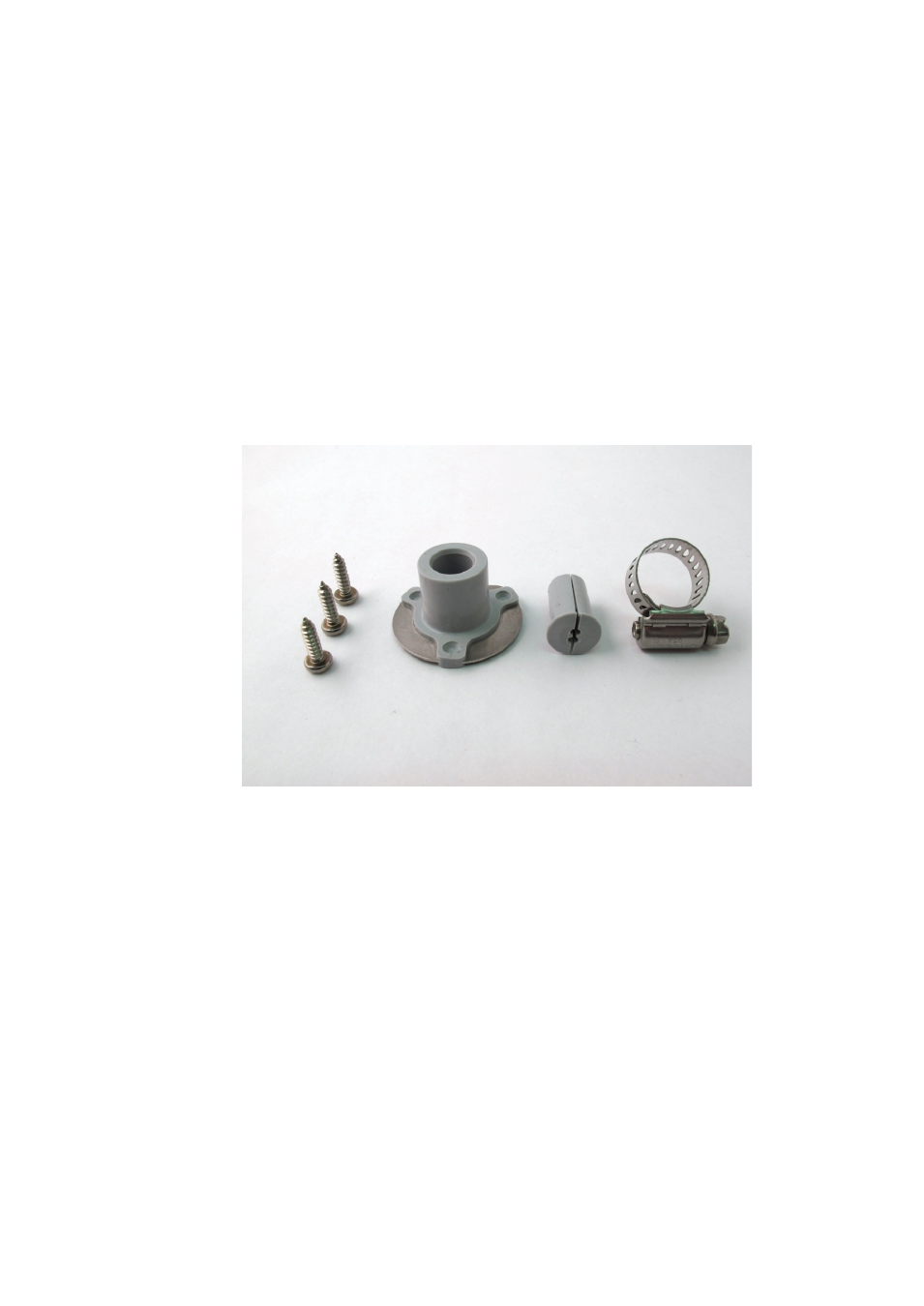

Figure 4 Optional Probe Mounting Flange
