Chapter 2 ___________________________________________________________ Product Overview
VAISALA ________________________________________________________________________ 19
Probe Mounting Clamp
The optional mounting clamp makes it easy to install the probe on the
wall of the measurement environment. The probe can be detached for
calibration simply by loosening the lower screw.
Installing the entire probe in the measurement environment prevents heat
conduction to the sensor, and is the recommended installation method.
To mount the HMM100 probe to the mounting clamp:
1.

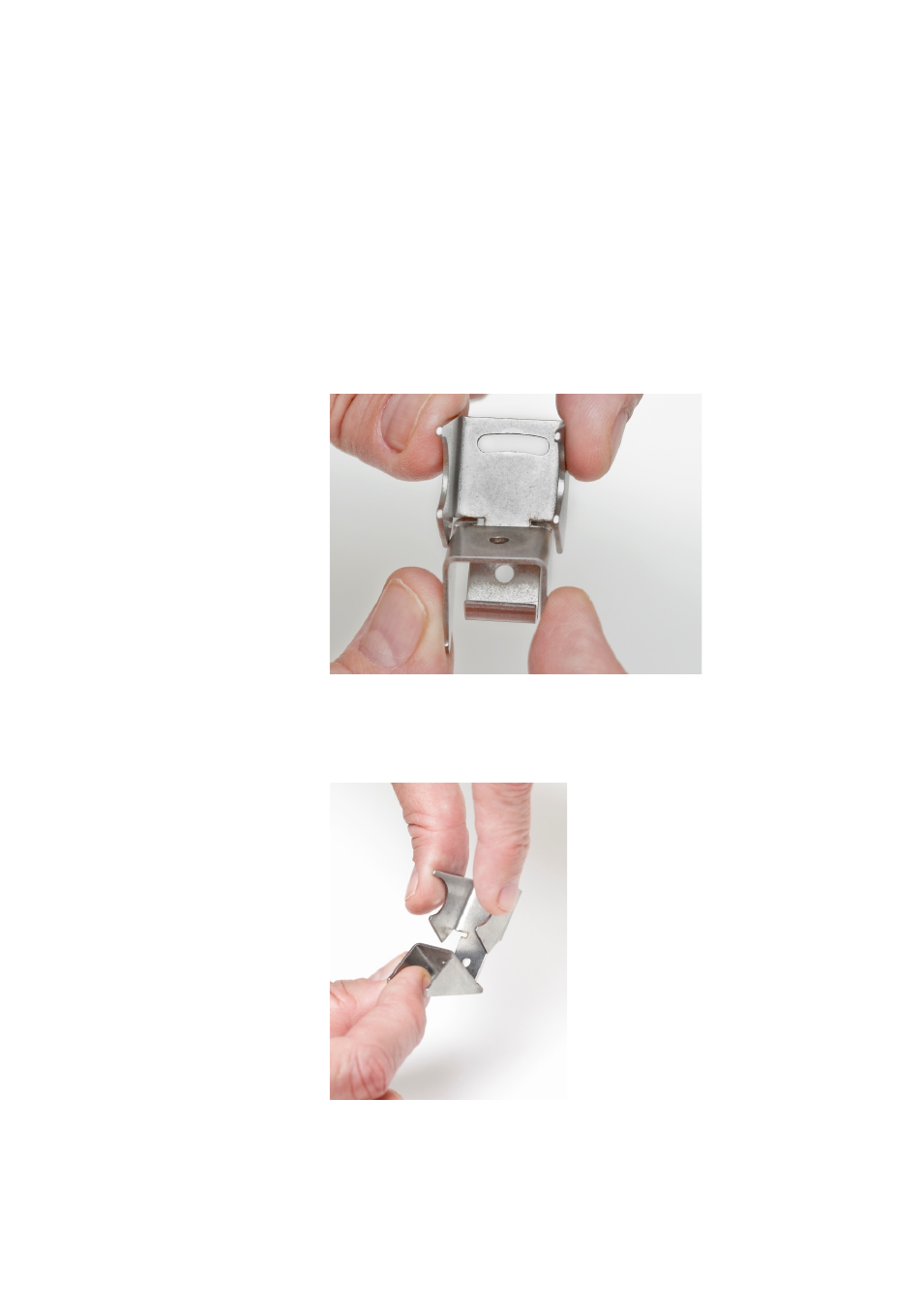

Align the slots on the clamp parts as shown in Figure 7 below.
1209-001
Figure 7
Aligning Mounting Clamp Slots
2.
Slide the lower clamp part over to the bottom end of the upper part
as shown in Figure 8 below.
1209-002
Figure 8
Sliding the Lower Clamp Part
