FX MODES AND PROPERTIES

Each OutBack FX Inverter/Charger comes with various default values set at the factory. Typically, a

single FX installation will retain these values, but multiple FXs will require programming using the

OutBack MATE. Viewing the status of an FX and adjusting its functions also requires a MATE.

SETUP SCREENS

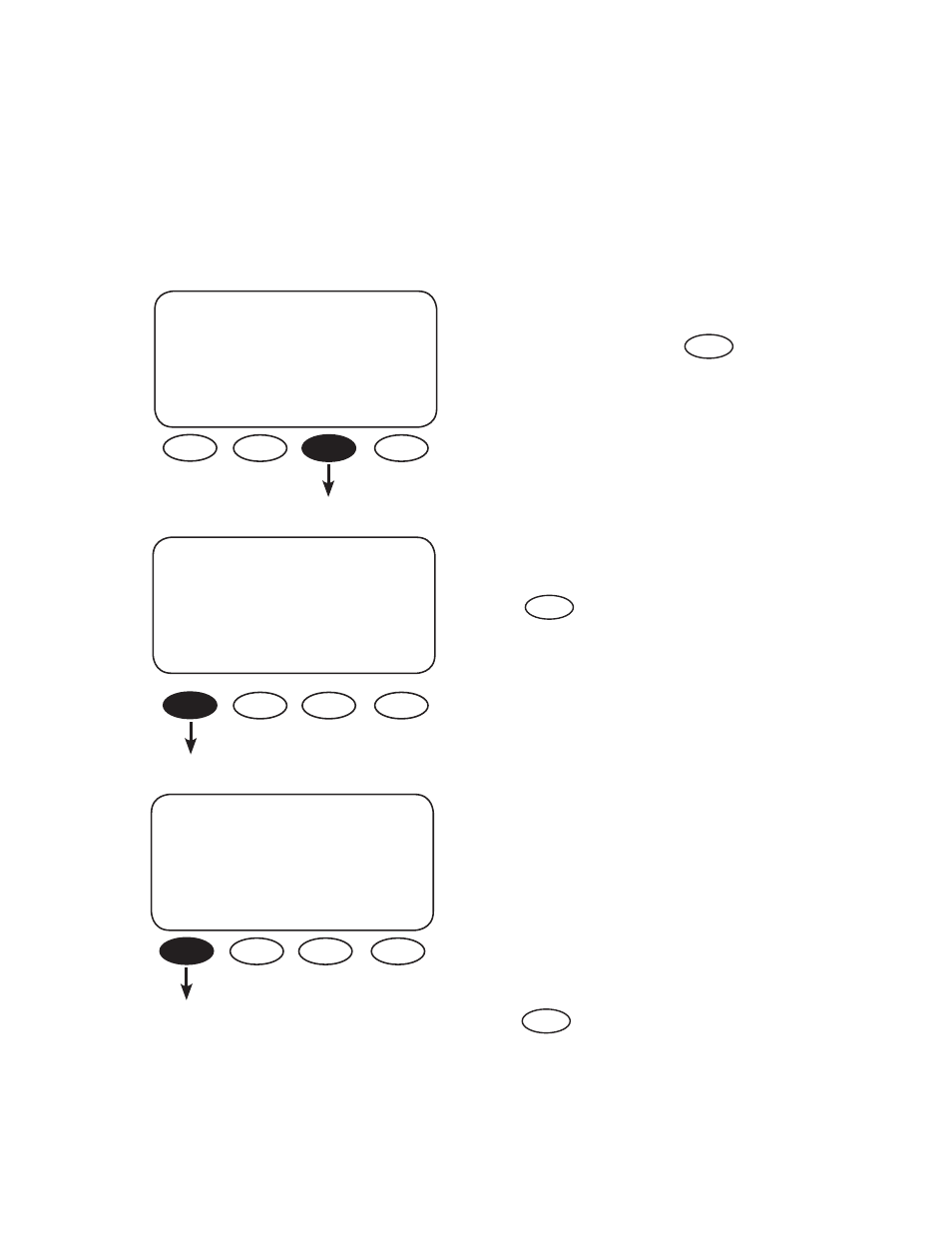

From the MAIN screen, press

NOTE:

Pressing and holding the fi rst two soft keys

at the same time will always bring up the MAIN
Menu screen.

Press

MAIN--------------------------

12:12:16A

SUM STATUS SETUP ADV

SETUP------------------------------
choose product:

FX

MATE

Two choices are available in the choose category

screen:

• Search (SRCH) which adjusts the search

mode

settings

• INPUT which for selecting the AC INPUT

and current limit adjustment

Press to open the search screens.

SETUP/FX--------------------------
choose category:

SRCH INPUT

MAIN

SETUP

FX

SRCH
