32

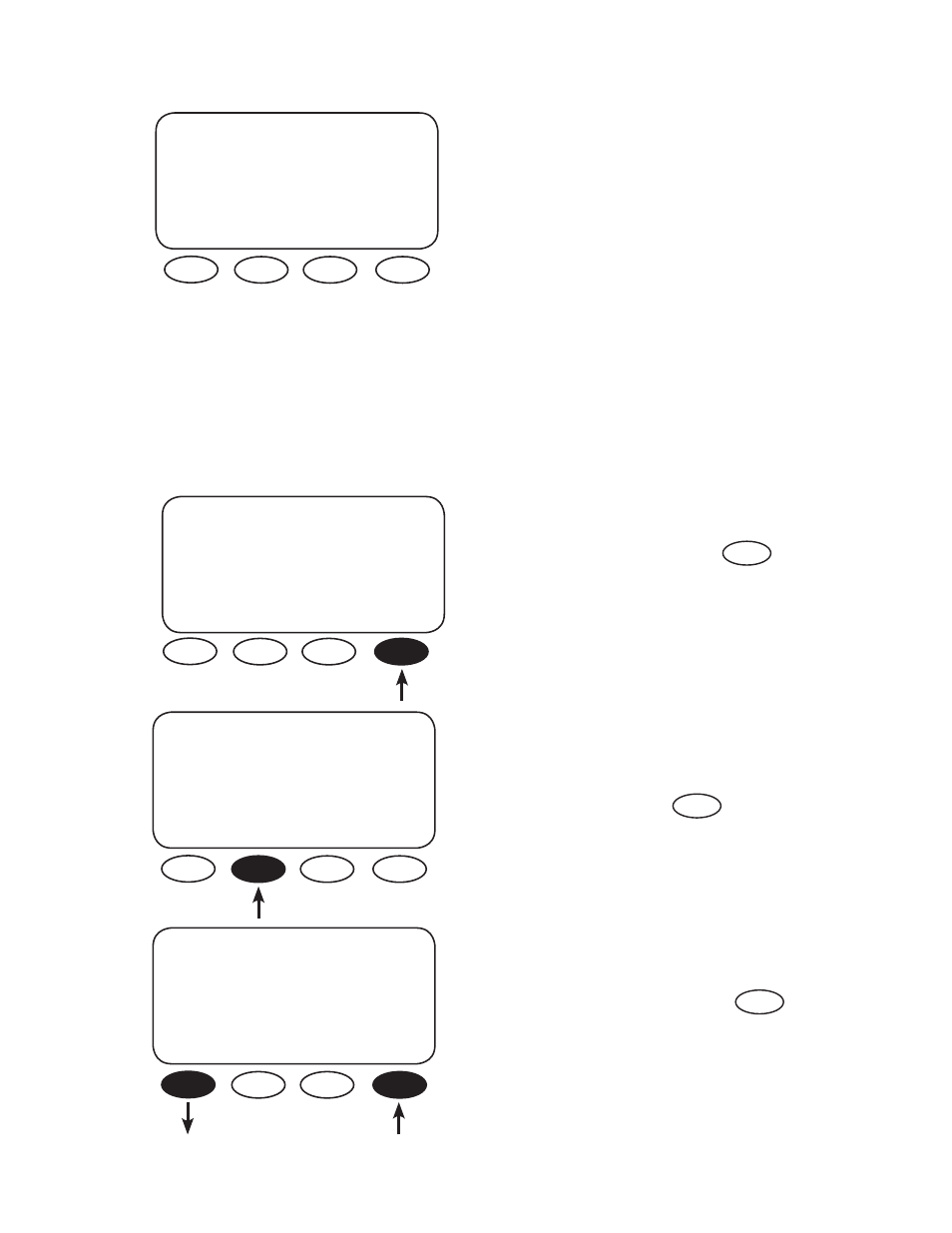

ADV/FX/STACK----------P01

stack 3ph Master

phase

DOWN INC DEC PORT

3-Phase (3-ph) Slave

• Set the two Slave FX’s to 3ph Slave and make sure they are in Ports 02 and 03 of the HUB.

• There are no selections to diff erentiate between phases B and C.

• When you set the jumper in the HUB for 3-phase, the HUB assigns each Slave to its phase. 3ph Slave

on HUB Port 2 is considered phase B.

• 3ph Slave on HUB Port 3 is considered phase C.

The FX has now been set to 3ph Master status.

ADV/FX/STACK----------P01

stack 3ph Master

phase

DOWN INC DEC PORT

From the 3ph Master screen, press until

P02 appears.

ADV/FX/STACK-----------P02

stack 1-2ph Master

phase

DOWN INC DEC PORT

Each new Port screen in the stacking menu will

open with 1-2ph Master displayed. To change the

stacking designation, press until 3ph

Slave appears.

ADV/FX/STACK----------P02

stack 3ph Slave

phase

DOWN INC DEC PORT

After establishing P02 as a 3ph Slave, move onto

P03 and repeat the procedure. Press when

fi nished

.

PORT

INC

DOWN
