21

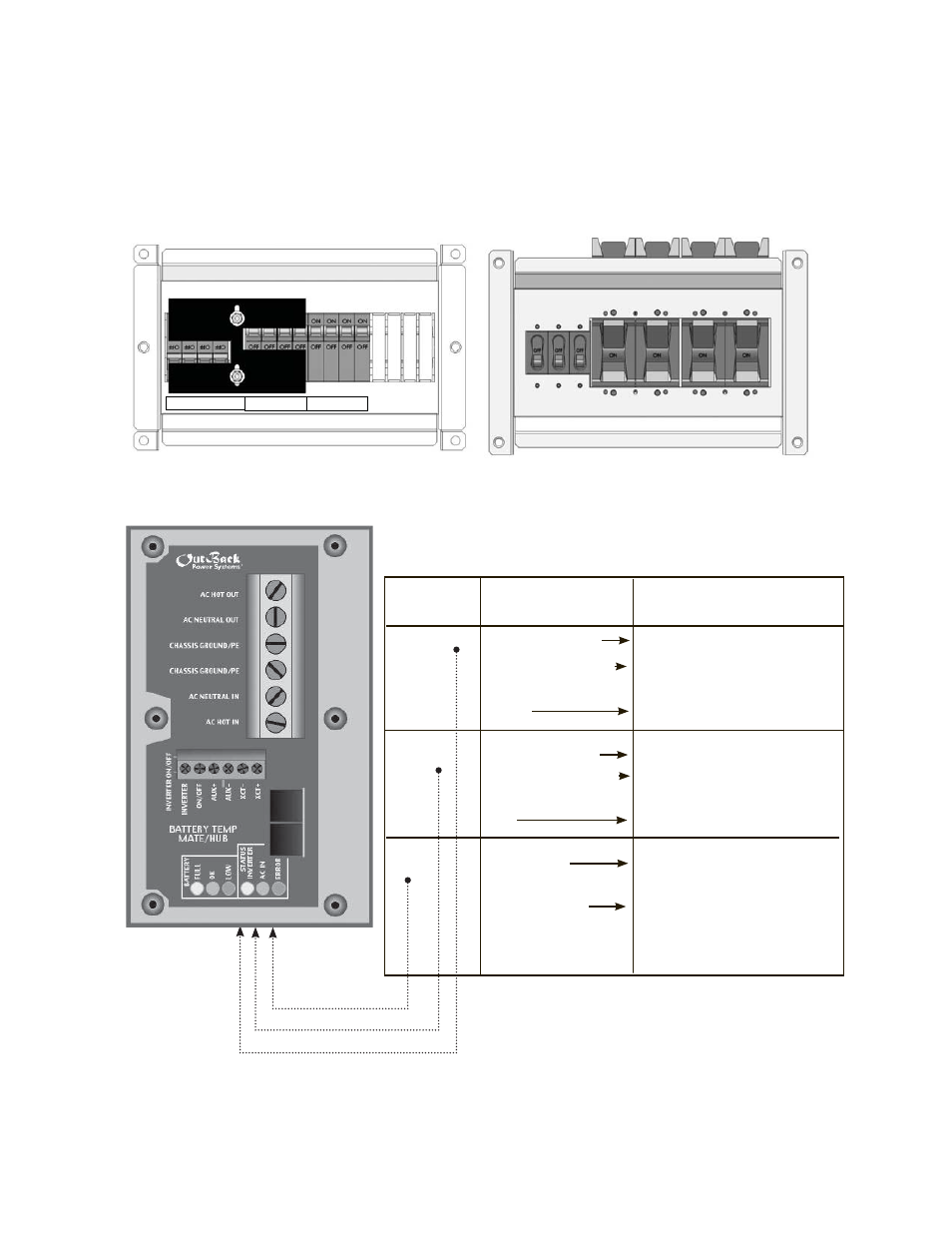

LED Color LED Action LED Indicates

Green Solid GREEN Inverter ON
Flashing GREEN Search Mode/Slave Power

Off Inverter OFF

Yellow Solid YELLOW AC Source is Connecteced

Flashing YELLOW

AC Input Live-Waiting to

Connect to the FX

Off No AC Input Present

Red Solid RED Error-Error Message,

displays on the MATE

Flashing RED Warning: Non-critical FX

fault, the MATE can access

this information

AC Breakers Off

DC Breakers On

2. With the FXs connected to the HUB, turn only the DC breakers ON and power up the components.

All AC breakers should be OFF.

NOTE: For 3-phase stacking, the jumper in the HUB must be set to the 3ph position.
See the HUB Communications Manager User Guide for further information.

NOTE: Powering up the FXs can cause the red
ERROR STATUS light to blink. After 5-10 seconds,
the green INVERTER light should be bright and
the ERROR and AC IN lights dark. The FX is now
producing AC output voltage.

BYPASS

OUTPUT

INPUT
