Ag Leader ParaDyme Cell Modem Booster Kit Installation User Manual
Page 31
Hardware Installation Manual
25
Optional Auxiliary Harness
10. Connect the power adapter cable connector to the Cell Booster and secure with cable ties as previously described. Check
all cable connections and secure all cables before closing the unit.

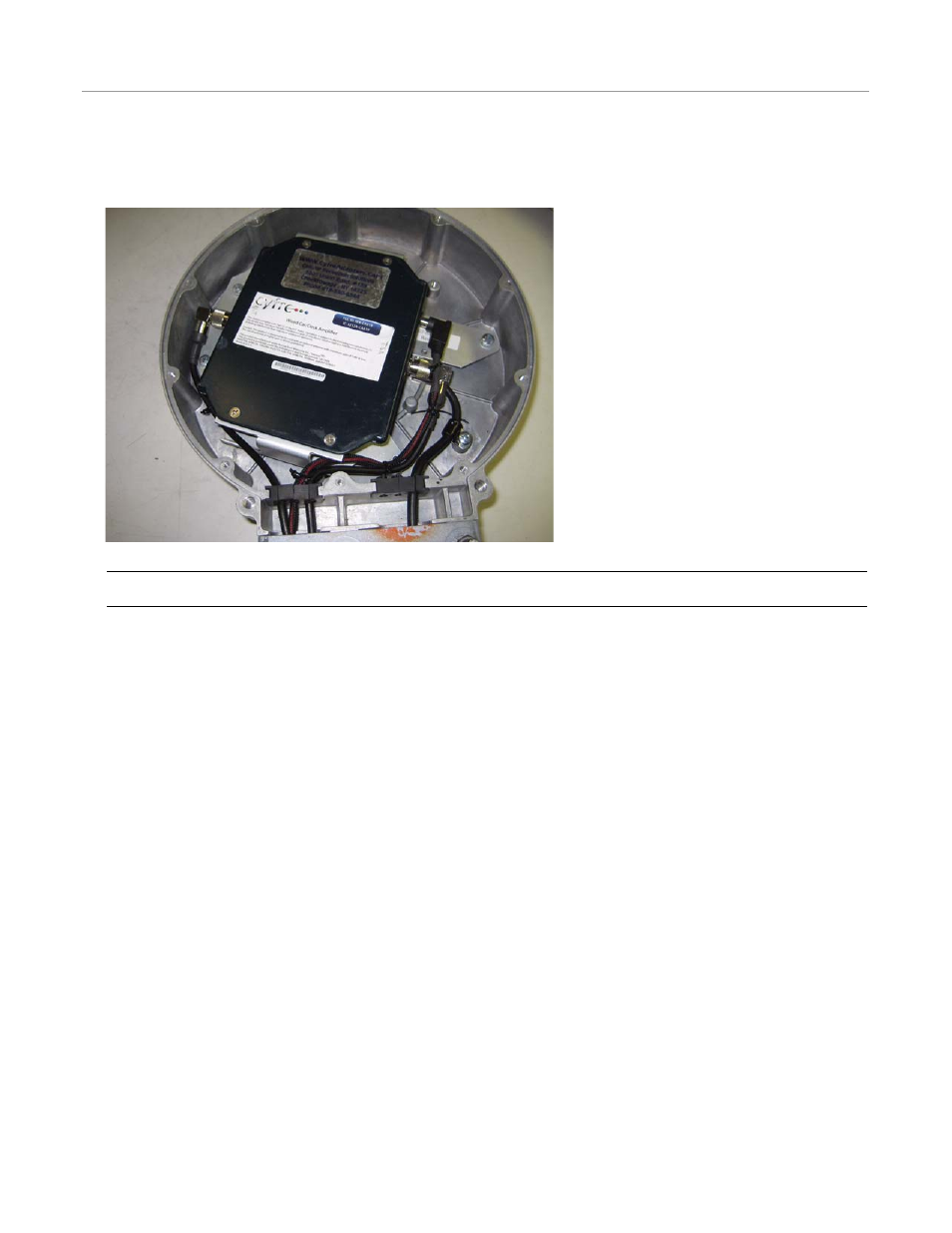

Figure 2-40 Connect Power Cable
Note: Always install a dust cap over the auxiliary connector when it is not being used.
