Ag Leader ParaDyme Cell Modem Booster Kit Installation User Manual
Page 25
Hardware Installation Manual
19
Cell Modem Booster Installation Procedure

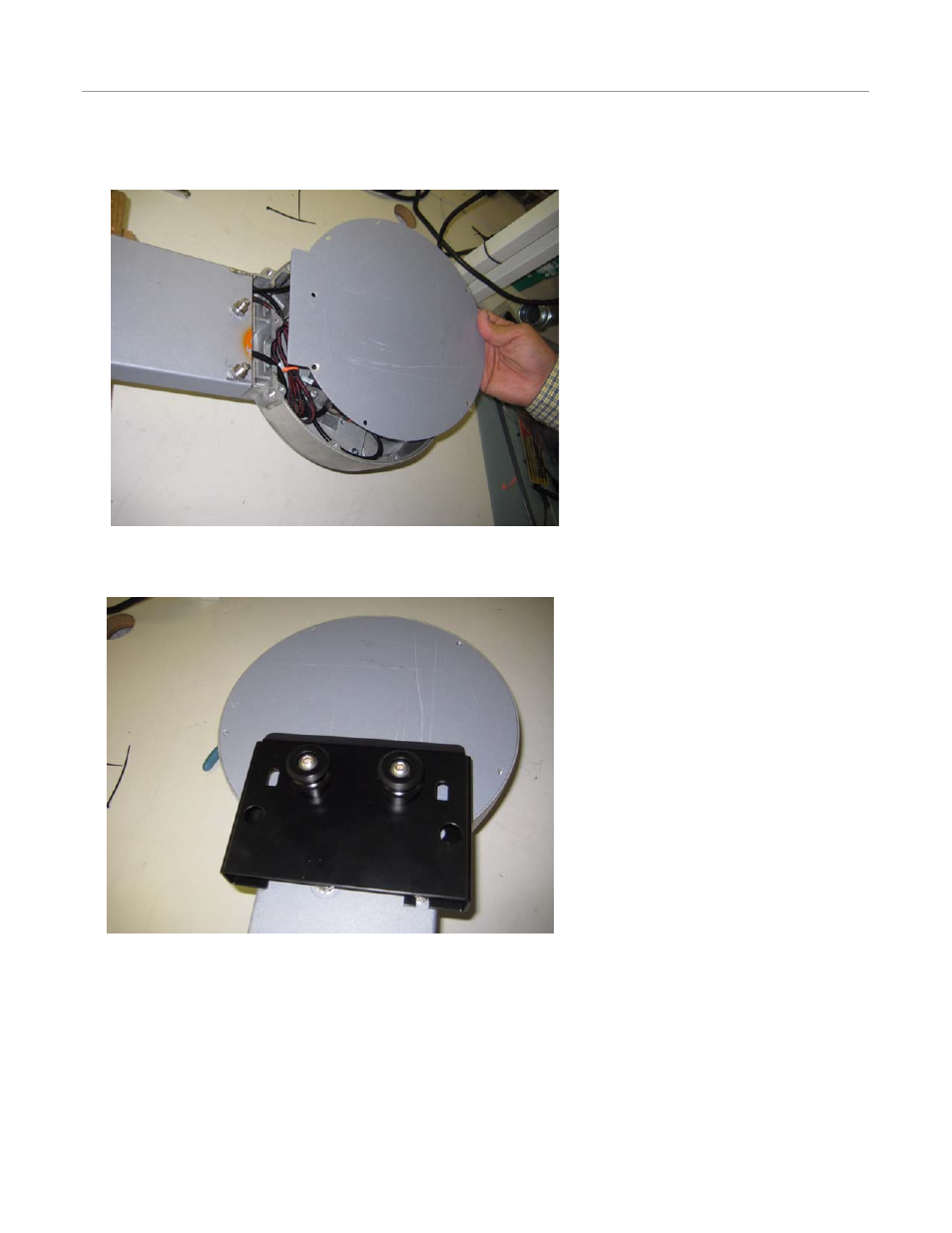

30. Confirm that all screws and cable connections are tight. Install the cover as shown and secure with the mounting screws.
Figure 2-27 Install Cover
31. Re-install the bracket as shown. Tighten the two Allen screws and nut.
Figure 2-28 Install Bracket
