Ag Leader ParaDyme Cell Modem Booster Kit Installation User Manual
Page 15
Hardware Installation Manual
9
Cell Modem Booster Installation Procedure
9. Cut the three rubber caps off the grommet using a sharp blade. This reworked grommet will be used for routing the two
coax cables and single power cable for the Cell Booster.

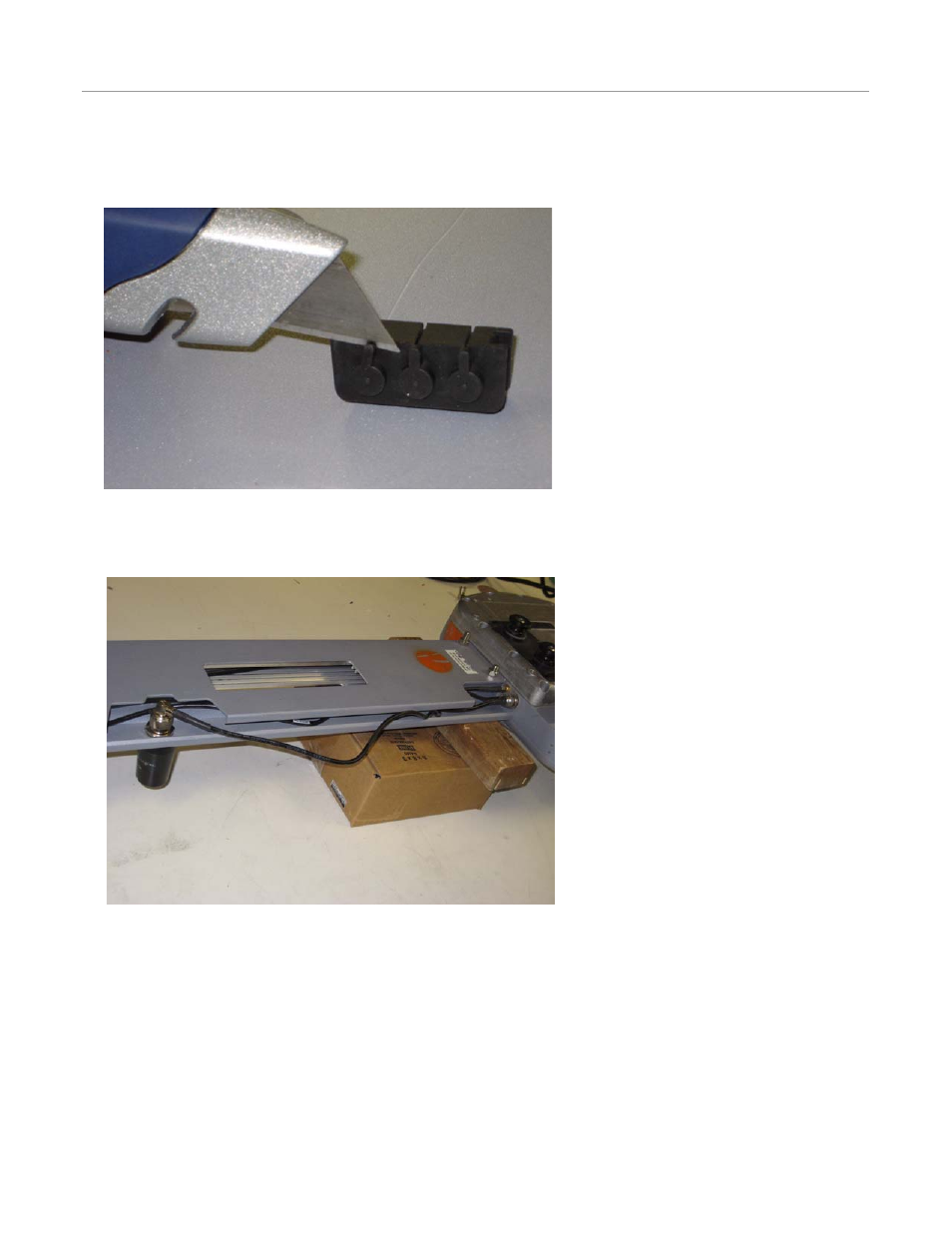

Figure 2-7
Prepare Rubber Grommet
10. Identify the black coax cable that runs from the cell phone antenna (short stubby antenna) to the side of the GPS receiver.
This cable will be totally removed.
Figure 2-8
Identify Cable
