Ag Leader ParaDyme Cell Modem Booster Kit Installation User Manual
Page 29
Hardware Installation Manual
23
Optional Auxiliary Harness

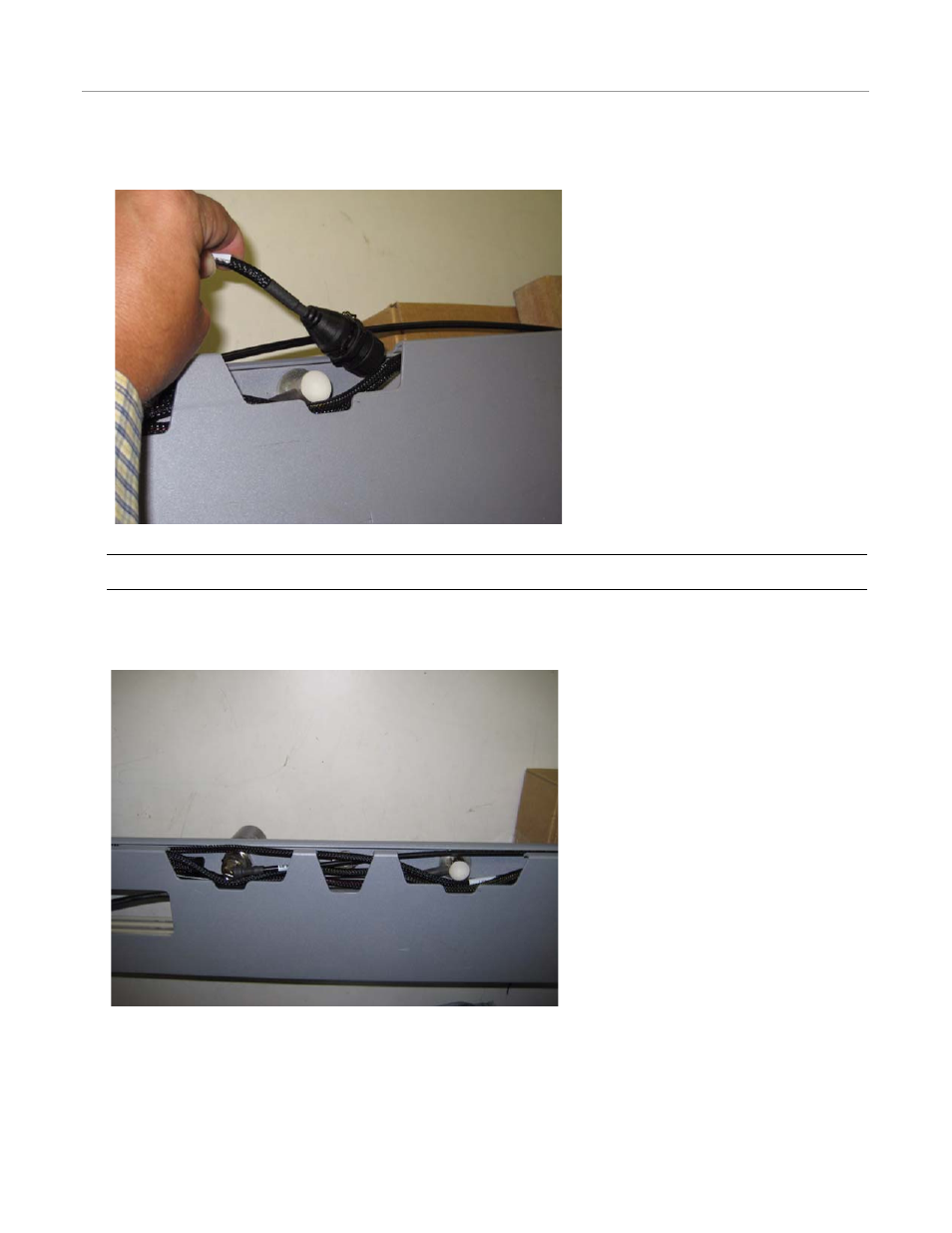

6. Feed the USB connector into the extrusion as shown. It will remain stored inside the extrusion.
Figure 2-36 Route USB Connector
Note: Confirm that the USB connector is protected by the plastic cap.
7. Route the Auxiliary Harness along the extrusion in a protected position.
Figure 2-37 Route Harness
