Ag Leader ParaDyme Cell Modem Booster Kit Installation User Manual
Page 22
16
Cell Booster Kit
Cell Modem Booster Installation Procedure

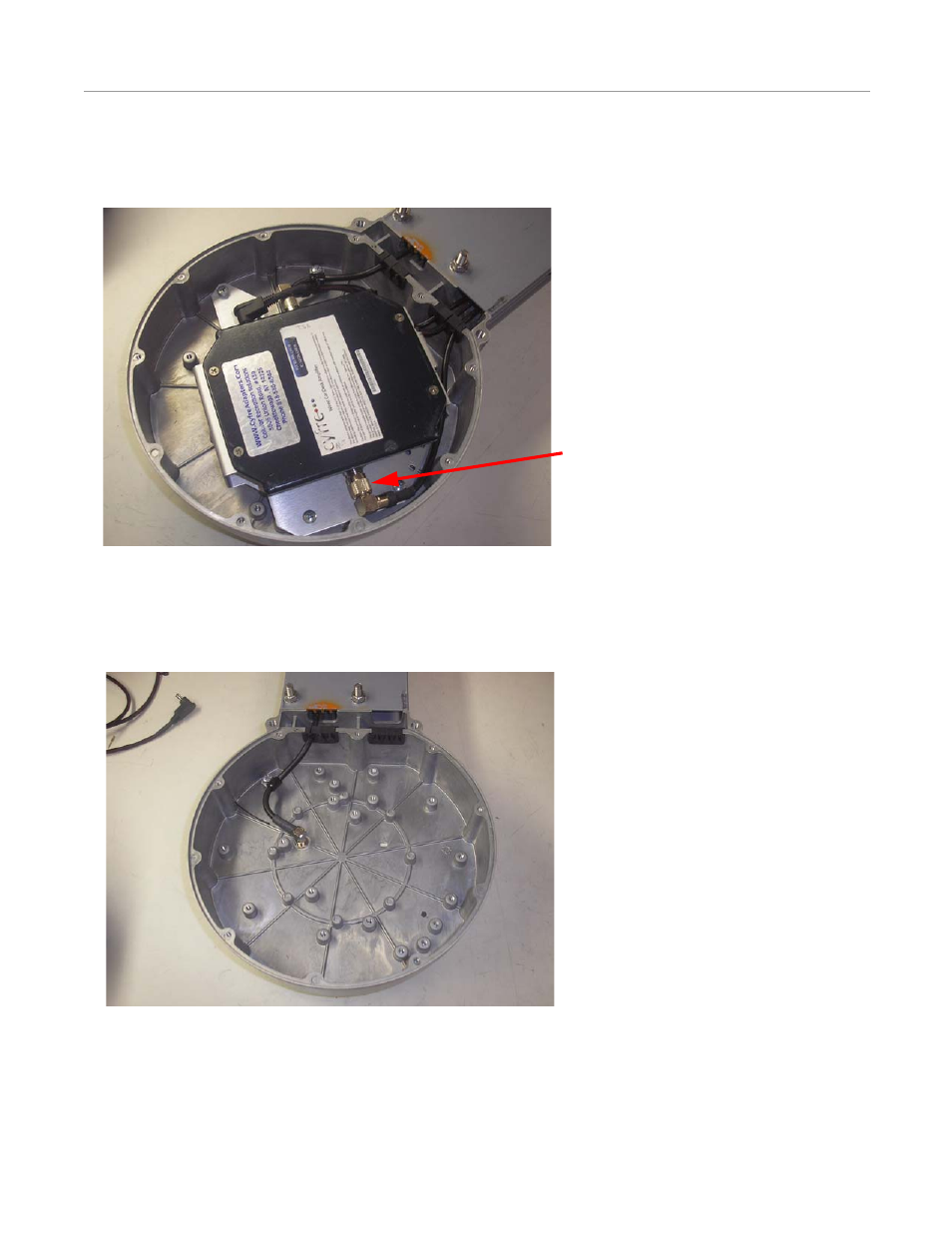

23. Connect the short coax cable from the antenna to the Cell Booster connector labeled “ANTENNA”. This cable will take
the cell phone signal from the Cell Modem Booster to the antenna.
Figure 2-21 Connect Short Coax Cable
24. The aluminum extrusion must be separated from the Cell Modem Booster compartment to allow the installation of the new
cables. While supporting and protecting the GPS antenna, remove the two long screws and separate the extrusion from the
Cell Modem Booster compartment. Reconnect the two parts and insert the screws once all the new cables have been
routed.
Figure 2-22 Remove Screws from Extrusion
Connect Here
