Ag Leader ParaDyme Cell Modem Booster Kit Installation User Manual
Page 21
Hardware Installation Manual
15
Cell Modem Booster Installation Procedure

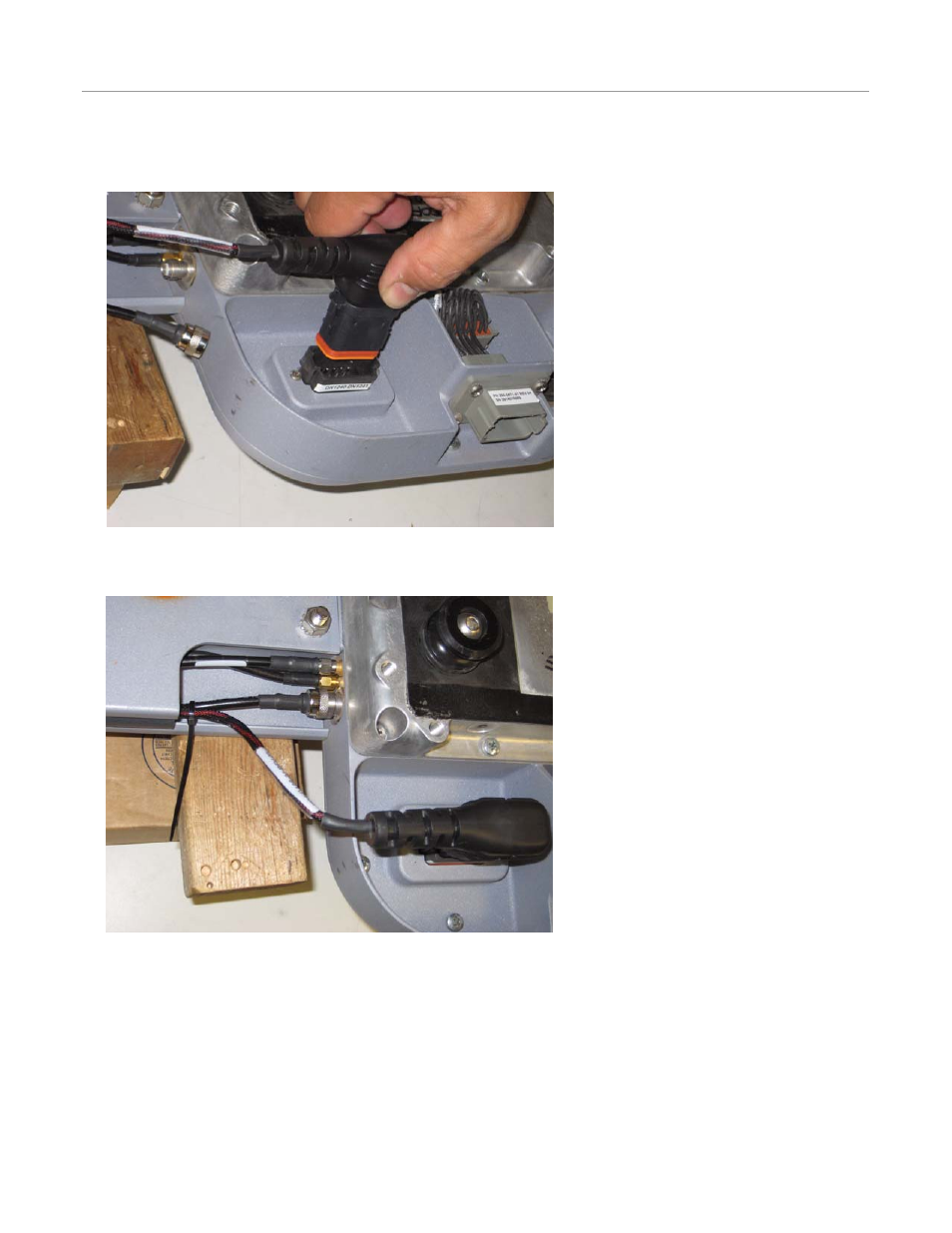

21. Connect the Cell Booster 12-pin connector from the power cable to the GPS receiver as shown.
Figure 2-19 Connect Power Cable
22. Route the power cable along the inside of the aluminum extrusion. Secure the cable against other cables using cable ties.
Figure 2-20 Route Power Cable
