24

Cell Booster Kit

Optional Auxiliary Harness

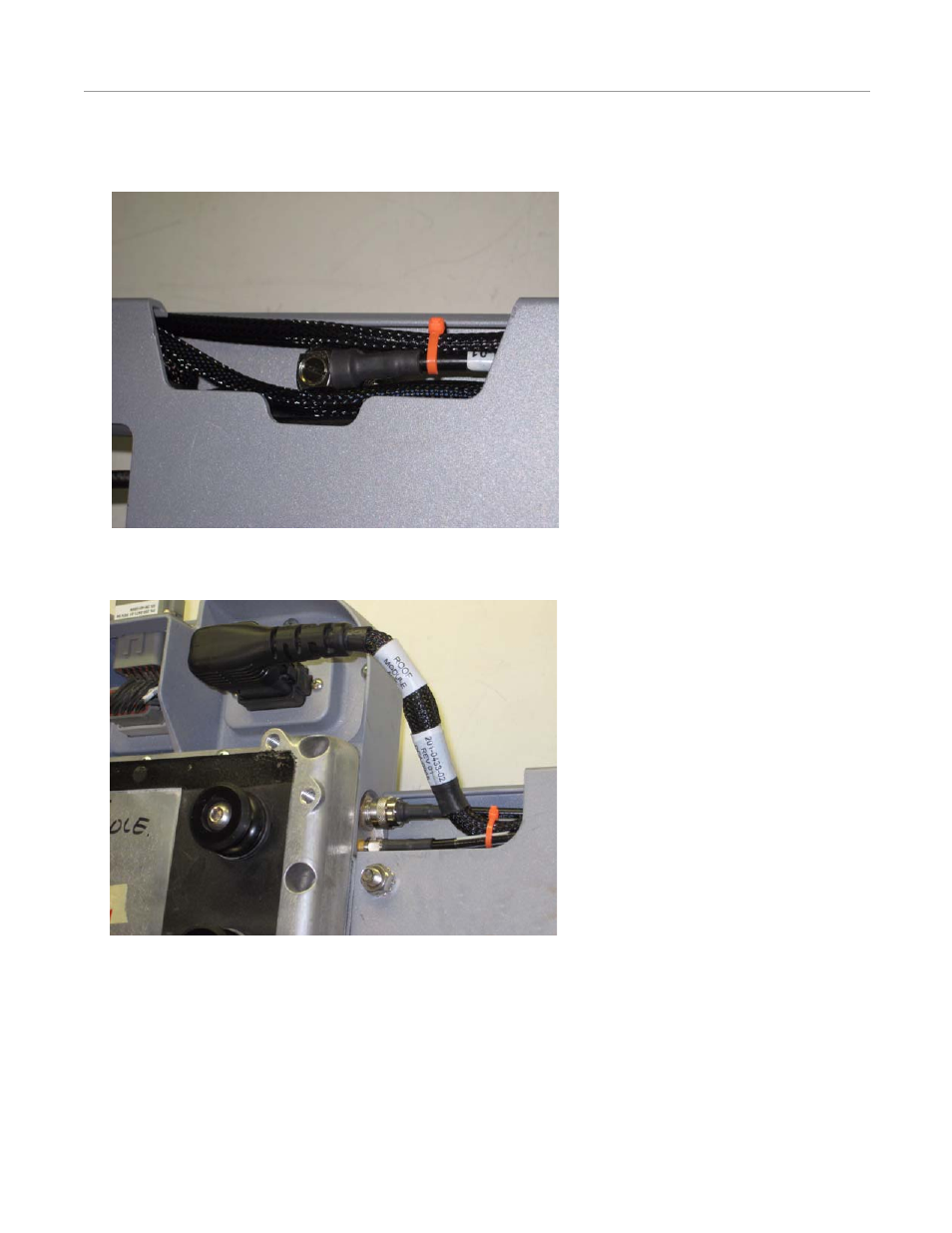

8. Secure the cables using cable ties as shown.

Figure 2-38 Secure Cables

9. Secure the Auxiliary Harness to a coax cable as shown using a cable tie.

Figure 2-39 Secure Harness
