Ag Leader ParaDyme Cell Modem Booster Kit Installation User Manual
Page 13
Hardware Installation Manual
7
Cell Modem Booster Installation Procedure

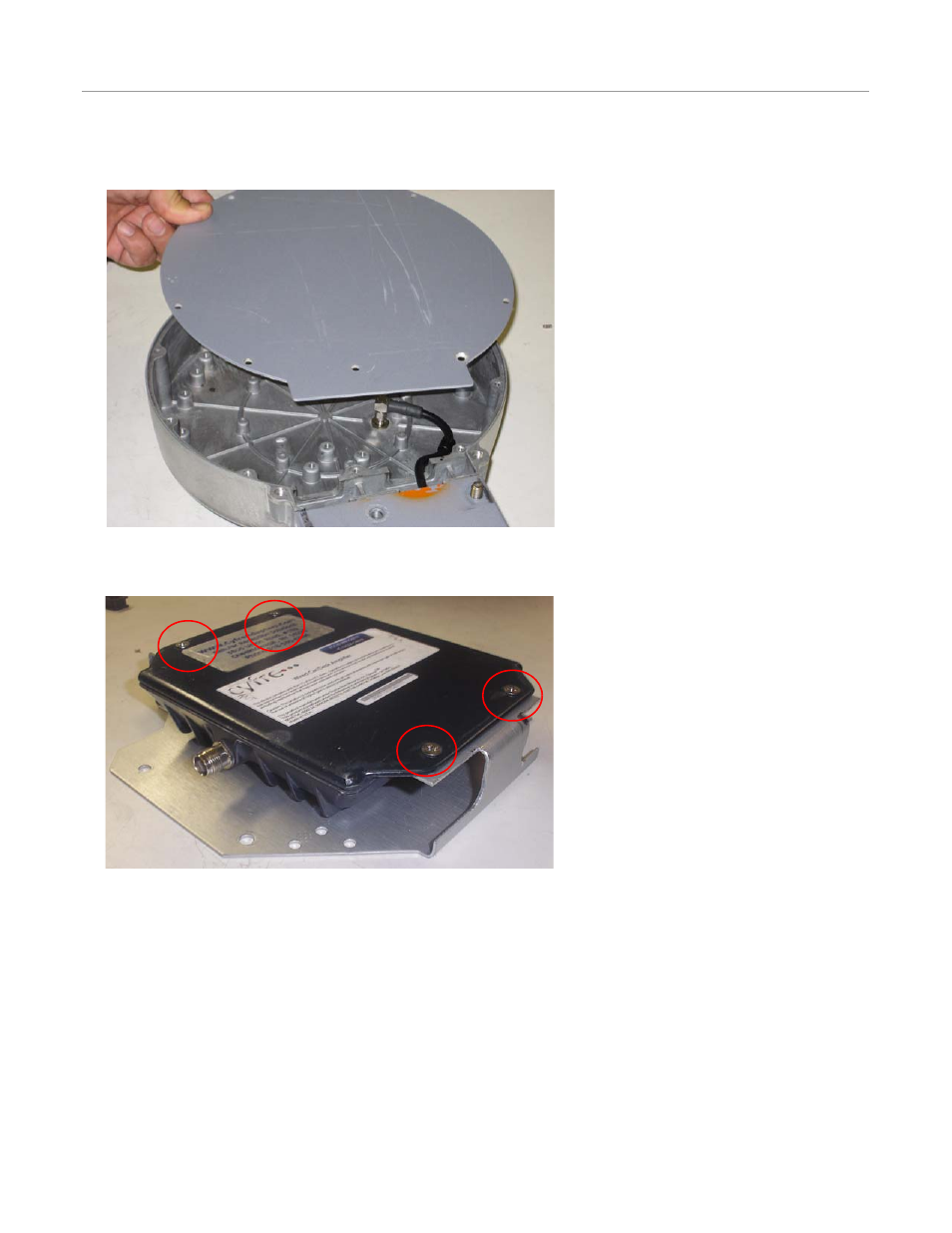

5. Remove the Phillips screws that attach the cover and remove the cover.
Figure 2-3
Remove Cover
6. Install the Cell Booster on the bracket. Secure using the four provided flat head screws and locknuts.
Figure 2-4
Install Cell Booster on Bracket
