Ag Leader ParaDyme Cell Modem Booster Kit Installation User Manual
Page 14
8
Cell Booster Kit
Cell Modem Booster Installation Procedure

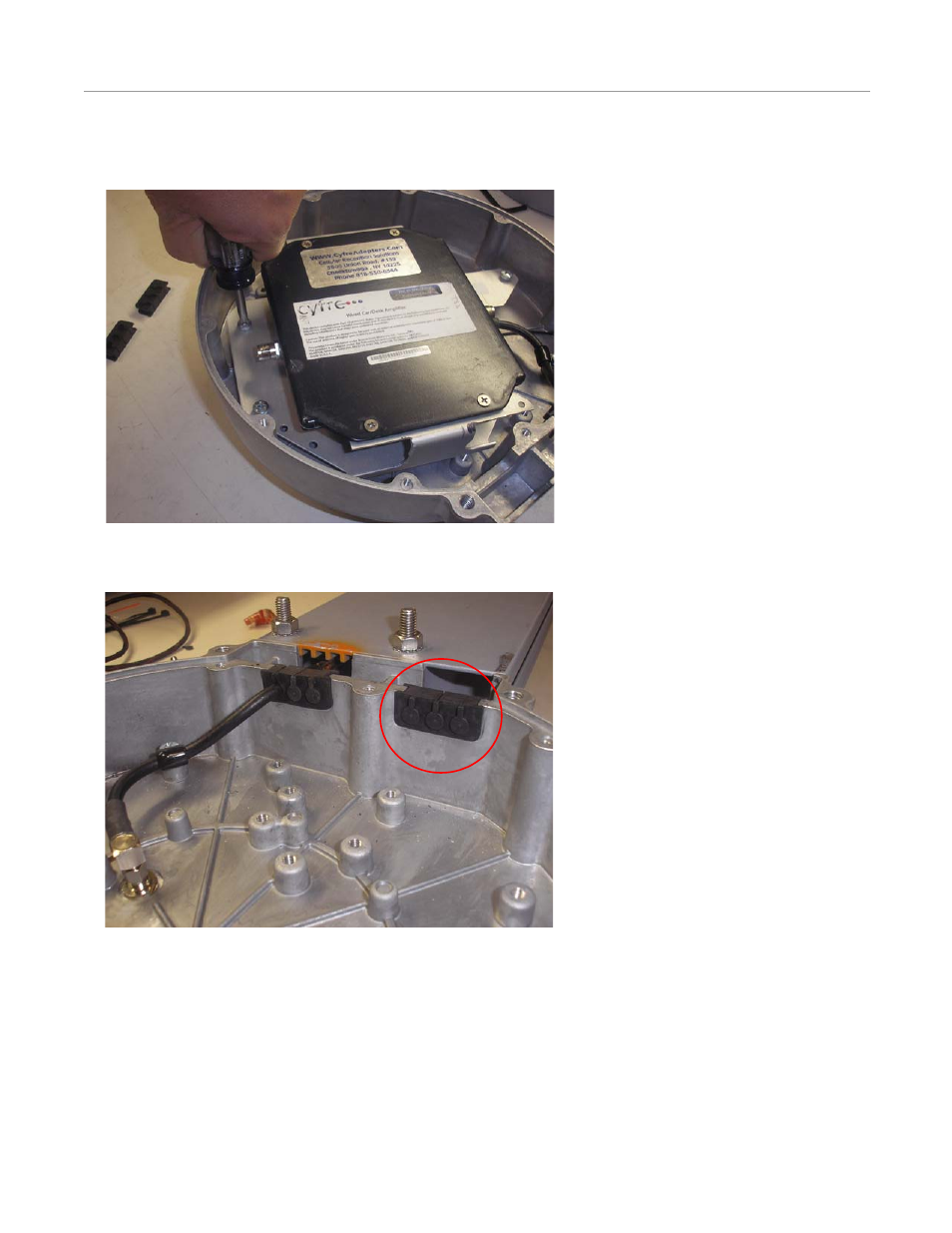

7. Install the bracket with the Cell Booster in the position shown. Secure using four M5 screws and lock washers.
Figure 2-5
Install Cell Booster and Bracket
8. Remove the unused rubber grommet that will be used to route the new Cell Booster cables.
Figure 2-6
Remove Rubber Grommet
