Ag Leader ParaDyme Cell Modem Booster Kit Installation User Manual
Page 19
Hardware Installation Manual
13
Cell Modem Booster Installation Procedure
17. Connect the long coax cable from the ParaDyme GPS receiver to the Cell Booster connector labeled “PHONE”. This cable
will take the cell phone signal from the ParaDyme GPS receiver to the Cell Booster.

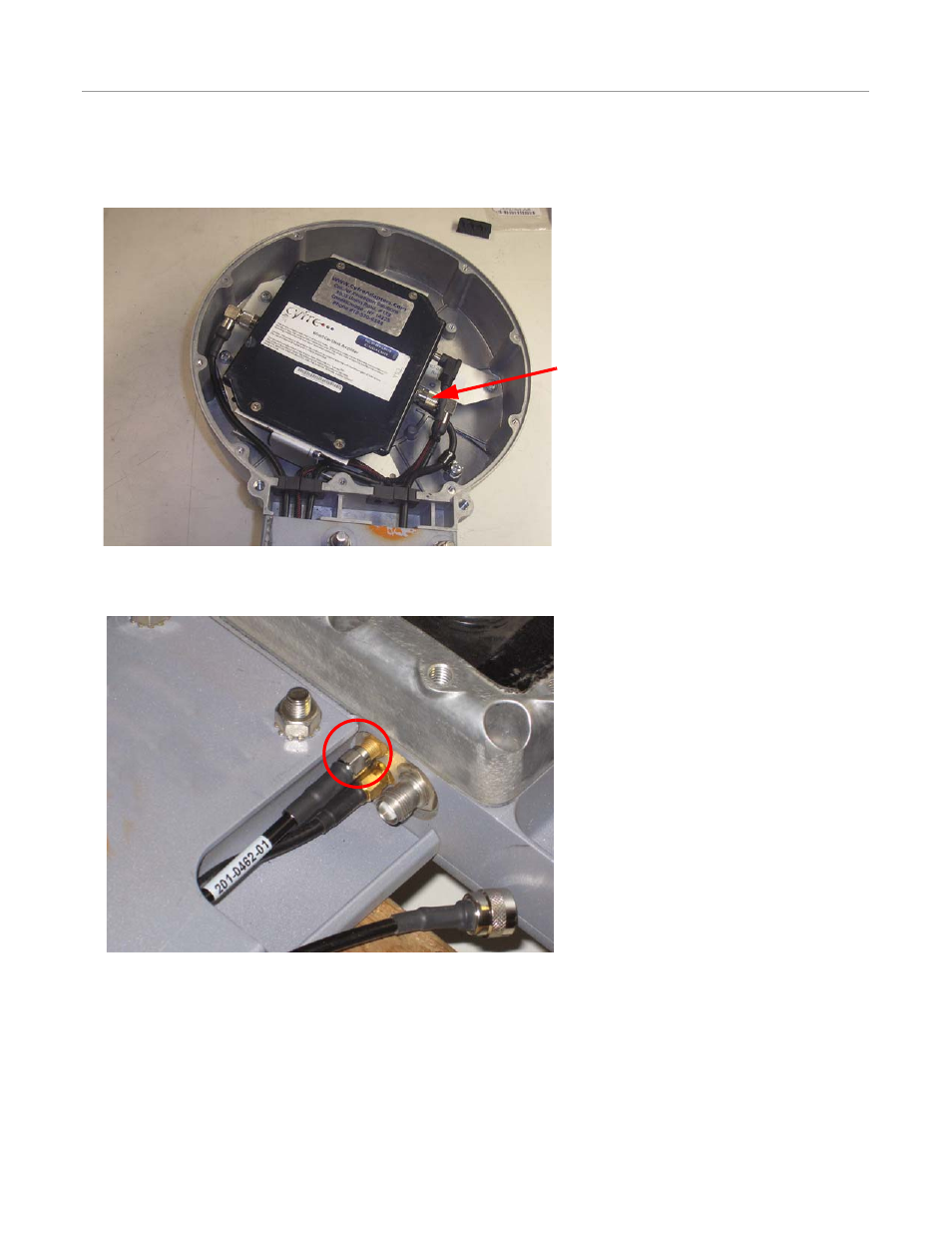

Figure 2-15 Connect Long Coax Cable
18. Connect the other end of the cable to the cell phone antenna output connector on the side of the GPS receiver.
Figure 2-16 Connect the Coax Cable
