60 front panel leds and buttons – HP StorageWorks 1000i Virtual Library System User Manual
Page 79

1
2
11
3
4
8 10
6
5 7 9
10699
1
Slim DVD-ROM
7
UID LED
2
Slot power LED
8
Power LED
3
Two USB ports
9
UID button
4
HDD activity LED
10
Power button
5
LED (not used)
11
HDD bays (0–3)
6
NICs LEDs

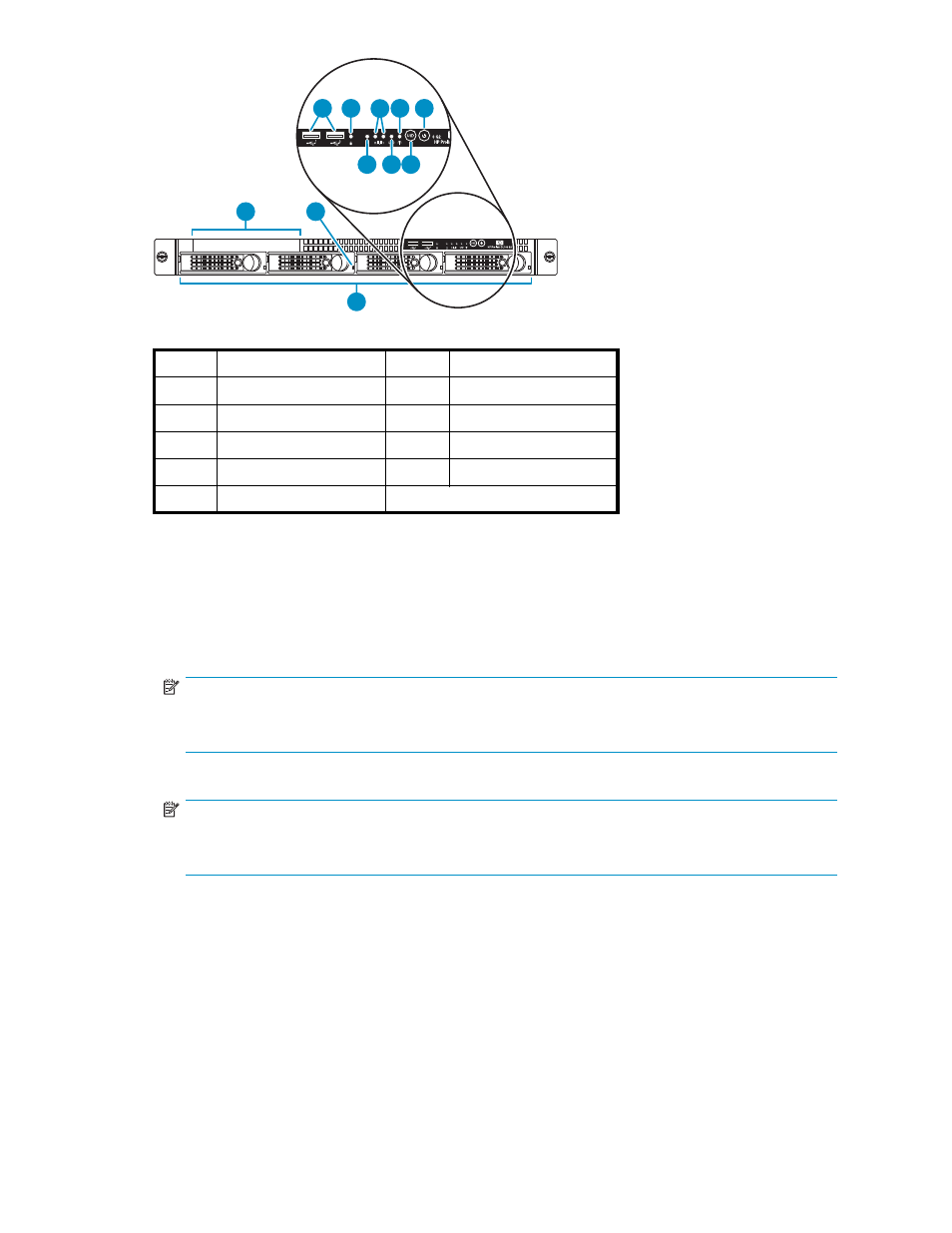

Figure 60 Front panel LEDs and buttons
When you have a problem with one of your drives, diagnose the problem as follows:
1.
Attach a keyboard and monitor to the appliance.
2.
Insert the HP StorageWorks VLS Diagnostic/Quick Restore CD into the CD-ROM drive on the
VLS1000i array.
3.
Reboot the array and wait for the system to prompt you.
NOTE:
If the diagnostics or disaster recovery process stops and a c:> prompt displays, or to refresh the
status of the disaster recovery process, type diag, then press Enter.
4.
Follow the instructions that display on the monitor.
NOTE:
The Diagnostic/Quick Restore CD will warn you of data loss only when data loss can or will occur;
otherwise, no mention of data loss displays.
Possible error messages and their meanings or corrective actions are as follows:
HP StorageWorks 1000i Virtual Library System
79
