Chapter 4 Installing Accessory Boards
18
•
The ISA Board Slot, which accepts a single ISA board. This slot is shared
with PCI slot 1. Either slot can be occupied, but not both.
•
The two SCSI connectors, A and B, which are separate channels that
control the disk arrays in the right (standard) and left (optional) hot-swap
mass storage cages, respectively. The base configuration of the NetServer
has one hot-swap mass storage cage on the right side, controlled by a
connection to SCSI connector A. By default, this disk array is controlled
by the integrated HP NetRAID controller.
I/0 Memory SE SCSI
SCSI B
SCSI A
Remote
Management
PCI Board
Slots
ISA Board Slot

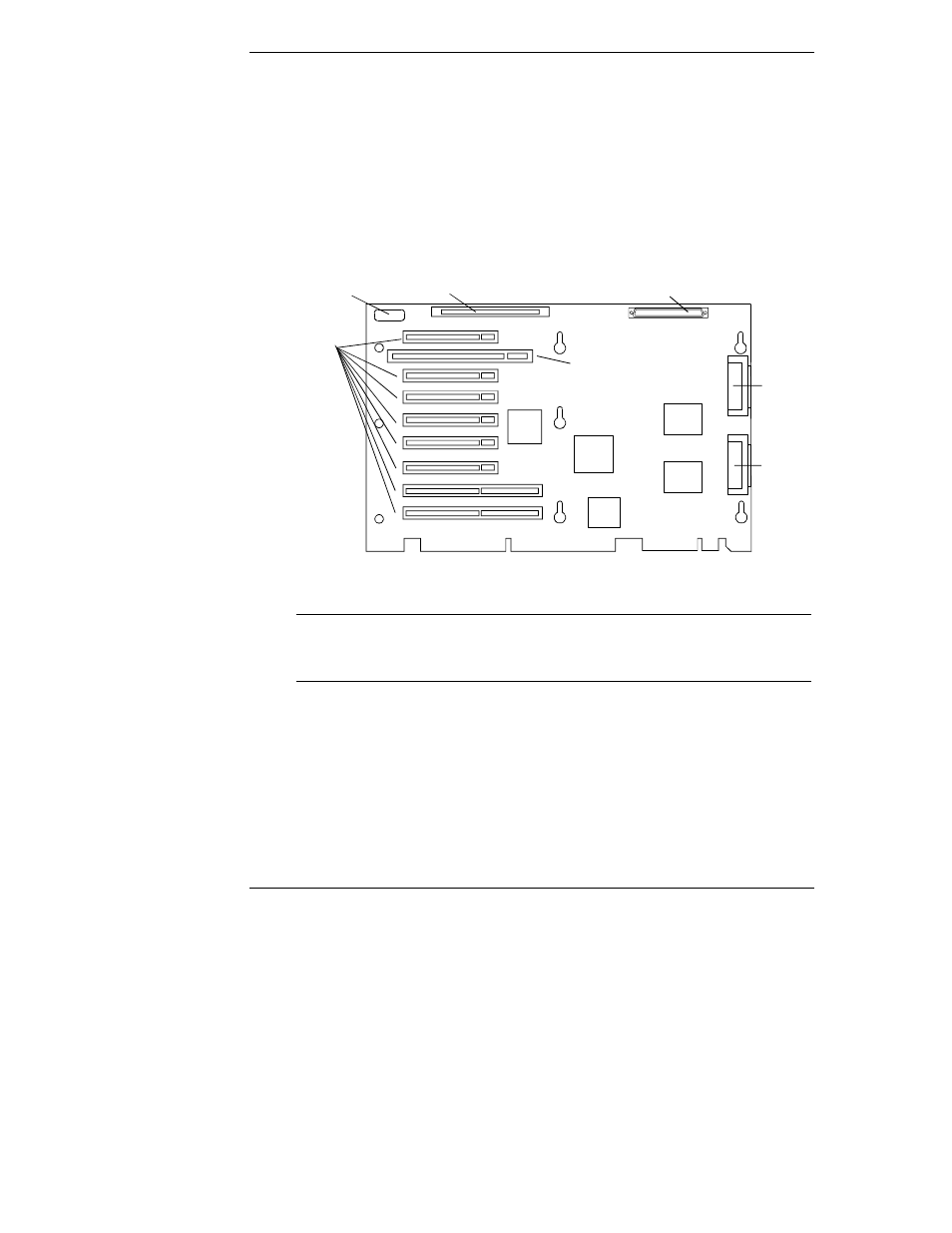

Figure 4-2. I/O Board With Devices and Bus Structure
NOTE For a list of boards HP has tested with the NetServer, see the
Help topic "Tested Parts List" on the HP NetServer Navigator
CD-ROM.
Installing Accessory Boards
Remove the NetServer's cover: (See Chapter 3, "Removing and Replacing
Covers.")
To install accessory boards:
1. Read the documentation included with each accessory board. Follow any
special instructions and installation recommendations. Some boards have
